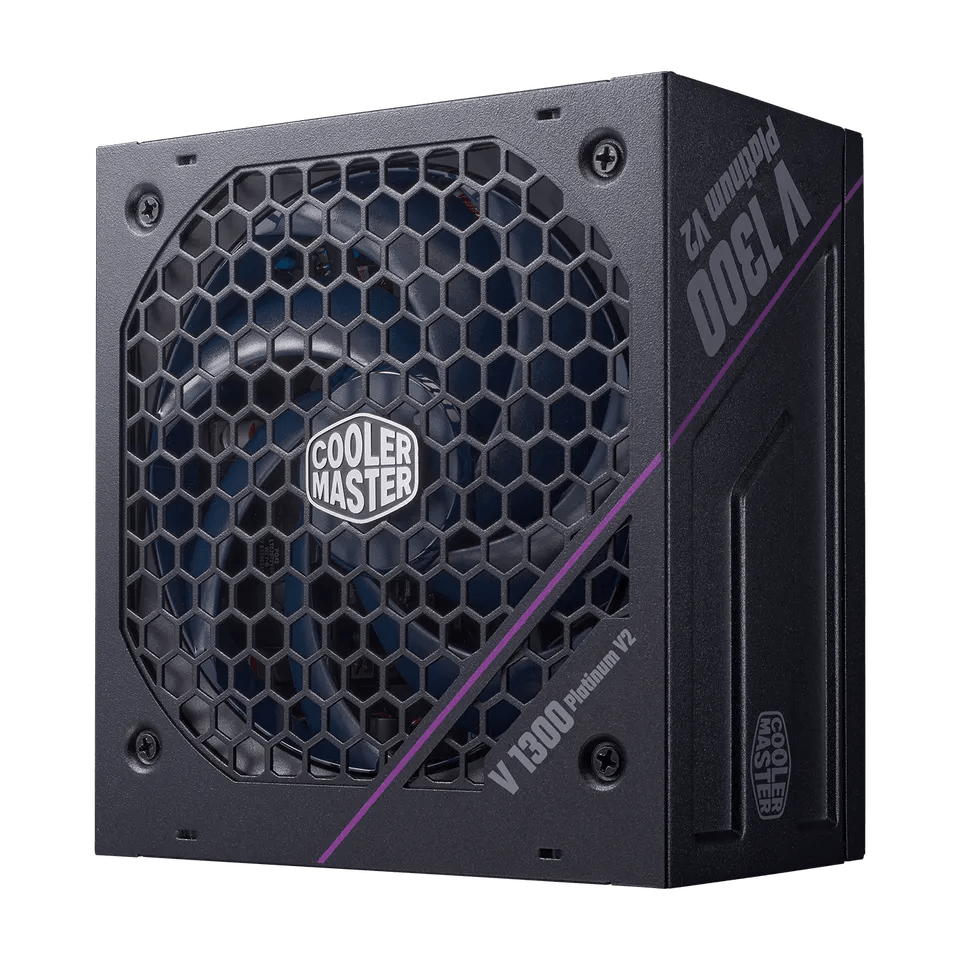

Cooler Master V Platinum 1300 V2 Fully Modular ATX 3.1 80 Plus Platinum Power Supply – High‑Performance 1300W PSU

Efficient and Stable Power with Cooler Master V Platinum 1300 V2 Fully Modular Power Supply

The Cooler Master V Platinum 1300 V2 Fully Modular ATX 3.1 Power Supply delivers exceptional performance and high efficiency for gaming rigs, workstations, and high‑end systems. Built with 80 Plus Platinum certification, this 1300W PSU achieves up to ≥ 92% efficiency at typical load, reducing wasted energy and lowering heat output while providing stable power to demanding components.

Fully Modular Cabling and Quiet Cooling Design

This PSU features a fully modular cable system that allows you to connect only the cables you need, simplifying cable management while improving airflow and aesthetics inside your PC case. The ultra‑quiet Mobius fan with fluid dynamic bearing and advanced cooling design ensures efficient heat dissipation and silent operation, even under heavy load.

ATX 3.1 Support and Next‑Gen Compatibility

Compliant with ATX 3.1 specifications, the Cooler Master V Platinum 1300 V2 provides a durable 90° 12V‑2×6 connector capable of delivering up to 600 W to modern GPUs, ensuring compatibility with the latest graphics hardware and next‑generation systems. With Active Power Factor Correction (PFC), this PSU maintains consistent voltage regulation and reduces losses.

Built‑In Safety Protections for Reliable Operation

The V Platinum 1300 V2 includes a suite of protection features such as Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). These safeguards protect both the PSU and connected components under varying conditions and ensure long‑term reliability.

SPECIFICATIONS

• Model: Cooler Master V Platinum 1300 V2 Fully Modular ATX 3.1 Power Supply
• Form Factor: ATX 12V Version 3.1 compliant
• Wattage: 1300 Watts continuous output
• 80 PLUS Certification: 80 PLUS Platinum, ≥ 92% efficiency typical
• Cooling: 135 mm Fluid Dynamic Bearing (Mobius) fan
• Fan Speed: ~2400 ±10% RPM demand‑based
• PFC: Active Power Factor Correction
• Input Voltage: 100 ‑ 240 V AC, 50 ‑ 60 Hz
• Operating Temperature: 0 ‑ 50 °C
• MTBF: >100,000 hours
• Protections: OVP, UVP, OCP, OPP, SCP, OTP, Surge & Inrush Protection

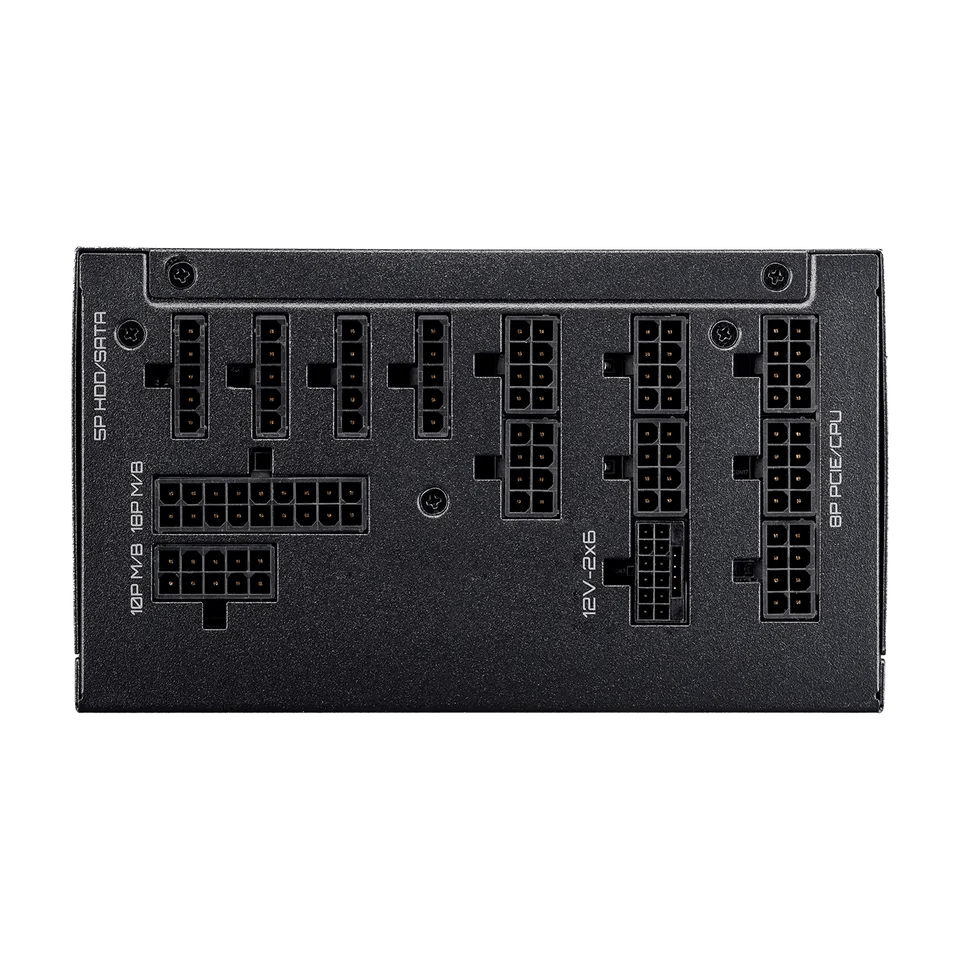

• Connectors:
• 1 × ATX 24‑pin main power
• 1 × EPS 4+4 pin
• 1 × EPS 8‑pin
• 5 × PCI‑E 6+2 pin
• 1 × 12V‑2×6 PCIe 5.0 connector
• 16 × SATA power
• 4 × Peripheral Molex
• Dimensions: 160 × 150 × 86 mm
• Cable Type: Fully modular flat black cables
