DeepCool PK750D PSU – 750W 80 Plus Bronze Power Supply

DeepCool PK750D PSU – Reliable 750W Bronze Power for Everyday Systems

The DeepCool PK750D PSU delivers dependable power and efficient performance for desktop PCs, gaming builds, and productivity systems. Certified with 80 Plus Bronze, this power supply achieves around ≥85% efficiency under typical load, helping minimize energy waste and heat generation while providing stable voltage to critical components.

Efficient Design and Stable Voltage Regulation

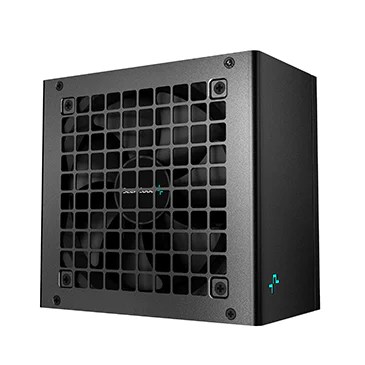

Built with a 120 mm Hypro bearing fan, the PK750D PSU provides smooth and quiet cooling. Its Active Power Factor Correction (PFC) combined with DC‑to‑DC topology tightens voltage regulation on the +3.3 V and +5 V rails, improving compatibility with modern hardware and delivering consistent performance across varied workloads.

Compatibility and Protection Features

The non‑modular design includes a full suite of fixed cables for standard desktop builds. Multiple protection circuits such as Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Over Current Protection (OCP), and Under Voltage Protection (UVP) help safeguard connected components against common electrical faults.

Durable Operation Across Conditions

Designed to operate in ambient temperatures up to 40 °C and high altitudes up to 5000 m, this PSU meets ErP Lot 6 efficiency standards for reduced standby power consumption. Its durable construction and Taiwan‑made capacitors contribute to long‑term reliability.

SPECIFICATIONS

• Model: DeepCool PK750D 750W 80 Plus Bronze Power Supply
• Form Factor: ATX12V V2.4
• Wattage: 750 W continuous output
• 80 PLUS Certification: Bronze (~≥85% typical efficiency)
• Cooling Fan: 120 mm Hypro bearing fan
• PFC: Active Power Factor Correction + DC‑to‑DC
• Capacitors: Taiwan capacitors
• Power Good Signal: 100‑150 ms
• Hold‑Up Time: ≥16 ms (80% load)
• Protections: SCP, OPP, OTP, OVP, OCP, UVP
• Operating Temperature: 0–40 °C
• Regulatory: CB/CE/FCC/UKCA/EAC/BIS, ErP Lot 6 compliant
• MTBF: ~100,000 hours
• Connectors:
• 1 × 24‑pin ATX main power
• 2 × EPS 8‑pin (4+4) CPU power
• 2 × PCIe 6+2‑pin
• 4 × SATA power
• 4 × Peripheral 4‑pin Molex
• Dimensions: ~150 × 140 × 86 mm
