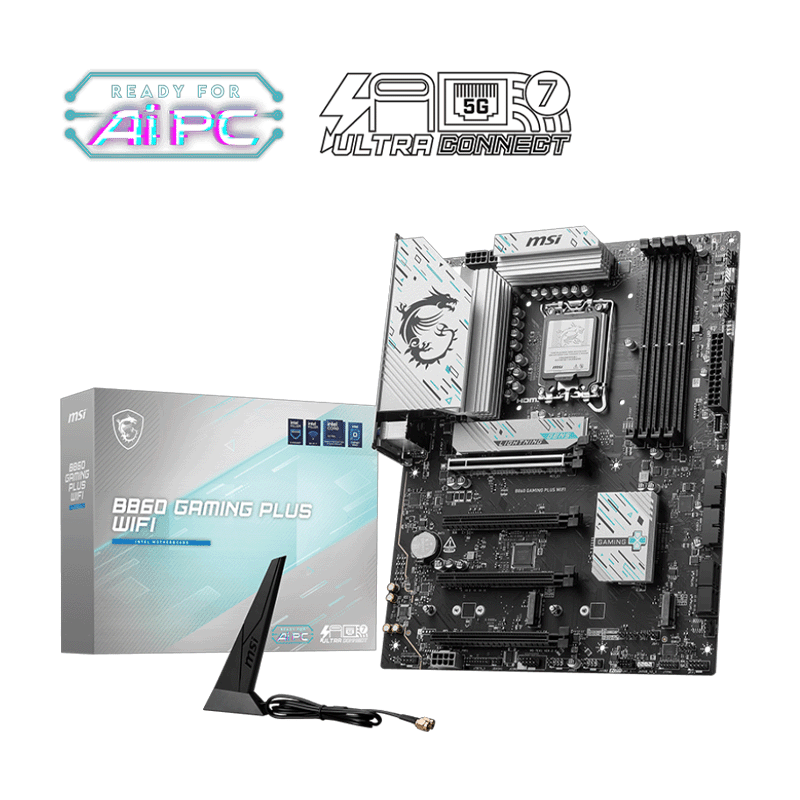

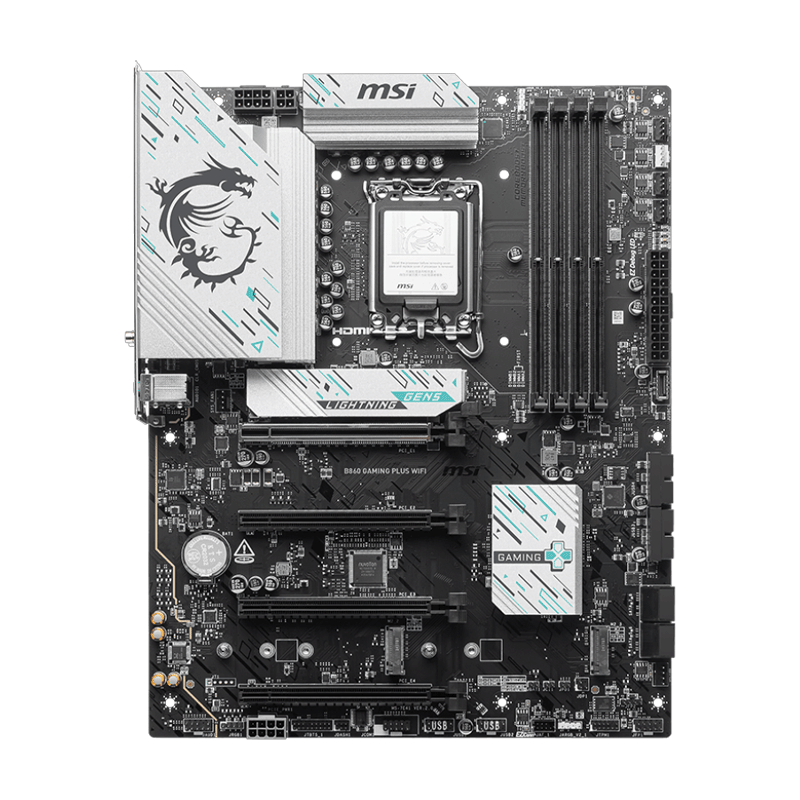

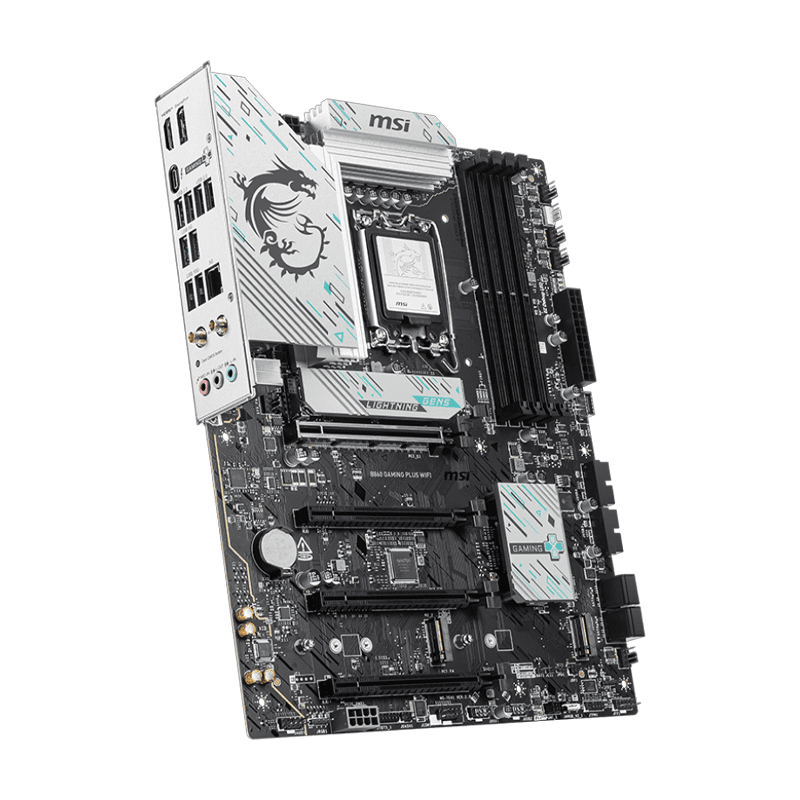

MSI B860 GAMING PLUS WIFI Intel B860 ATX Motherboard – High‑Performance Gaming Board

The MSI B860 GAMING PLUS WIFI motherboard offers a powerful foundation for modern gaming and productivity builds. Built on the Intel B860 chipset with an LGA 1851 socket, this board supports the latest Intel® Core™ Ultra Series processors to deliver responsive and reliable performance across demanding tasks such as gaming, content creation, and multitasking.

Advanced Connectivity and Networking

This motherboard includes integrated Intel Killer™ Wi‑Fi 7 and a 5Gbps LAN controller to ensure fast and stable networking performance. Thunderbolt 4 support adds high‑speed data transfer and display capabilities, making it ideal for high‑resolution gaming and professional workflows.

Memory and Expansion for High‑Speed Computing

With support for up to 256 GB of DDR5 memory and multiple PCIe slots including a PCIe 5.0 x16 slot, the MSI B860 GAMING PLUS WIFI enables high bandwidth for graphics cards and storage devices. Triple M.2 connectors increase storage flexibility and performance, helping reduce load times for games and applications.

This motherboard blends performance, connectivity, and expandability to provide a robust platform for gaming PCs and productivity systems.

• SPECIFICATIONS
  General
• Chipset: Intel B860
• CPU Support: Intel® Core™ Ultra Series Processors (LGA 1851)
• Form Factor: ATX
• Memory
• 4 × DDR5 UDIMM Slots
• Maximum Memory: Up to 256 GB
• Supported Speeds: DDR5‑8800+ MT/s (OC) / 6400‑4800 MT/s (JEDEC)
• Expansion & Storage
• PCIe 5.0 x16 Slot
• Additional PCIe 4.0 and PCIe 4.0 x4 Slots
• M.2 Slots: 3 × (PCIe 5.0 x4 & PCIe 4.0 x4 / x2)
• SATA III Ports: 4
• RAID Support: RAID 0, 1, 5, 10
• Networking
• LAN: Intel® Killer™ E5000 5Gbps
• Wireless: Intel® Killer™ BE1750x Wi‑Fi 7 with Bluetooth® 5.4
• Rear I/O
• Thunderbolt 4 Port (Type‑C)
• USB 10Gbps & USB 5Gbps Ports
• HDMI™ 2.1, DisplayPort 1.4
• USB 2.0 Ports
• Audio: 7.1‑Channel High‑Definition Audio
