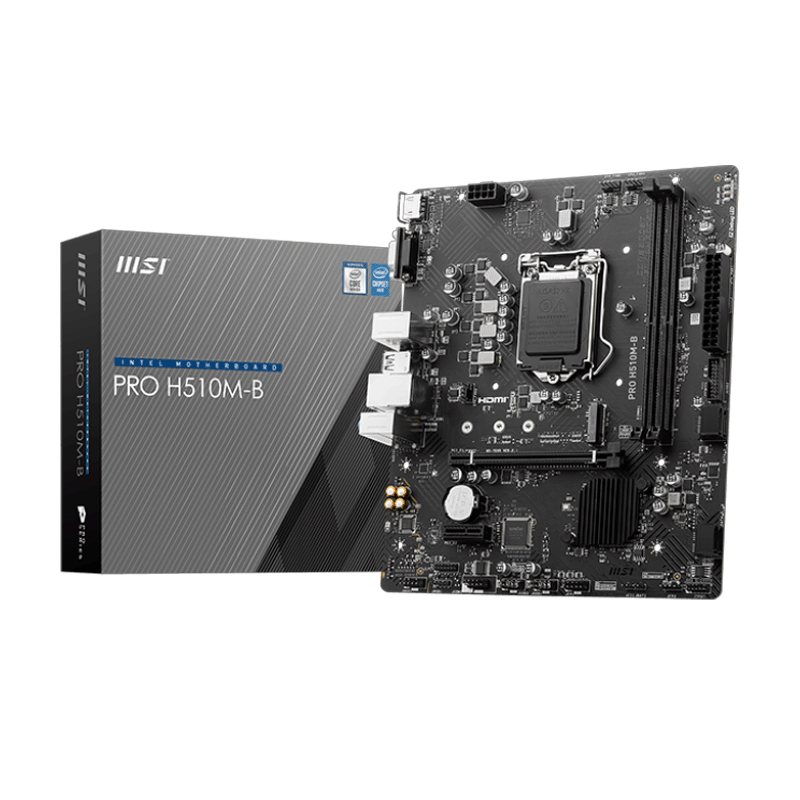

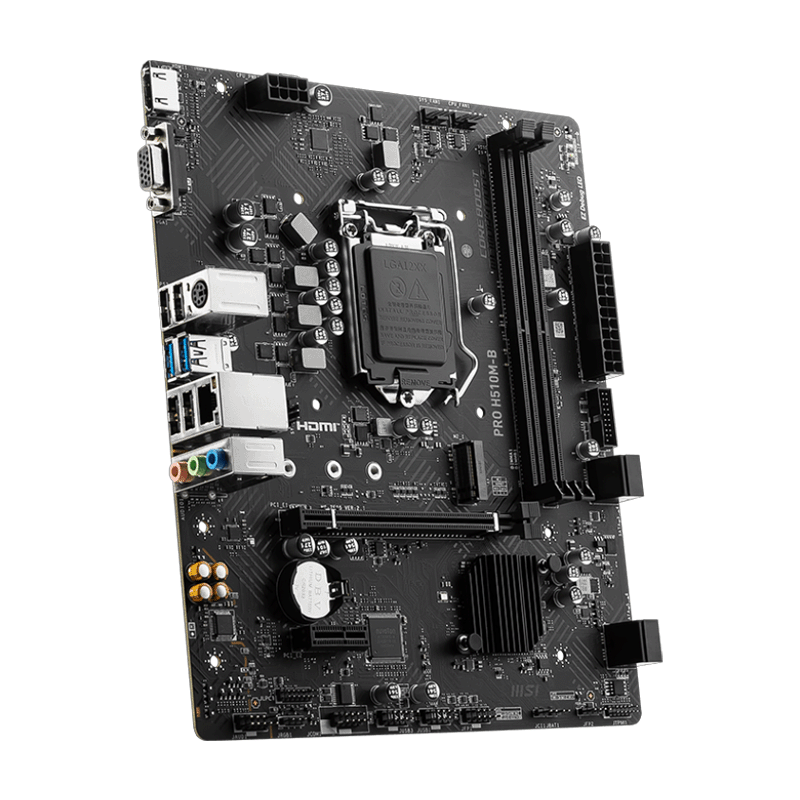

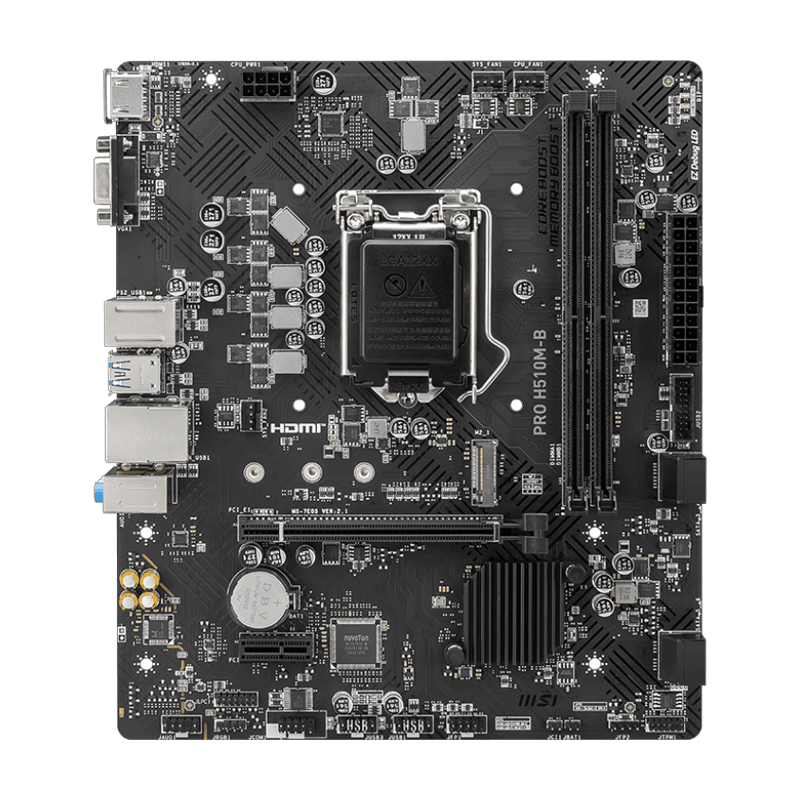

MSI PRO H510M‑B D4 Intel H510 Micro‑ATX Motherboard – Reliable Entry‑Level LGA1200 Board

The MSI PRO H510M‑B D4 motherboard provides a dependable foundation for everyday computing, business PCs, and entry‑level gaming systems. Built on the Intel H510 chipset with an LGA1200 socket, this Micro‑ATX board supports 10th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. It delivers consistent performance and productivity with dual‑channel DDR4 memory support up to 64 GB at 2933 MHz.

Balanced Connectivity and Expandability

This motherboard is equipped with a PCIe 4.0 x16 slot for modern graphics cards and an M.2 slot that supports PCIe 3.0 x4 or SATA drives, offering flexible storage options for both SSDs and traditional drives. Four SATA 6 Gb/s ports further enhance your storage capabilities.

Everyday Productivity Performance

With integrated HDMI and VGA video outputs, Gigabit Ethernet, and a robust USB configuration, the MSI PRO H510M‑B D4 is ideal for office work, web browsing, multimedia playback, and light gaming. The board’s efficient layout and Core Boost technology support stable power delivery for reliable system performance.

• SPECIFICATIONS
  General
• Chipset: Intel H510
• CPU Support: 10th Gen Intel® Core™, Pentium® Gold, Celeron® (LGA1200)
• Form Factor: Micro‑ATX (mATX)
• Memory
• 2 × DDR4 DIMM Slots
• Maximum Memory: 64 GB
• Supported Speeds: DDR4‑2933/2666/2400/2133 MHz
• Dual‑Channel Memory Architecture
• Expansion & Storage
• PCIe 4.0 x16 Slot (Primary)
• 1 × PCIe 3.0 x1 Slot
• M.2 Socket (PCIe 3.0 x4 / SATA)
• SATA III Ports: 4 × 6 Gb/s
• Networking
• LAN: Realtek® Gigabit Ethernet
• Rear I/O
• HDMI™ 1.4 (up to 4K @ 30 Hz)
• VGA (Legacy)
• USB 3.2 Gen1 Ports
• USB 2.0 Ports
• Audio
• HD Audio (7.1) with Realtek® Codec
