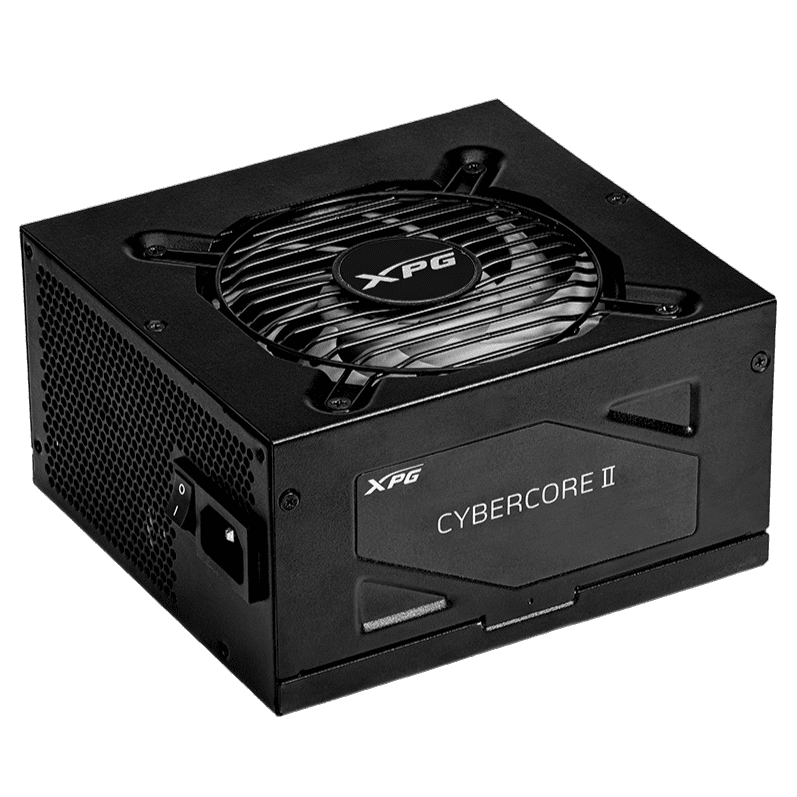

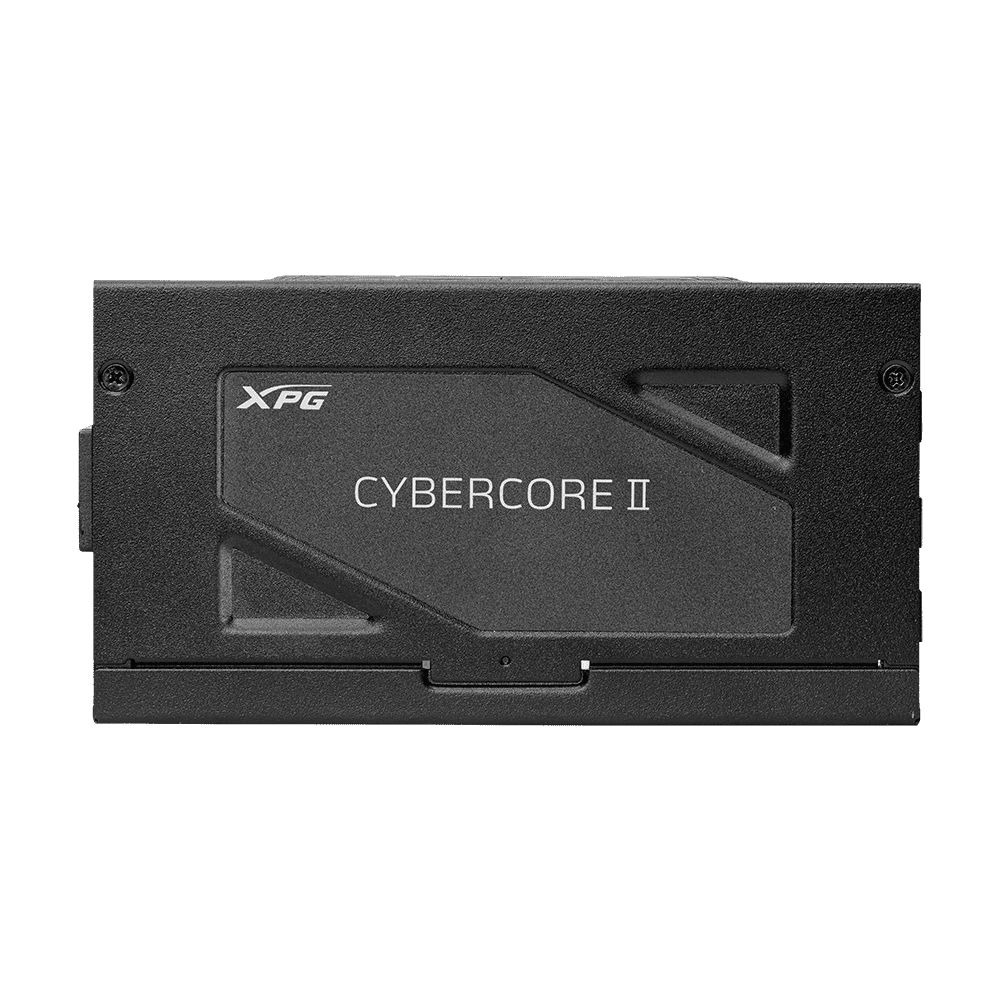

XPG Cybercore II 1300W 80 Plus Platinum Fully Modular Power Supply – High‑Efficiency ATX 3.1 PSU

XPG Cybercore II 1300W 80 Plus Platinum Fully Modular Power Supply – Premium Efficiency for High‑Demand Systems

The XPG Cybercore II 1300W 80 Plus Platinum Fully Modular Power Supply delivers strong, reliable power and high efficiency for gaming PCs, workstations, and enthusiast builds. With 80 Plus Platinum certification, this PSU sustains excellent efficiency under load, reducing energy waste and heat for smoother, quieter performance.

Fully Modular Design and ATX 3.1 Compatibility

Designed to meet ATX 3.0 and ATX 3.1 standards, the XPG Cybercore II PSU supports current and next‑generation components with a fully modular cabling system that allows clean cable management and optimized airflow. This power supply also includes a high‑powered 12VHPWR (12+4) connector for modern GPUs without adapters.

Quiet Cooling and Stable Power

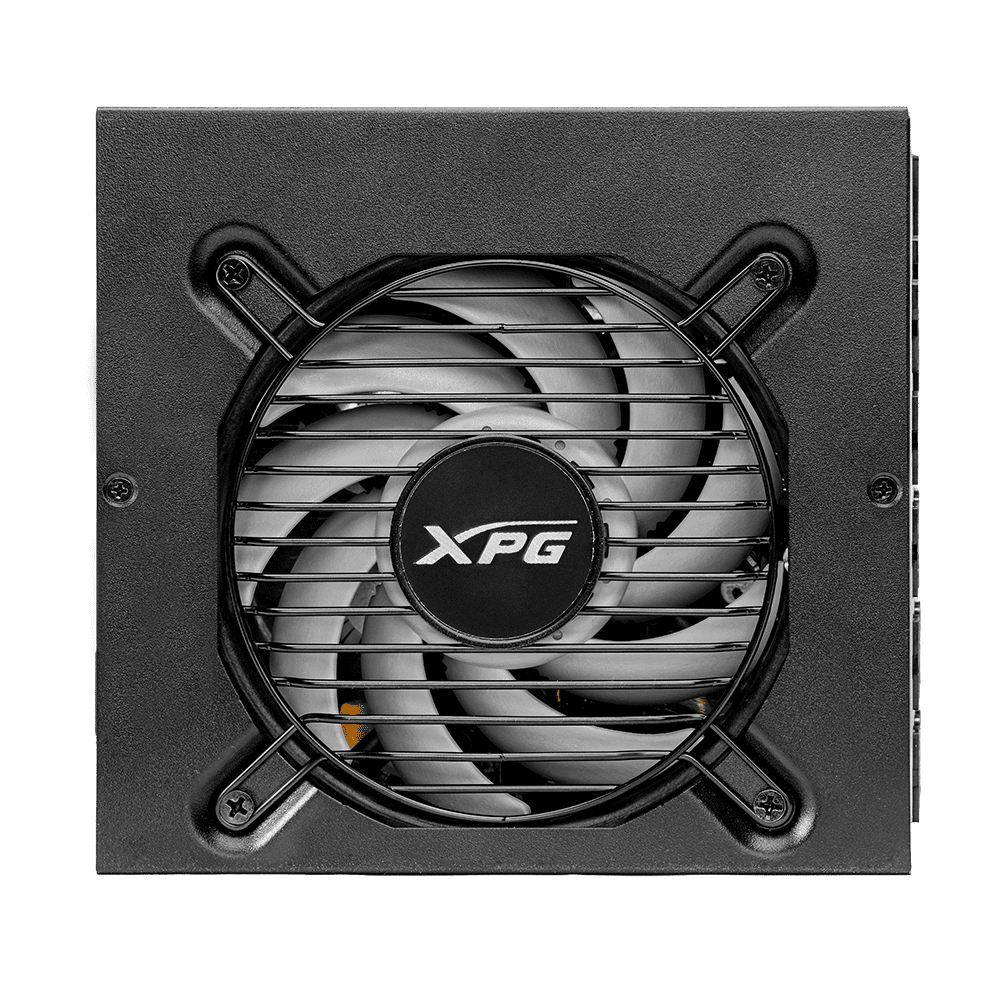

Equipped with a 120 mm double ball bearing fan and efficient DC‑to‑DC design, the PSU maintains stable voltage while minimizing acoustic noise. Its smart protection suite guards against over voltage, over current, under voltage, short circuits, and other risks to protect your components.

Comprehensive Protection and Long Life

The Cybercore II includes active Power Factor Correction (PFC) and a suite of protections including OCP, OVP, OPP, UVP, SCP, NLO, and SIP to ensure safety under varying loads. A high MTBF rating supports long‑term reliability in demanding use cases.

SPECIFICATIONS

• Model: XPG Cybercore II 1300W 80 Plus Platinum Fully Modular Power Supply
• Form Factor: ATX 12V / ATX 3.0 & 3.1 compliant
• Wattage: 1300 W continuous output
• 80 PLUS Certification: Platinum (excellent energy efficiency)
• Cooling Fan: 120 mm double ball bearing fan
• Fan Speed: Up to ~2,150 RPM
• PFC: Active PFC (>0.99)
• Input Voltage: 100 – 240 V AC, 50 – 60 Hz
• Protections: OCP, OVP, OPP, UVP, SCP, NLO, SIP, OTP
• Connectors:
• 1 × 24‑pin ATX main power
• 2 × EPS 8‑pin CPU connectors
• 10 × PCI‑E 6+2‑pin connectors
• 1 × 12VHPWR (12+4) connector (600 W)
• 12 × SATA power connectors
• 8 × Molex 4‑pin connectors
• 2 × Floppy 4‑pin connectors
• DC Output Voltages: +12 V, +5 V, +3.3 V, +5 Vsb, –12 V
• Dimensions: 160 × 150 × 86 mm
• Operating Temperature: Up to 50 °C
• MTBF: ~125,000 hours @ 25 °C
• Weight: Approx. 2 kg (unit) + cables ~1.94 kg
