ASUS PRIME B650M‑A WIFI II Micro‑ATX Motherboard with DDR5 and Wi‑Fi 6

The ASUS PRIME B650M‑A WIFI II motherboard delivers a compelling platform for gamers, creators, and professionals building with AMD Ryzen™ AM5 processors. This micro‑ATX board supports DDR5 memory and modern connectivity features that enhance performance and expandability.

Powerful AMD AM5 Support and DDR5 Memory

Built for the latest AMD Ryzen™ 7000, 8000, and 9000 Series desktop processors, the ASUS PRIME B650M‑A WIFI II motherboard unlocks advanced performance potential in compact PC builds. With four DDR5 DIMM slots and support for memory speeds up to 7600+(OC), it delivers the high bandwidth needed for gaming, content creation, and multitasking.

Fast Networking and Expansion

This motherboard includes Wi‑Fi 6 wireless connectivity and Realtek 2.5Gb Ethernet for fast, reliable network performance. Dual M.2 slots with PCIe 5.0 and PCIe 4.0 support offer blazing‑fast NVMe SSD storage options. A PCIe 4.0 x16 slot enables high‑performance GPU compatibility for gaming or productivity desktops.

Built‑In Features for Custom Builds

ASUS OptiMem II memory trace routing helps improve stability and overclocking performance. Additionally, comprehensive cooling features and Aura Sync RGB headers allow you to manage airflow and lighting in your system.

SPECIFICATIONS

• Model: ASUS PRIME B650M‑A WIFI II
• Form Factor: Micro‑ATX (24.4 cm × 24.4 cm)
• CPU Socket: AMD AM5 (Ryzen™ 7000/8000/9000 Series)
• Chipset: AMD B650
• Memory Support: DDR5 (4800–7600+ MHz OC), ECC & non‑ECC, dual channel
• DIMM Slots: 4
• Max Memory: Up to 192 GB
• Expansion Slots: 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1
• Storage: 2 × M.2 slots (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4), 4 × SATA 6Gb/s
• Networking: Wi‑Fi 6 (802.11ax), Realtek 2.5Gb Ethernet
• Bluetooth: v5.2

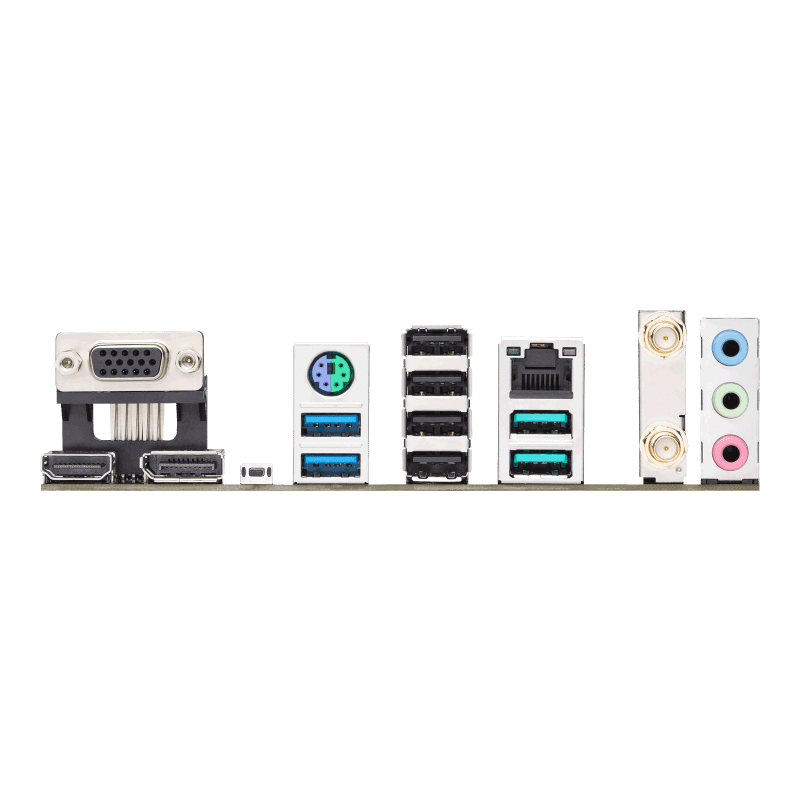

• USB (Rear): 2 × USB 3.2 Gen 2, 2 × USB 3.2 Gen 1, 4 × USB 2.0
• USB (Front Header): USB 3.2 Gen 1 Type‑C, additional USB 3.2 Gen 1 & USB 2.0 headers
• Display Outputs: HDMI, DisplayPort, VGA (dependent on CPU graphics)
• Audio: Realtek 7.1‑channel high‑definition audio
• BIOS: UEFI AMI with BIOS FlashBack™
• Cooling & Fan Headers: VRM heatsink, PCH heatsink, hybrid fan headers, Fan Xpert support
• RGB Support: Aura Sync RGB and Addressable Gen 2 headers
