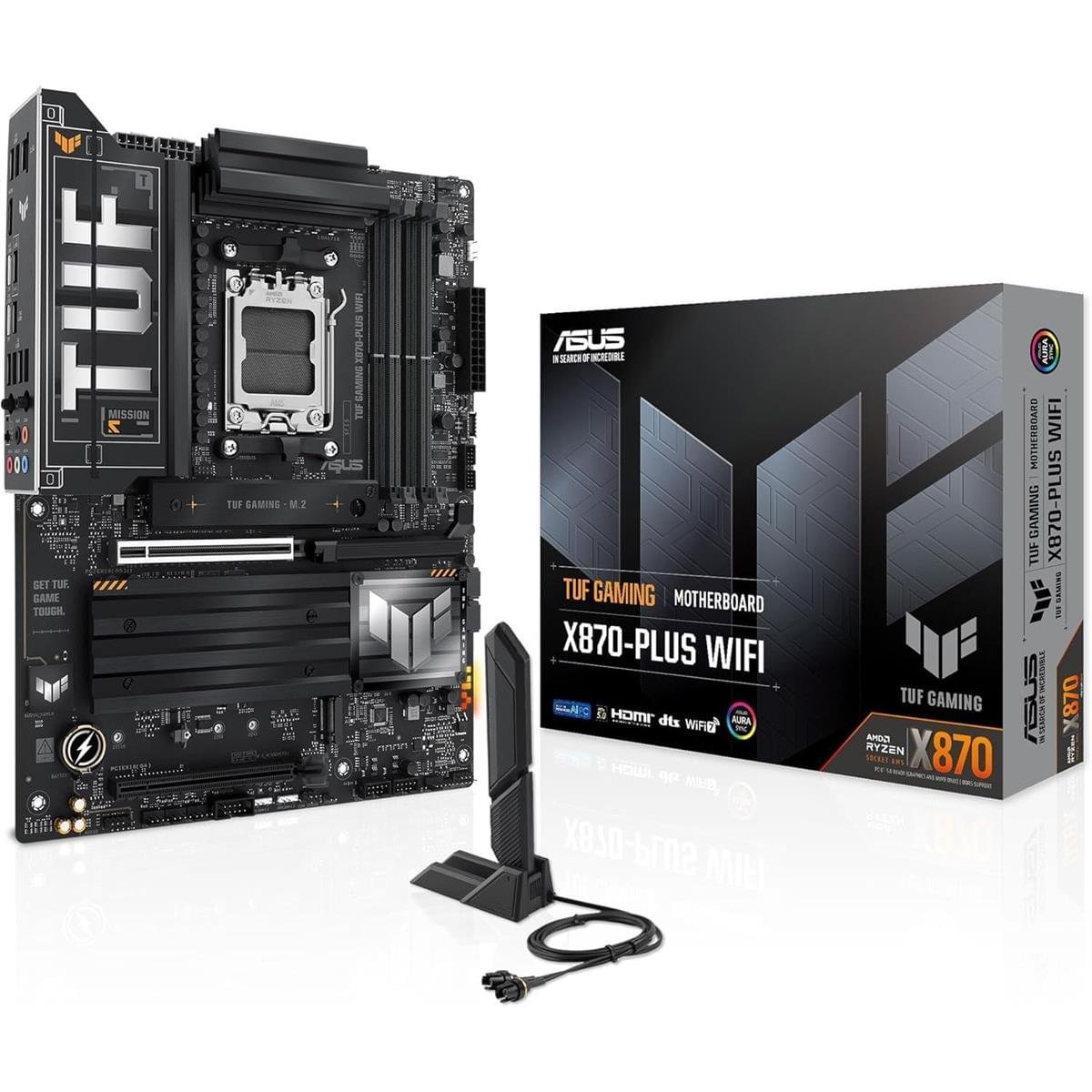

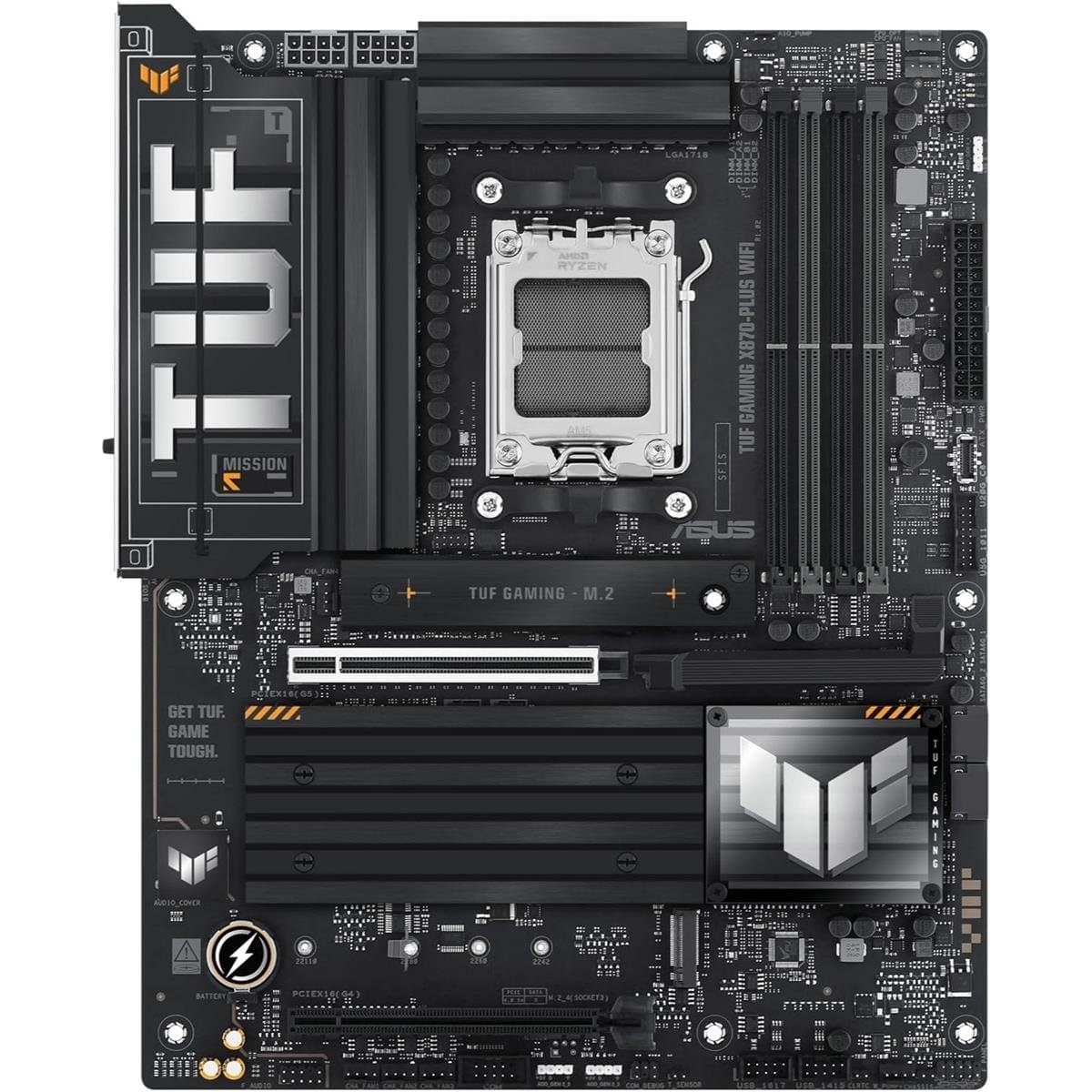

ASUS TUF GAMING X870‑PLUS WIFI DDR5 PCIe 5.0 Wi‑Fi 7 Motherboard

The ASUS TUF GAMING X870‑PLUS WIFI motherboard delivers a high‑performance foundation for serious gamers, creators, and PC builders with advanced connectivity and robust power design. It supports the latest AMD Ryzen™ desktop processors on the AM5 socket and pairs DDR5 memory with PCIe 5.0 technology for responsive performance in gaming and content tasks.

Advanced AMD AM5 and DDR5 Support

Built for modern systems, the ASUS TUF GAMING X870‑PLUS WIFI motherboard supports AMD Ryzen™ 7000, 8000, and 9000 Series processors. Its DDR5 memory support with four DIMM slots and 8000+ MT/s (OC) capability boosts bandwidth for demanding multitasking and gaming workloads.

PCIe 5.0 and Accelerated Storage

This board includes a PCIe 5.0 x16 slot for the latest GPUs and two PCIe 5.0‑ready M.2 slots for next‑generation storage, alongside additional PCIe 4.0 slots for flexibility. The high‑speed expansion delivers rapid data access and improved responsiveness for creative and gaming applications.

Cutting‑Edge Connectivity with Wi‑Fi 7

Featuring integrated Wi‑Fi 7 and dual ASUS Wi‑Fi Q‑Antennas, this motherboard supports ultra‑fast wireless networking with enhanced bandwidth and stability. A Realtek 2.5Gb Ethernet port ensures reliable wired connections for gaming or large file transfers.

Built for Durability and Customization

TUF GAMING boards are known for military‑grade components, enhanced cooling, and DIY‑friendly features such as PCIe Q‑Release, M.2 Q‑Latch, and BIOS FlashBack™. Aura Sync RGB support lets you build a system with synchronized lighting across components.

SPECIFICATIONS

• Model: ASUS TUF GAMING X870‑PLUS WIFI
• Form Factor: ATX (305 × 244 mm)
• CPU Socket: AMD AM5 (Ryzen™ 7000 / 8000 / 9000)
• Chipset: AMD X870
• Memory Support: 4 × DDR5 DIMM, Dual Channel, Up to 8000+ MT/s (OC), ECC & Non‑ECC
• Maximum Memory: Up to 192–256 GB
• Expansion Slots:
• 1 × PCIe 5.0 x16 SafeSlot
• 1 × PCIe 4.0 x16 (x4 mode)
• Storage: 4 × M.2 slots (2 × PCIe 5.0 x4, 2 × PCIe 4.0 x4)
• SATA: 4 × SATA 6Gb/s (via chipset)
• Networking: Wi‑Fi 7 (802.11be w/ ASUS Wi‑Fi Q‑Antenna), Realtek 2.5Gb Ethernet
• Bluetooth: Bluetooth v5.4

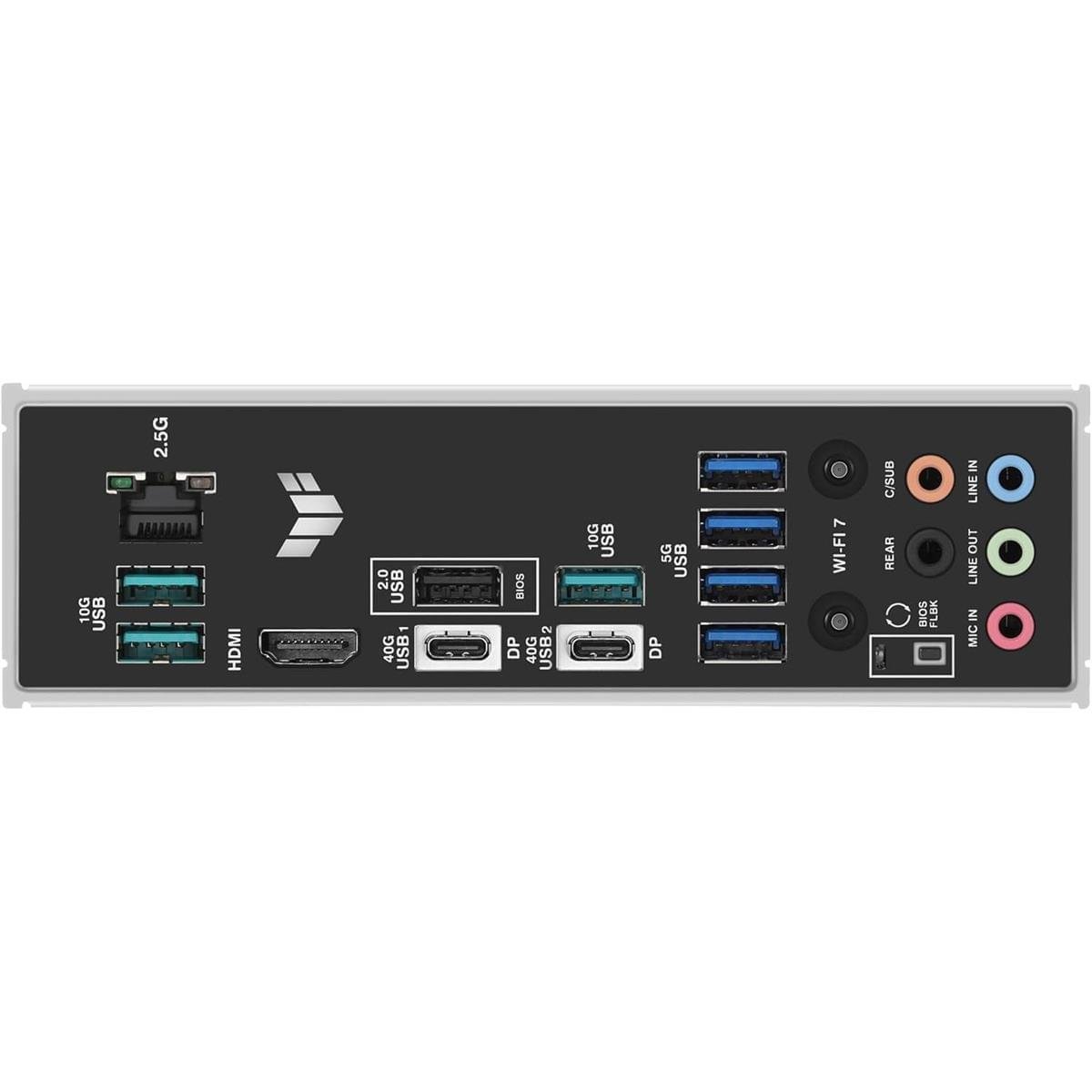

• USB Connectivity (Rear):
• 2 × USB4® Type‑C (40Gbps)
• 3 × USB 10Gbps Type‑A
• 4 × USB 5Gbps Type‑A
• 1 × USB 2.0 Type‑A
• USB Front Headers: USB 20Gbps Type‑C (with Power Delivery), USB 5Gbps, USB 2.0 headers
• Graphics Outputs: 1 × HDMI 2.1 (depends on CPU graphics support)
• Audio: Realtek ALC1220P 7.1 HD Audio Codec
• Cooling: VRM heatsinks, M.2 heatsinks, multiple fan & pump headers
• BIOS: UEFI BIOS with BIOS FlashBack™ button
• Special Features: TUF Protection (SafeSlot, ESD guards, Overvoltage Protection), AI Overclocking, AI Cooling II, Aura Sync RGB

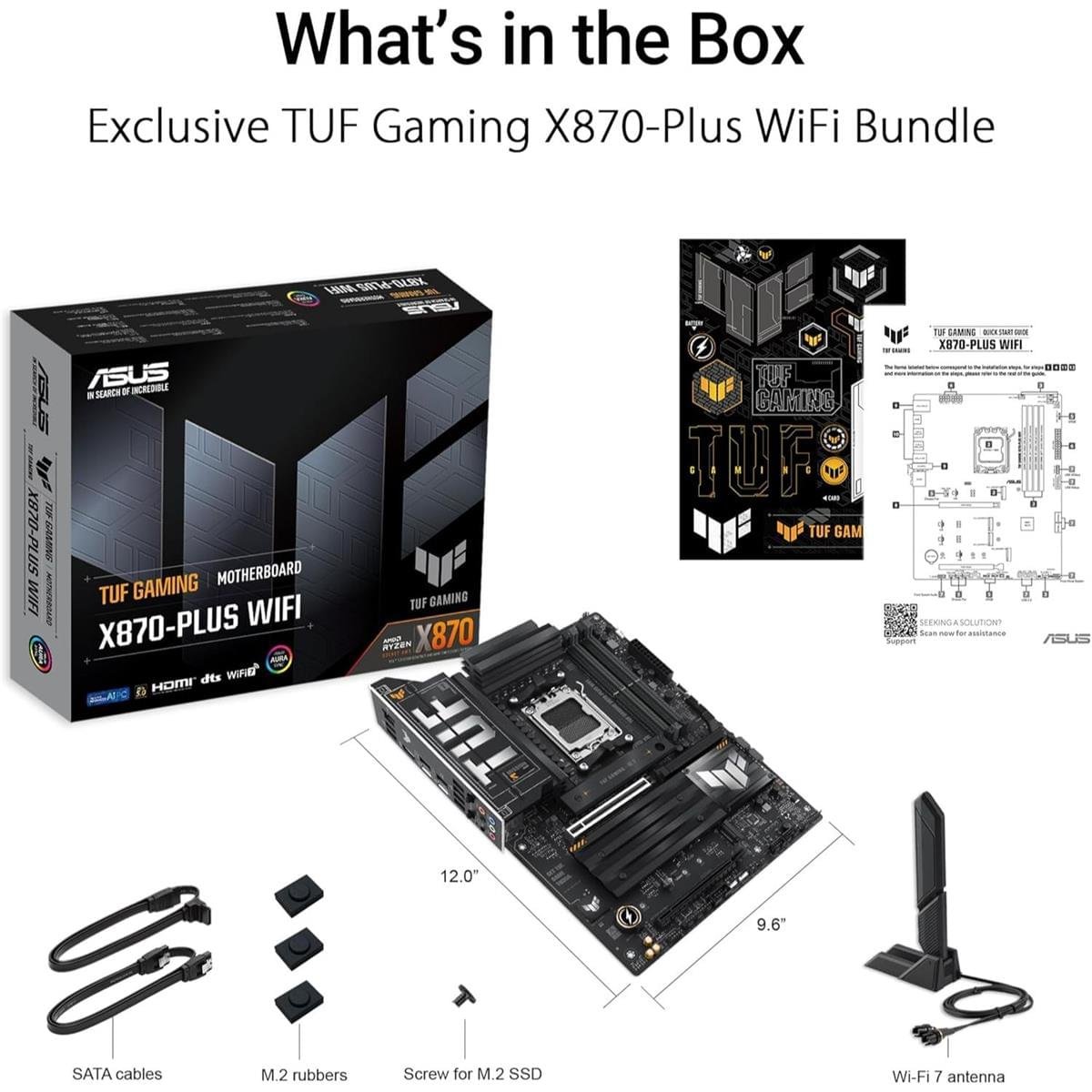

• Included Accessories: Pre‑mounted I/O shield, Wi‑Fi 7 antennas, SATA cables, user manual
