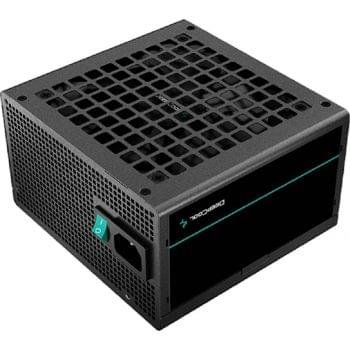

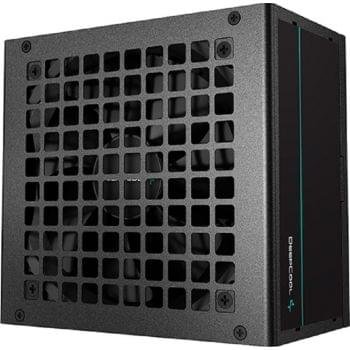

DeepCool PF650D 80+ White 650W Power Supply – Trusted ATX 650W PSU

The DeepCool PF650D 80+ White 650W Power Supply delivers stable and efficient power for gaming, productivity, and everyday PC builds. With its 80+ White certification, this PSU achieves up to 85% efficiency under typical loads, ensuring reduced energy waste and lower operating temperatures. Designed to meet the ATX12V V2.4 standard, the PF650D provides reliable output for mid‑range CPUs, GPUs, and essential components without compromising performance.

Efficient Power Delivery for System Stability

The DeepCool PF650D 80+ White 650W Power Supply uses an active PFC circuit and a double tube forward topology to maintain clean, consistent power across all voltage rails. This helps support smooth system operation during gaming or productivity tasks. Its high efficiency helps cut energy costs while reducing heat output.

Quiet Cooling for Continuous Use

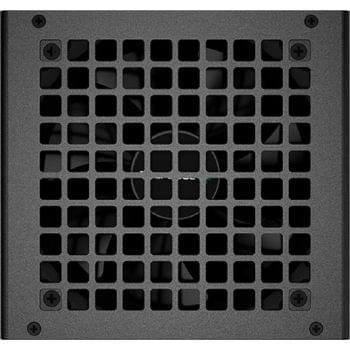

Equipped with a 120mm Hypro bearing cooling fan, this PSU balances effective thermal management with quiet operation. The optimized fan design keeps system noise low even under sustained load.

Built‑In Protections & Reliable Components

The DeepCool PF650D includes essential protections such as over‑power (OPP), over‑voltage (OVP), short‑circuit (SCP), and under‑voltage (UVP) safeguards to help shield your system from electrical anomalies. These protections enhance durability and peace of mind for gaming and workstation builds.

SPECIFICATIONS

• • Brand: DeepCool
  • Model: PF650D
  • Form Factor: ATX12V V2.4
  • Power Output: 650 Watts Continuous
  • Efficiency: 80 PLUS White Certified (≥85% at typical load)
  • Fan: 120mm Hypro Bearing Cooling Fan
  • Topology: Active PFC + Double Tube Forward
  • Capacitors: Taiwan Bulk Capacitors
  • Power Good Signal: 100–500ms
  • Hold‑Up Time: ≥10ms (75% Load)
  • Protections: OPP, OVP, SCP, UVP
  • Operation Temperature: 0–30°C
  • Regulatory Compliance: CB, CCC, CE, UKCA, EAC, RCM, BIS
  • MTBF: ~100,000 Hours
  • Connectors:
  • 1 × 24‑pin ATX
  • 2 × 8‑pin EPS (4+4)
  • 2 × PCI‑E 6+2 pin
  • SATA & Peripheral connectors (varies by region)
  • Dimensions: 150 × 140 × 86 mm
