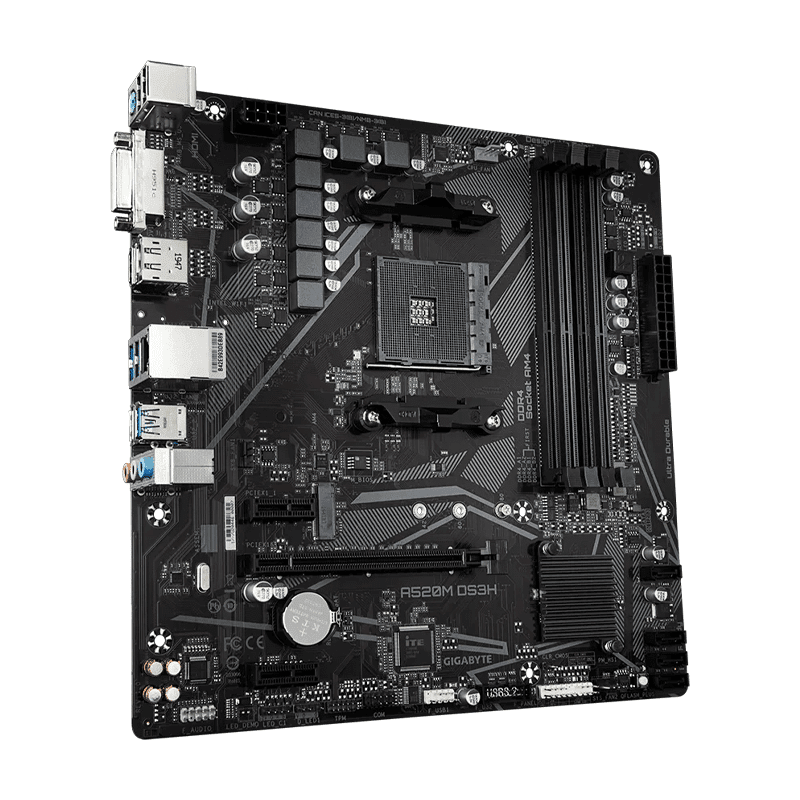

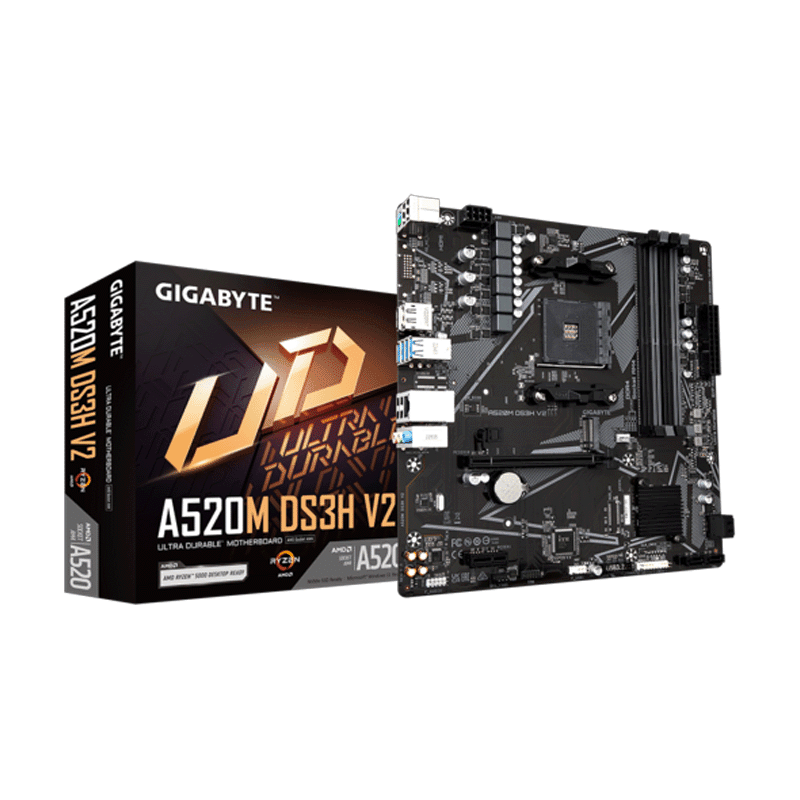

A520M DS3H DDR4 Motherboard – Gigabyte AMD AM4 Board

The A520M DS3H DDR4 motherboard is designed for reliable performance and efficient computing for budget-conscious users and casual gamers. Moreover, this Gigabyte A520M DS3H board supports AMD Ryzen™ 3000, 4000, and 5000 Series CPUs on the AM4 socket. As a result, users gain stable system performance for daily tasks, productivity, and light gaming.

DDR4 Memory Support and System Stability

First, the A520M DS3H DDR4 motherboard features two DDR4 DIMM slots supporting up to 4733 MT/s (OC) and AMD EXPO™ memory profiles. In addition, its dual-channel memory architecture ensures smooth multitasking for everyday applications. Therefore, students, office users, and casual gamers can benefit from improved performance at an affordable price.

Storage and Expansion Options

Additionally, this AM4 DDR4 motherboard provides one PCIe 3.0 x16 slot for discrete graphics and a PCIe 3.0 x4 M.2 slot for high-speed NVMe SSD storage. Likewise, four SATA 6 Gb/s ports support additional HDDs and SSDs. Consequently, boot times are faster and application load times are reduced. (uae.microless.com)

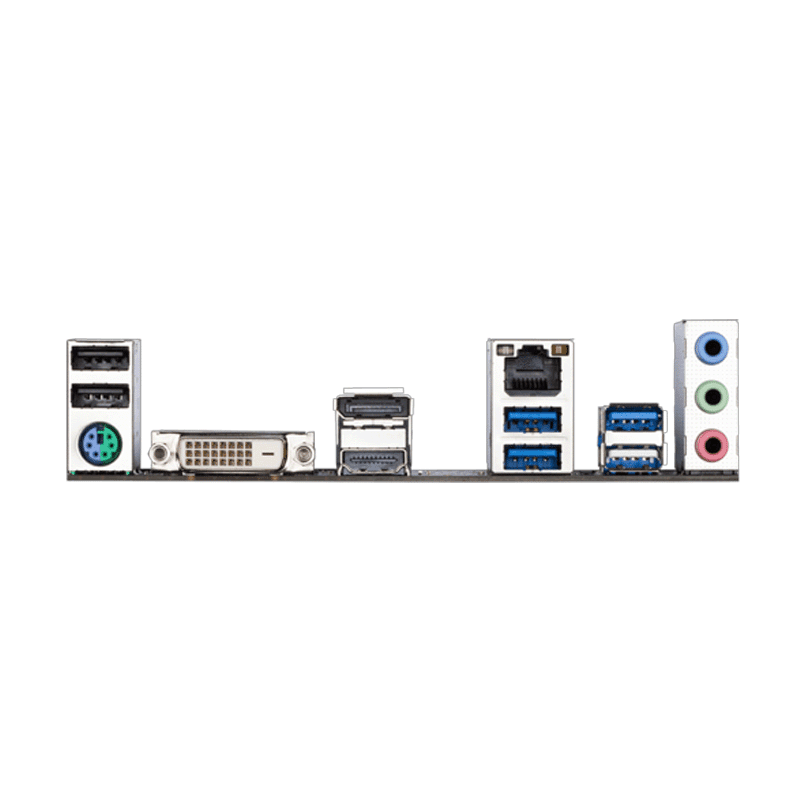

Connectivity and I/O

Furthermore, the Gigabyte A520M DS3H integrates Realtek Gigabit LAN for reliable wired networking. The motherboard also features HDMI 2.1 and DisplayPort 1.4 for modern displays, as well as multiple USB 3.2 Gen1 and USB 2.0 ports for peripherals. Therefore, connectivity is flexible for both home and office setups. (uae.microless.com)

User-Friendly Features

Finally, Q-Flash allows BIOS updates without installing the CPU or memory, while Smart Fan headers enable effective thermal management.

• SPECIFICATIONS
  Manufacturer: Gigabyte
  Model: A520M DS3H DDR4
  Form Factor: Micro‑ATX (24.4 × 22.9 cm)
  CPU Socket: AMD AM4
  Supported CPUs: AMD Ryzen™ 3000 / 4000 / 5000 Series
  Chipset: AMD A520
  Memory: 2 × DDR4 DIMM slots, Dual Channel, up to 64 GB, up to 4733 MT/s (OC)
  Memory Features: AMD EXPO™ support
  Expansion Slots: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1
  Storage: 1 × M.2 PCIe 3.0 x4, 4 × SATA 6 Gb/s
  Networking: Realtek Gigabit LAN
  Audio: Realtek High Definition Audio (7.1‑channel)
  Display Outputs: HDMI 2.1, DisplayPort 1.4
  USB Ports: USB 3.2 Gen1, USB 2.0
  BIOS: UEFI with Q-Flash
  Cooling: Smart Fan headers
