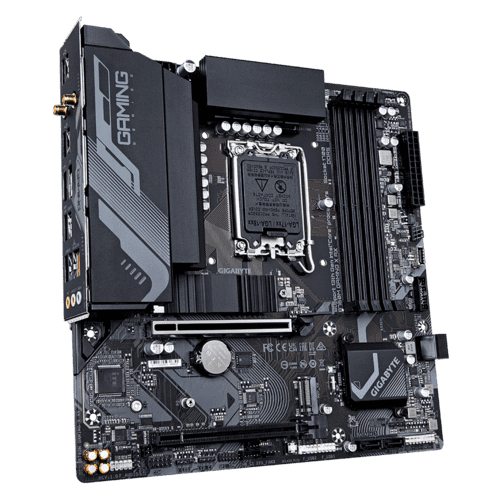

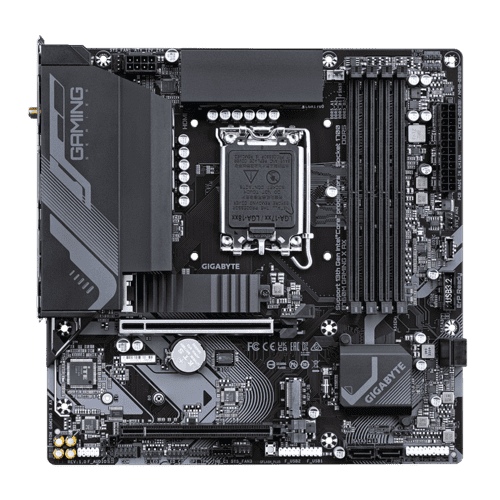

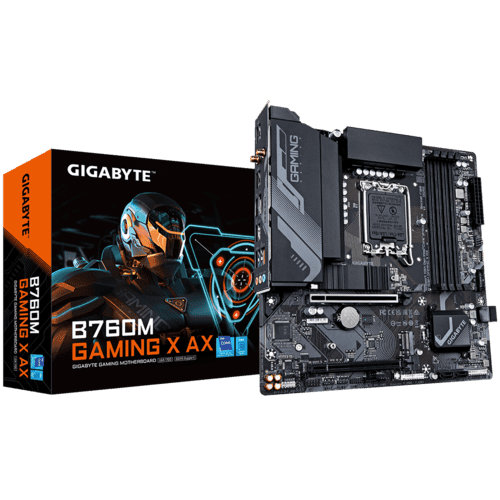

B760M Gaming X AX DDR5 Motherboard – Gigabyte Intel LGA1700 Board

The B760M Gaming X AX DDR5 motherboard brings powerful performance and modern networking to microATX Intel desktop builds. It supports Intel® 12th, 13th, and 14th Gen Core™, Pentium® Gold, and Celeron® processors on the LGA1700 socket. Therefore, this Gigabyte board suits gaming rigs, productivity systems, and everyday computing setups.

High‑Speed DDR5 Memory for Responsive Systems

This Gigabyte board includes four DDR5 DIMM slots supporting memory speeds up to 7600 MT/s (OC) with XMP profiles. Moreover, dual‑channel architecture improves responsiveness for multitasking, creative software, and games.

PCIe Expansion and Ultra‑Fast Storage Options

The B760M Gaming X AX DDR5 motherboard features a PCIe 4.0 x16 slot for graphics cards and two PCIe 4.0 x4 M.2 slots for high‑speed NVMe SSD storage. As a result, boot times and load speeds are significantly faster, improving overall system performance. Additionally, Gigabyte’s M.2 Thermal Guard helps maintain SSD performance under sustained load.

Advanced Networking and Connectivity

This motherboard integrates Intel Wi‑Fi 6E and Bluetooth 5.3 for fast wireless networking. Also, Realtek 2.5GbE LAN provides low‑latency wired connectivity for online gaming and streaming. Meanwhile, HDMI and DisplayPort outputs support high‑resolution displays when used with compatible integrated graphics CPUs.

Builder‑Friendly Features

Furthermore, Gigabyte includes Smart Fan 6 with multiple temperature sensors and hybrid fan headers for precise cooling control. The board also supports EZ‑Latch for easier GPU installation and Q‑Flash Plus for BIOS updates without CPU or memory installed.

• SPECIFICATIONS
  Manufacturer: Gigabyte
  Model: B760M Gaming X AX DDR5 (Rev. 1.x)
  Form Factor: microATX (244 × 244 mm)
  CPU Socket: Intel LGA1700; supports 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron®
  Chipset: Intel® B760 Express Chipset
  Memory: 4 × DDR5 DIMM, Dual‑Channel; up to 256 GB; DDR5 up to 7600 MT/s (OC); XMP support
  Expansion Slots: 1 × PCIe 4.0 x16
  Storage: 2 × M.2 PCIe 4.0 x4, 4 × SATA 6 Gb/s
  Networking: Intel® Wi‑Fi 6E (AX210/AX211/Realtek 8852CE depending on PCB), Bluetooth 5.3, Realtek® 2.5GbE LAN
  Audio: Realtek High‑Definition 7.1‑channel Audio Codec

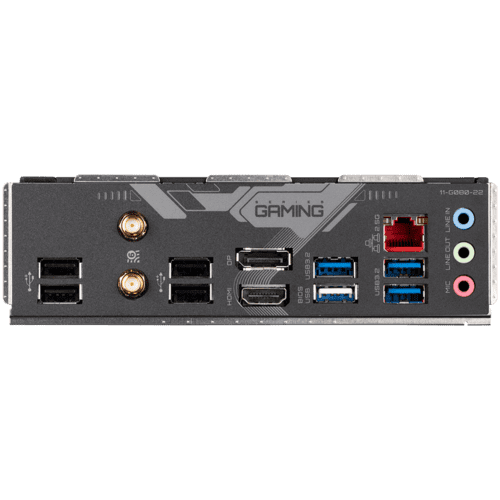

  Rear I/O: HDMI, DisplayPort, USB3.2 Gen2 Type‑C, USB3.2 Gen1, USB2.0, LAN, audio jacks
  Internal I/O: 24‑pin ATX, 8‑pin CPU power, multiple fan headers, RGB headers
  BIOS: UEFI with Q‑Flash Plus
  Cooling: Smart Fan 6, M.2 Thermal Guard
  Special Features: EZ‑Latch PCIe design, RGB Fusion support
