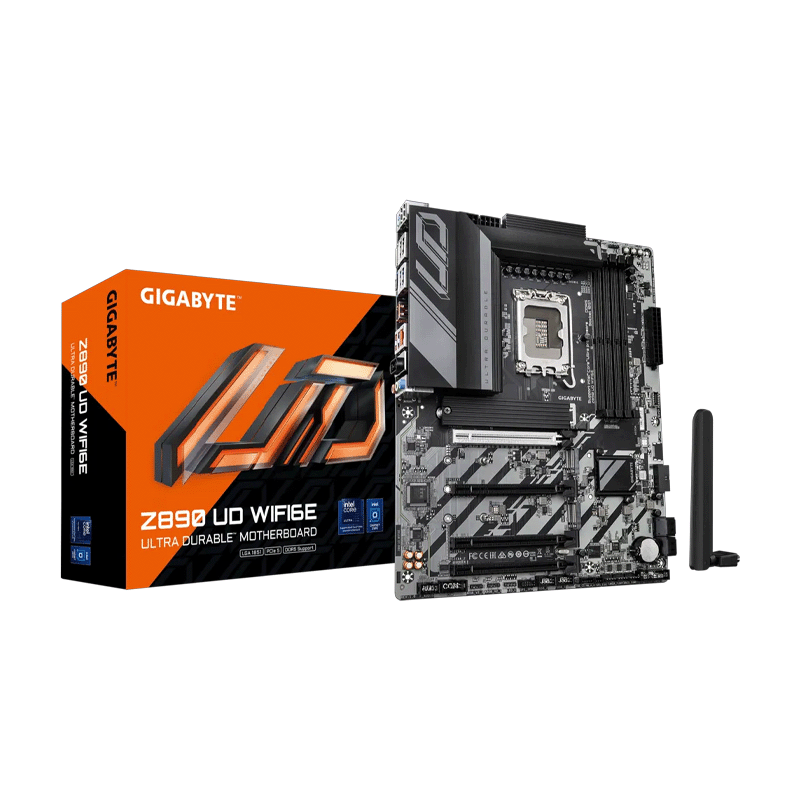

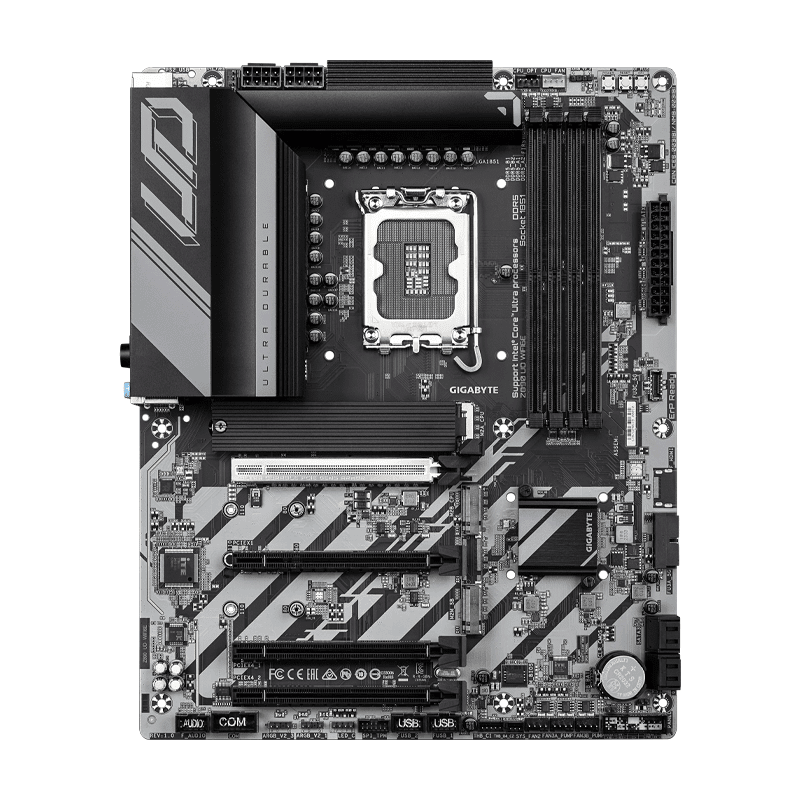

Z890 UD WiFi6E DDR5 Motherboard – Gigabyte Intel LGA1851 Board

The Z890 UD WiFi6E motherboard delivers reliable performance and advanced connectivity for Intel® Core™ Ultra Series 2 builds. Supporting Intel LGA1851 processors, this Gigabyte board ensures responsive computing for gaming, productivity, and content creation. It provides a solid foundation for both everyday tasks and demanding workloads.

High-Speed DDR5 Memory

This motherboard includes four DDR5 DIMM slots supporting speeds up to 9200 MT/s (OC) with XMP profiles. Its dual-channel memory design improves bandwidth for multitasking. Consequently, memory-intensive applications, such as video editing or gaming, run smoothly and efficiently.

PCIe and M.2 Expansion Slots

The Z890 UD board provides one PCIe 5.0 x16 slot and multiple PCIe 4.0 slots for graphics cards and expansion devices. Additionally, three M.2 slots, including one PCIe 5.0 x4, enable ultra-fast NVMe SSD storage. As a result, boot times and large file transfers are faster, improving overall system responsiveness.

Networking & Connectivity

It integrates Wi‑Fi 6E (802.11ax), Bluetooth 5.x, and Realtek 2.5GbE LAN for reliable wireless and wired networking. USB4® Type‑C with DisplayPort‑Alt and a native DisplayPort output allow high-resolution displays when paired with compatible CPUs. Users enjoy versatile connections for peripherals, storage, and monitors.

Builder-Friendly Features

Gigabyte includes EZ‑Latch, Smart Fan controls, thermal armor, and a user-friendly BIOS. Additionally, Q‑Flash simplifies BIOS updates.

• SPECIFICATIONS
  Manufacturer: Gigabyte
  Model: Z890 UD WiFi6E
  Form Factor: ATX (305 × 244 mm)
  CPU Socket: Intel LGA1851 (Core™ Ultra Series 2 support)
  Chipset: Intel® Z890 Express Chipset
  Memory: 4 × DDR5 DIMM, Dual‑Channel, up to 256 GB; up to 9200 MT/s (OC)
  Memory Features: XMP support, ECC (non‑ECC) support
  Expansion Slots: 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x4 (via chipset), 1 × PCIe 4.0 x1
  Storage: 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4), 4 × SATA 6 Gb/s
  Networking: Wi‑Fi 6E (802.11ax), Bluetooth 5.x, Realtek 2.5GbE LAN
  Audio: Realtek High‑Definition Audio (supports 2/4/5.1/7.1‑channel)

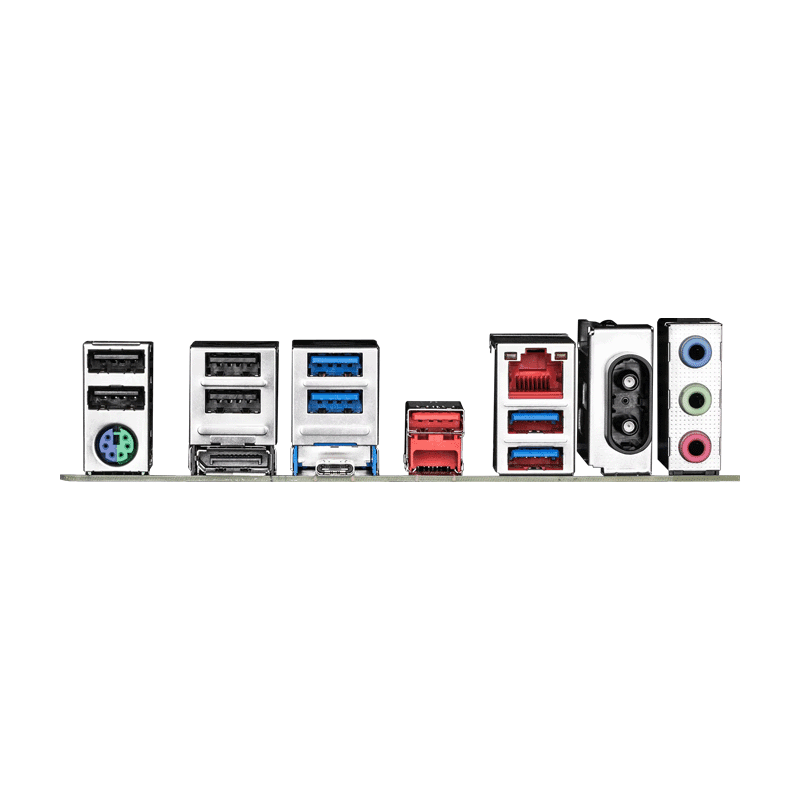

  Rear I/O: USB4® Type‑C with DP‑Alt, USB 3.2 Gen2 / Gen1, USB 2.0, LAN, audio jacks
  Display Outputs: USB4® with DisplayPort, DisplayPort 2.1
  Wireless: Intel® Wi‑Fi 6E or Realtek Wi‑Fi 6E module (frequency bands 2.4/5/6 GHz)
  BIOS: UEFI with Q‑Flash and Smart Backup
  Cooling: VRM Thermal Armor Advanced, M.2 Thermal Guard
  User Features: WIFI EZ‑Plug, EZ‑Latch, Friendly UI BIOS, Smart Fan control
