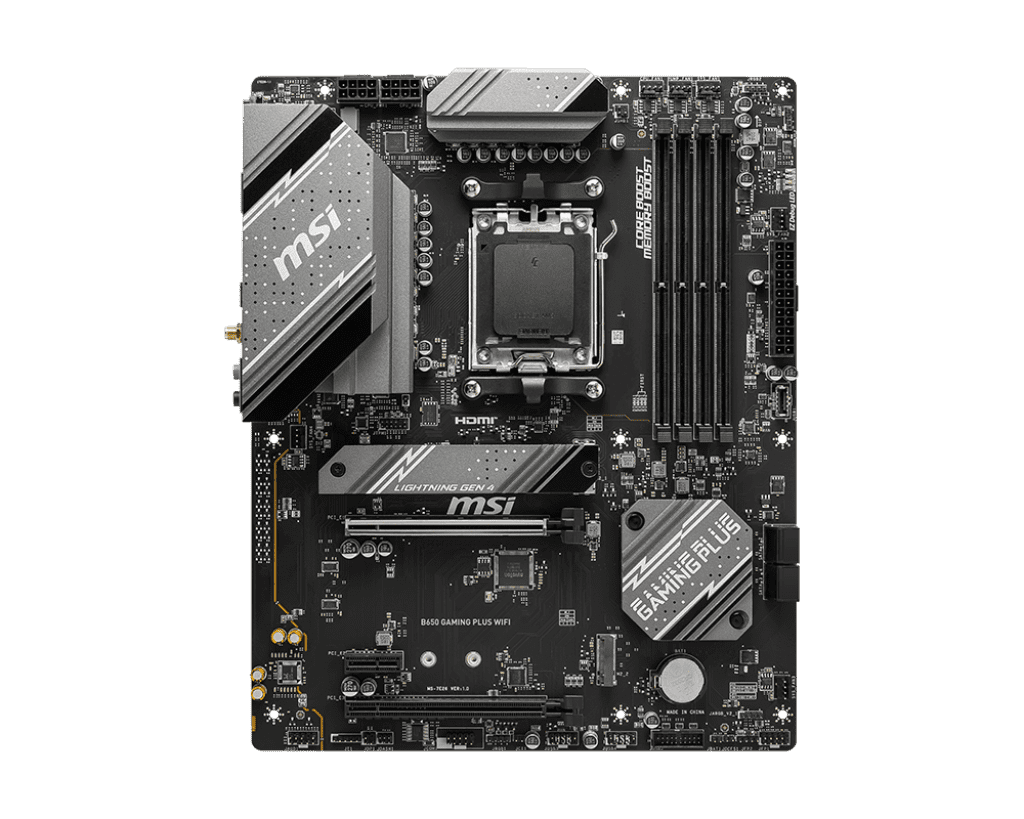

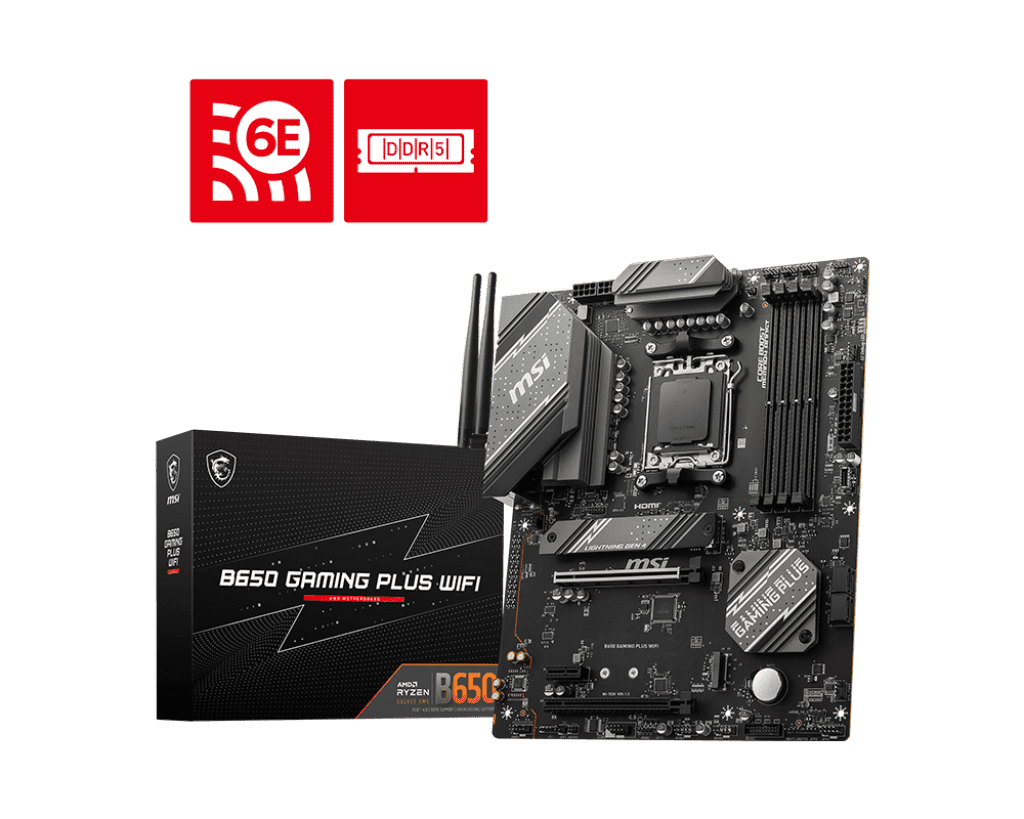

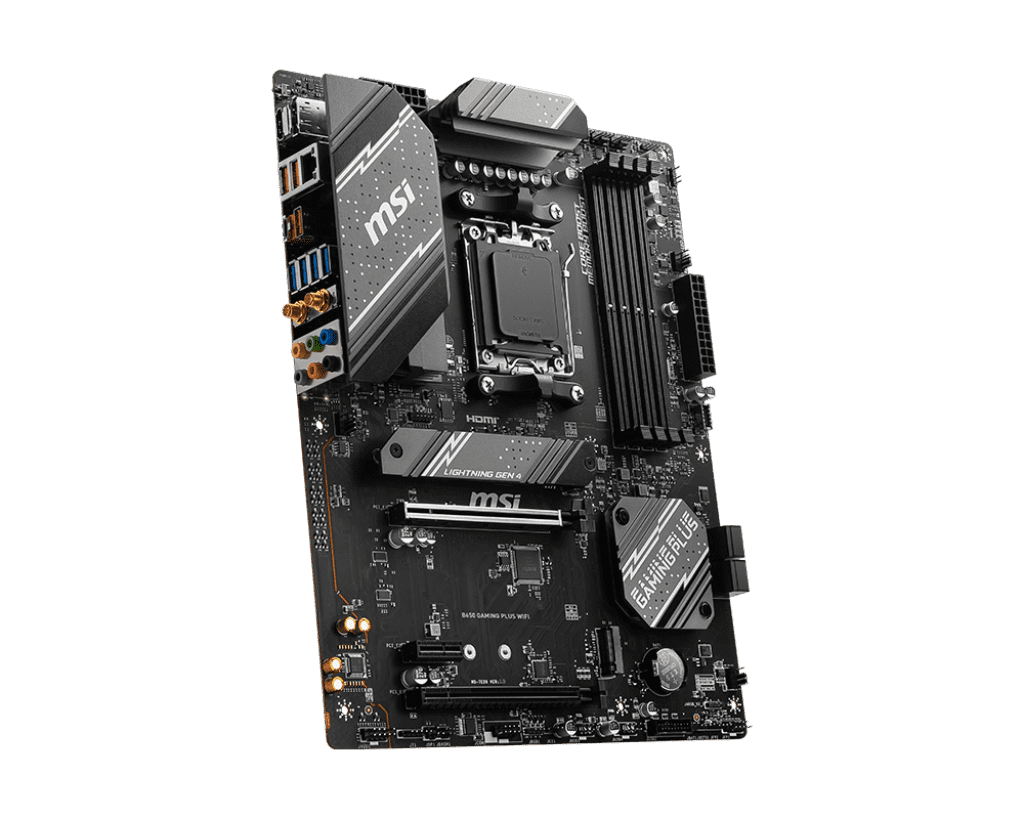

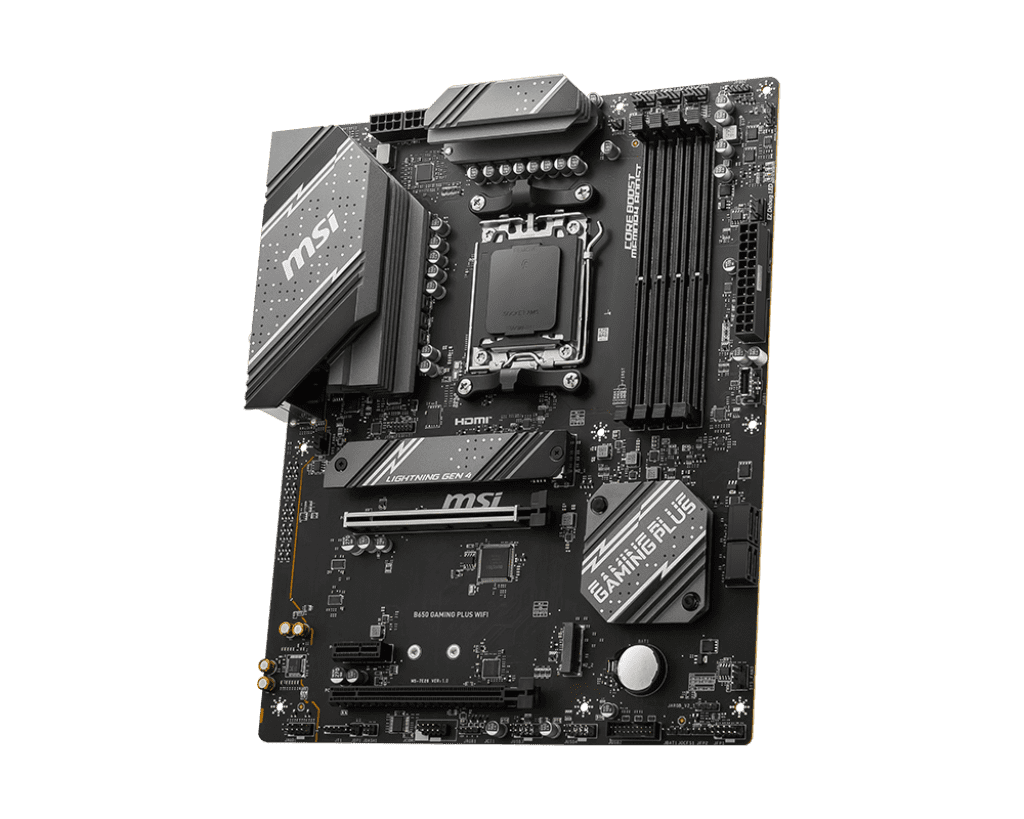

MSI B650 GAMING PLUS WIFI AM5 ATX Gaming Motherboard – DDR5, Wi‑Fi 6E, 2.5G LAN

The MSI B650 GAMING PLUS WIFI AM5 Motherboard is a feature‑rich ATX gaming platform built for AMD Ryzen™ 7000, 8000, and 9000 Series processors. The MSI B650 GAMING PLUS WIFI AM5 Motherboard supports the latest DDR5 memory standards and offers robust power delivery for gaming, streaming, and productivity builds.

Next‑Gen Performance and Memory Support

This AM5 motherboard supports quad‑channel DDR5 memory up to 7200+ MHz (OC) and delivers stable, high‑speed performance with AMD EXPO optimization. Dual PCIe 4.0 x16 slots ensure your graphics card and expansion cards perform with minimal latency.

Wireless and Wired Connectivity

Equipped with Wi‑Fi 6E and Bluetooth 5.3, the MSI B650 GAMING PLUS WIFI board provides ultra‑fast wireless networking alongside 2.5G LAN for competitive online gaming and low‑latency connections. The integrated Wi‑Fi module installs in the M.2 Key‑E slot for easy setup.

Rich I/O and Storage Options

With dual M.2 PCIe 4.0 x4 slots and four SATA 6 Gb/s ports, this motherboard delivers flexible storage configurations for NVMe SSDs and traditional drives. USB 3.2 Gen 2×2 Type‑C and other high‑speed USB ports support modern peripherals and accessories.

Built for Gamers and Enthusiasts

The MSI B650 GAMING PLUS WIFI AM5 Motherboard also includes MSI‑exclusive features like Core Boost design, M.2 Shield Frozr, and EZ Debug LEDs to help troubleshoot and optimize system performance. Designed to handle demanding CPU and memory workloads, this board is suitable for gamers, creators, and daily productivity users alike.

SPECIFICATIONS

• Brand: MSI
• Model: B650 GAMING PLUS WIFI
• Chipset: AMD B650
• Form Factor: ATX (305 × 244 mm)
• CPU Socket: AM5, Supports AMD Ryzen™ 7000/8000/9000 Series CPUs
• Memory Support:
• 4 × DDR5 DIMM slots
• Up to 256 GB (dual‑channel DDR5, up to 7200+ MHz OC)
• Expansion Slots:
• 2 × PCIe 4.0 x16 slots
• 1 × PCIe 3.0 x1 slot
• Storage:
• 2 × M.2 PCIe 4.0 x4 slots
• 4 × SATA 6 Gb/s ports
• Networking:
• Realtek 8125BG 2.5G LAN
• Wi‑Fi 6E + Bluetooth 5.3
• Audio: Realtek ALC897 7.1‑Channel HD Audio
• USB Connectivity:
• 1 × USB 3.2 Gen 2×2 Type‑C (20 Gbps)
• 2 × USB 3.2 Gen 2 Type‑A
• 4 × USB 3.2 Gen 1 / USB 2.0 ports
• Video Outputs:
• 1 × HDMI 2.1
• 1 × DisplayPort 1.4
• Cooling & Features: Extended heatsinks, M.2 Shield Frozr, EZ Debug LEDs
• BIOS Features: Flash BIOS Button, MSI Core Boost, Memory Boost
• Color: Black
