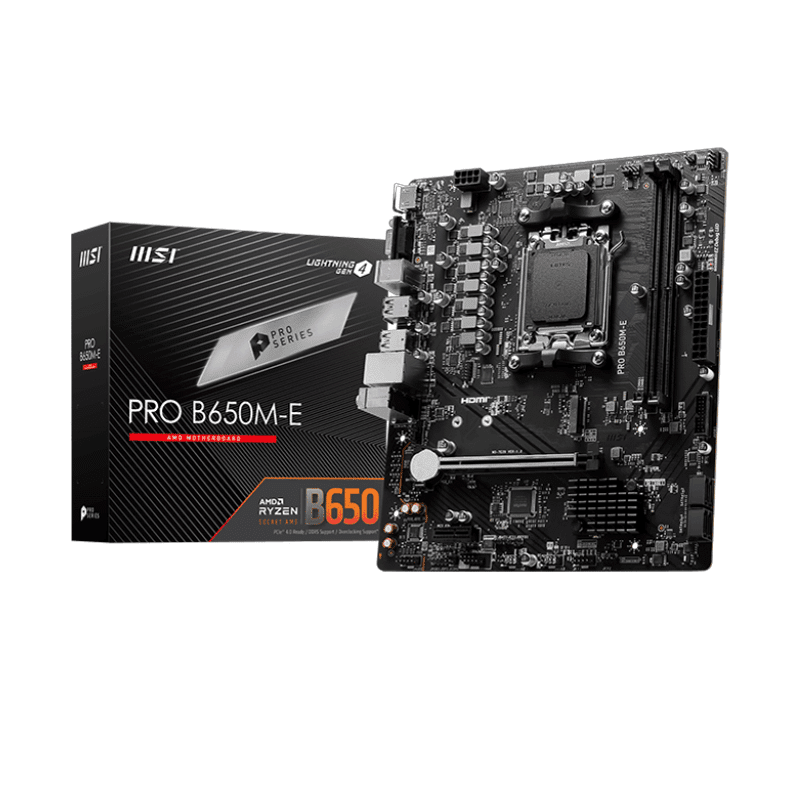

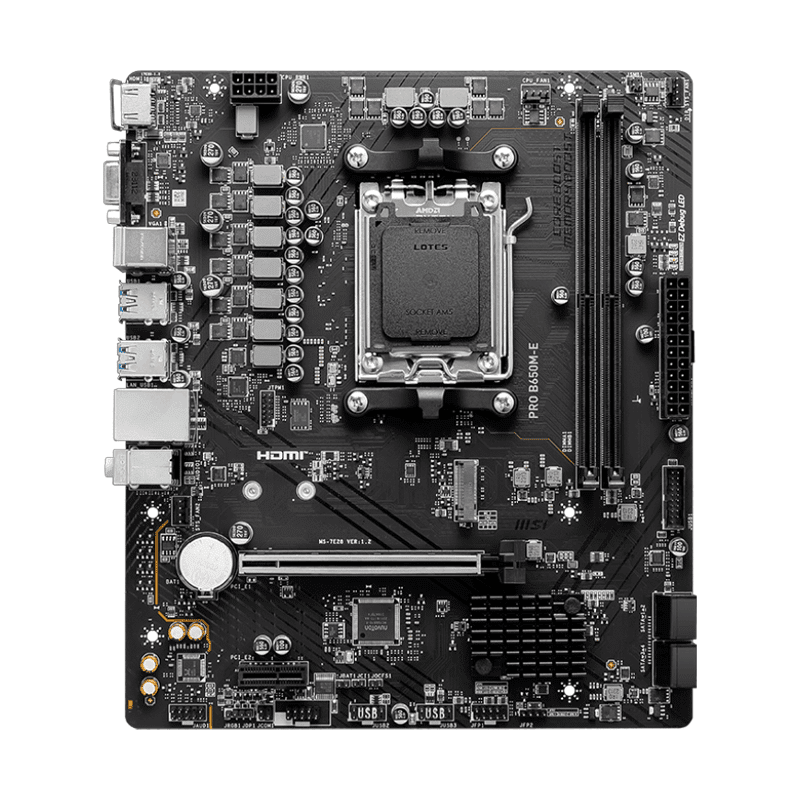

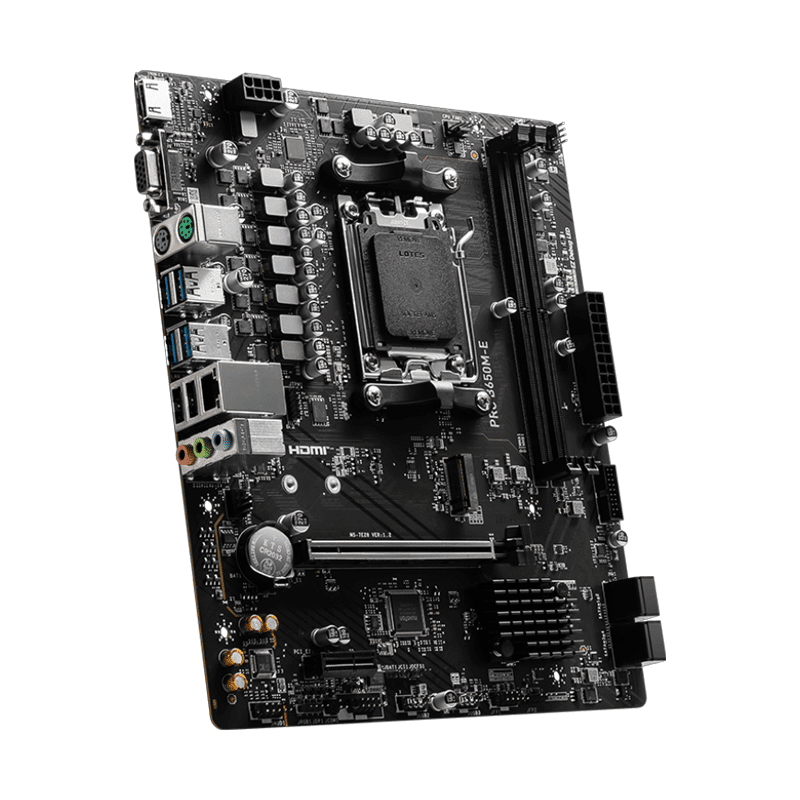

MSI B650M‑E AMD B650 Micro‑ATX Motherboard – Reliable AM5 DDR5 Board

The MSI B650M‑E motherboard delivers essential performance and connectivity for entry‑level and mainstream AM5 systems. Built around the AMD B650 chipset, this Micro‑ATX board supports AMD Ryzen™ 7000, 8000, and 9000 Series desktop processors, providing solid computing power for everyday tasks, gaming, and productivity.

Balanced Performance and Expandability

Equipped with DDR5 memory support up to 128 GB, the MSI B650M‑E maximizes responsiveness and multitasking efficiency. The PCIe 4.0 x16 slot accommodates modern graphics cards, delivering reliable performance in gaming and creative applications without excessive cost.

Essential Connectivity for Modern Builds

This board includes high‑speed LAN for stable network connectivity, multiple USB ports, and flexible storage options with a PCIe 4.0 M.2 slot and SATA interfaces. Its straightforward layout makes it ideal for both first‑time builders and seasoned users seeking a dependable, compact system foundation.

• SPECIFICATIONS
  General
• Chipset: AMD B650
• CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (AM5)
• Socket: AM5
• Form Factor: Micro‑ATX
• Memory
• Memory Type: DDR5 UDIMM
• DIMM Slots: 2
• Maximum Memory: 128 GB
• Supported Speeds: DDR5‑4800 / 5200 / 5600 / 6000+ MHz (OC)
• Dual‑Channel Architecture
• AMD EXPO Profile Support
• Expansion & Storage
• PCIe Slots: 1 × PCIe 4.0 x16
• 1 × PCIe 3.0 x1 Slot
• M.2 Slots: 1 × PCIe 4.0 x4
• SATA: 4 × SATA III 6 Gb/s
• Networking
• LAN: Realtek® RTL8125BG 2.5Gb LAN
• USB / I/O
• Rear USB: USB 5Gbps Type‑A Ports, USB 2.0 Ports
• Front USB: USB 5Gbps & USB 2.0 (via headers)
• Display Outputs
• HDMI™ 2.1 Output (requires CPU with integrated graphics)
• VGA Output (legacy support)
• Audio
• Realtek® ALC897 Codec, 7.1‑Channel High Definition Audio
