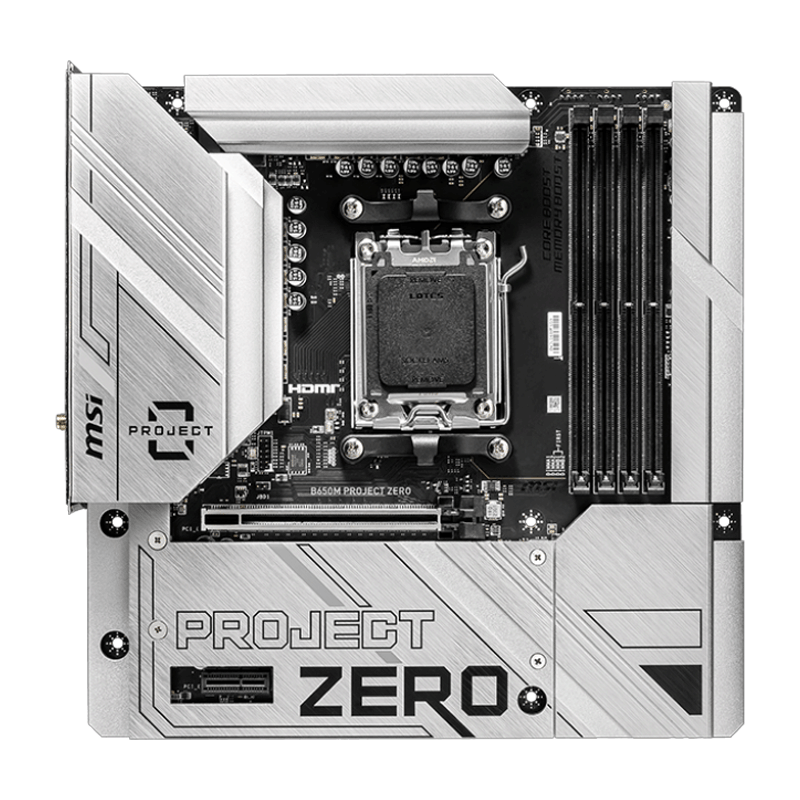

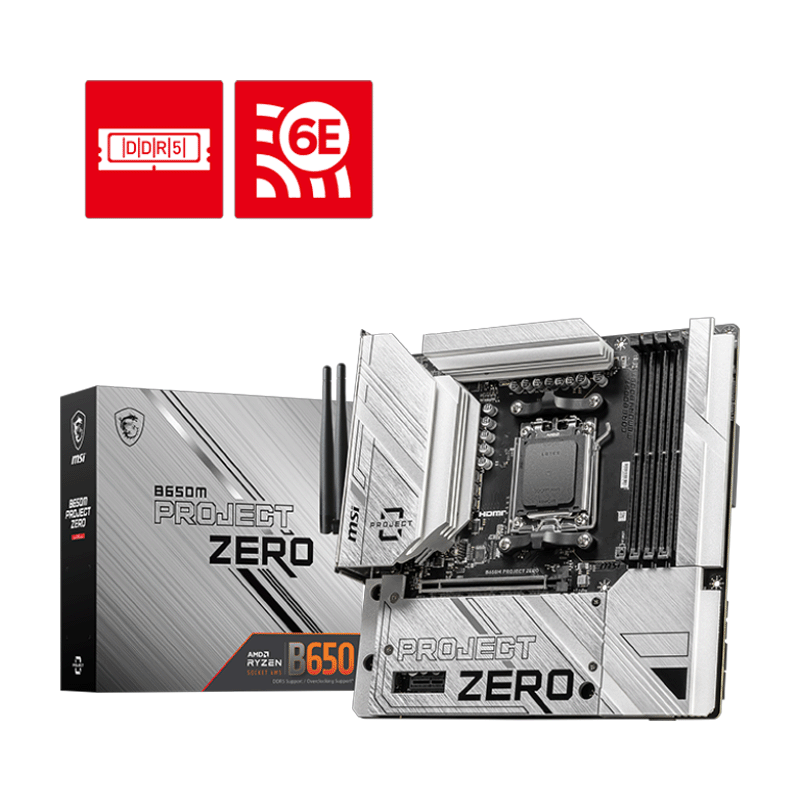

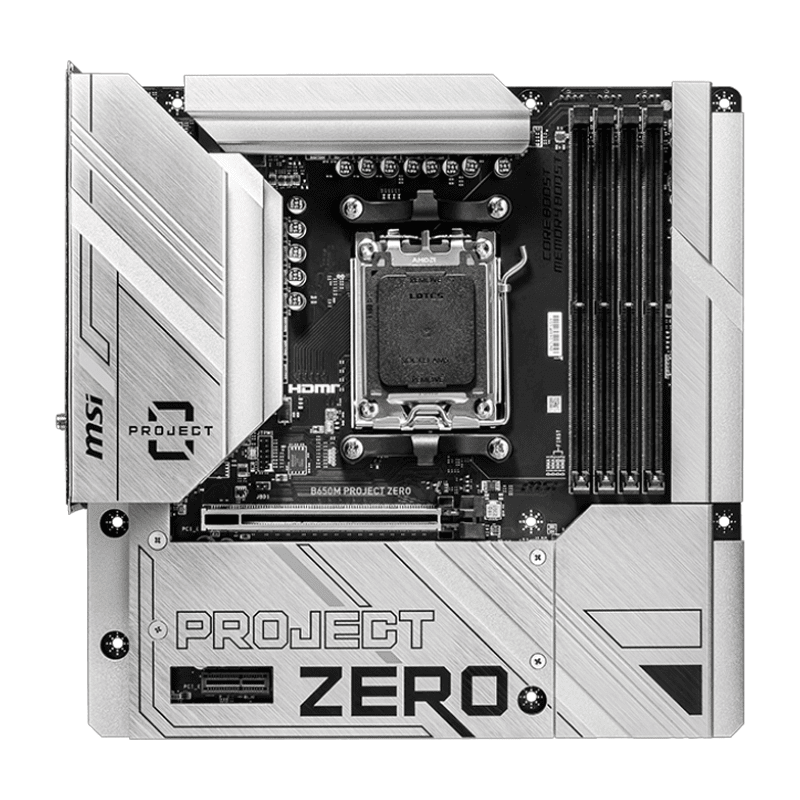

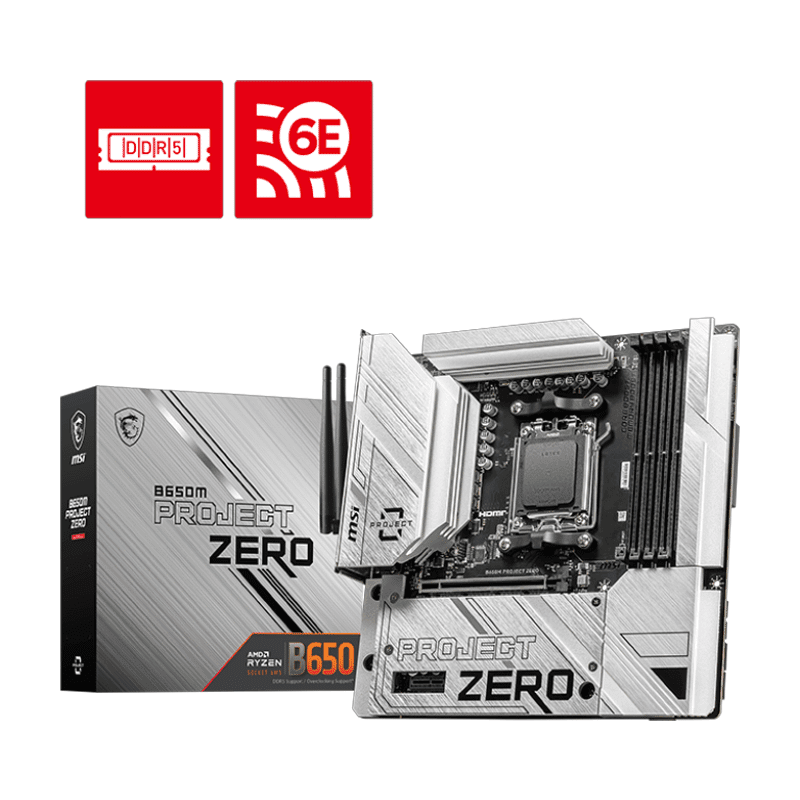

MSI B650M PROJECT ZERO AMD B650 Micro-ATX Motherboard

The MSI B650M PROJECT ZERO motherboard sets a new standard for compact AM5 systems by combining advanced features with a cleaner build aesthetic. Designed on the AMD B650 chipset, this board supports Ryzen™ 7000, 8000, and 9000 Series desktop processors for strong performance in gaming and productivity workloads.

Modern Networking and Connectivity

Equipped with built‑in Wi‑Fi 6E and high‑speed 2.5G Ethernet, the B650M PROJECT ZERO ensures fast and stable connectivity for online gaming, streaming, and large‑file transfers. The board also includes a USB 3.2 Gen 2×2 20G port for rapid data transfers with compatible devices.

Responsive Memory and Storage Support

With support for DDR5 memory up to 7600+ MHz (OC) and dual PCIe 4.0 M.2 slots, this motherboard delivers responsive multitasking and storage performance. Whether building a compact gaming rig or a productivity system, users get solid memory performance and quick storage access.

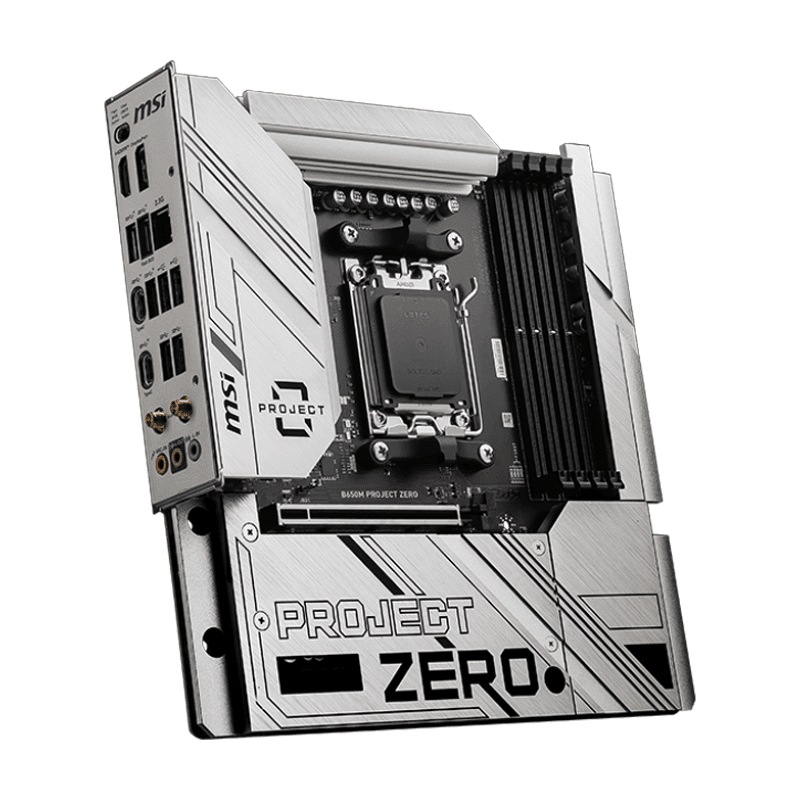

The unique design of the MSI B650M PROJECT ZERO also places key connectors on the back of the board for a cleaner front‑facing build, making it ideal for showcase systems and compact builds.

•  SPECIFICATIONS
  General
• Chipset: AMD B650
• CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (AM5)
• Socket: AM5
• Form Factor: Micro‑ATX (243.84 × 243.84 mm)
• Memory
• 4 × DDR5 DIMM slots
• Maximum Memory: Up to 256 GB
• Supported Memory Speeds: DDR5‑7600+ (OC) and below
• Expansion & Storage
• PCIe 4.0 ×16 slot
• PCIe 3.0 ×1 slot
• 2 × M.2 slots (PCIe 4.0)
• SATA III ports (varies by region)
• Networking
• Realtek® RTL8125BG 2.5G LAN
• AMD Wi‑Fi 6E and Bluetooth® 5.3
• USB / I/O
• USB 3.2 Gen 2×2 20G Type‑C
• Rear USB Ports including USB 5Gbps and USB 2.0 (varies)
• HDMI™ 2.1 (Display Output)
• DisplayPort 1.4 (Display Output)
• Audio
• High‑Definition 7.1‑Channel Audio
