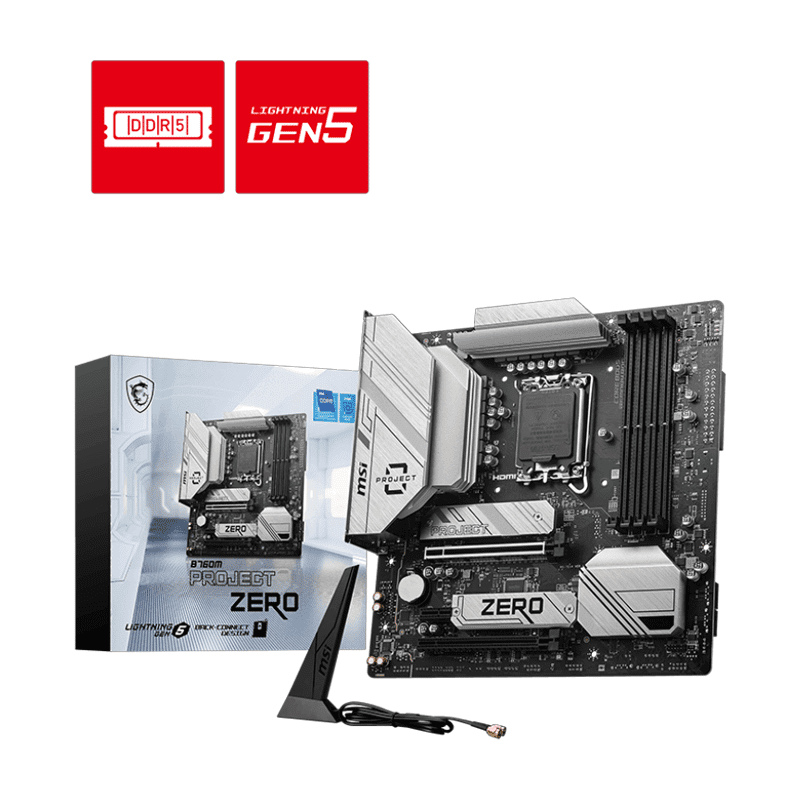

MSI B760M PROJECT ZERO motherboard Intel B760 Micro‑ATX board

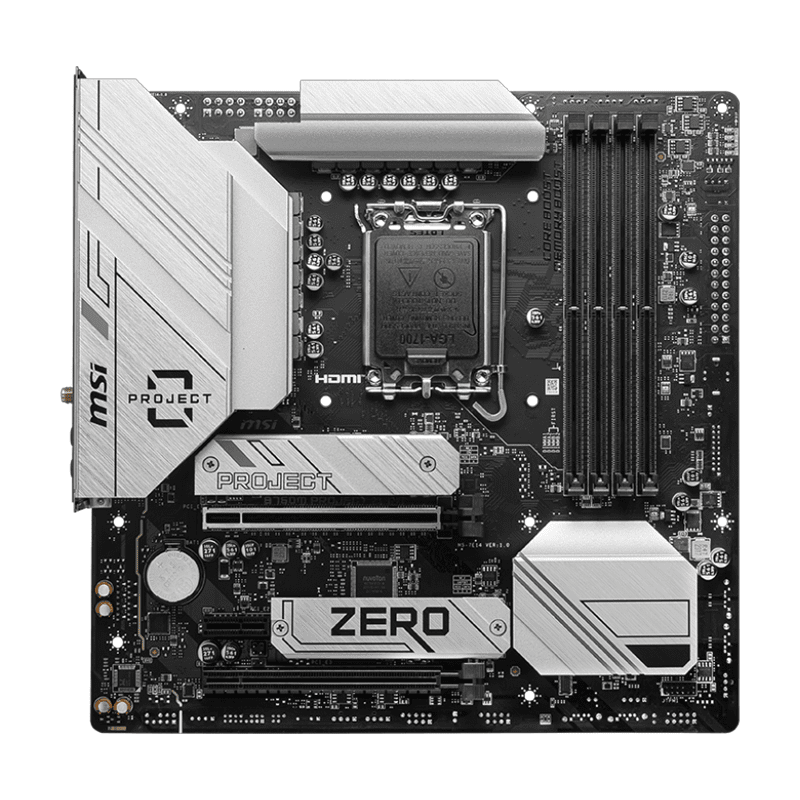

MSI B760M PROJECT ZERO Intel B760 Micro‑ATX Motherboard – Compact Performance DDR5 Board - Image 2

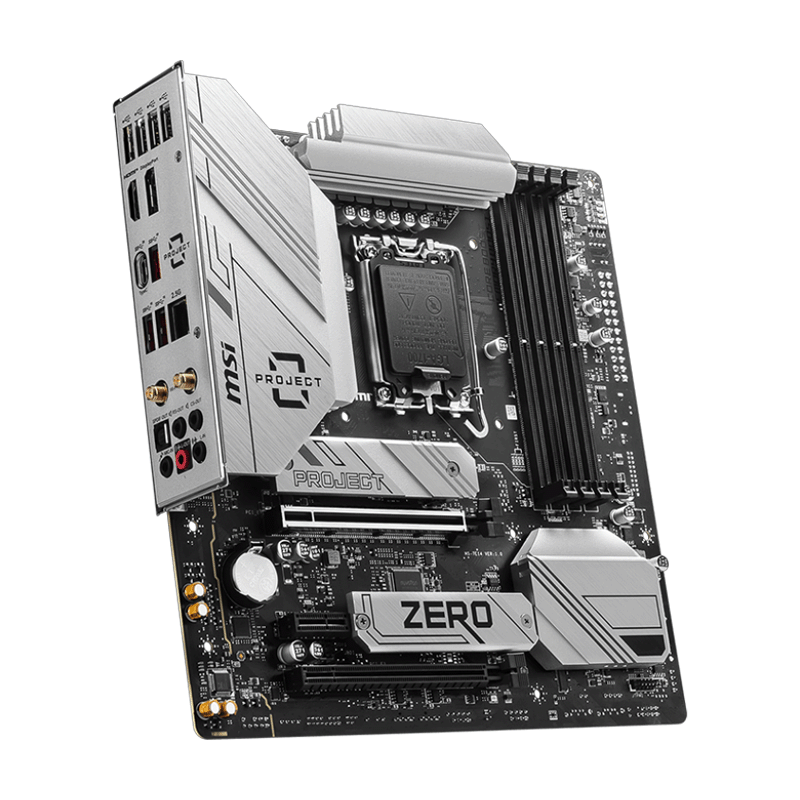

MSI B760M PROJECT ZERO Intel B760 Micro‑ATX Motherboard – Compact Performance DDR5 Board - Image 3
MSI B760M PROJECT ZERO motherboard Intel B760 Micro‑ATX board

MSI B760M PROJECT ZERO Intel B760 Micro‑ATX Motherboard – Compact Performance DDR5 Board

  • Type: Micro‑ATX Motherboard
  • Key Spec 1: Intel B760 Chipset – LGA1700 Socket
  • Key Spec 2: Supports Intel® Core™ 14th/13th/12th Gen CPUs
  • Key Spec 3: DDR5 Memory, up to 7800+ MHz (OC)
  • Compatibility / Feature: Wi‑Fi 6E + Bluetooth 5.3, 2.5Gb LAN, PCIe 5.0
  • Packaging: Micro‑ATX motherboard with accessories
  • Warranty: 1 Year Local Warranty
    Official Manufacturer Page:

    MSI B760M PROJECT ZERO motherboard

₨69,000.00

The MSI B760M PROJECT ZERO motherboard sets a new standard in compact performance with a feature‑rich Micro‑ATX form factor and the Intel B760 chipset. Designed to support Intel® Core™ 12th, 13th, and 14th Gen processors, this board delivers responsive gaming and productivity performance with DDR5 memory support up to 7800+ MHz (OC).

Clean Build and Modern Connectivity

The MSI B760M PROJECT ZERO integrates Intel Wi‑Fi 6E with Bluetooth 5.3 and 2.5Gb LAN, offering fast and stable wireless and wired networking for immersive online gaming and seamless video conferencing. Its PCIe 5.0 x16 slot accommodates the latest graphics cards and high‑speed expansion cards to support demanding workloads.

Enhanced Memory and Storage Support

With four DDR5 DIMM slots and dual M.2 slots supporting PCIe 4.0 storage, this motherboard ensures rapid data access and efficient multitasking. The combination of advanced storage and memory performance makes it ideal for both gaming and creative productivity.

The B760M PROJECT ZERO also incorporates smart design features, such as a back‑connect layout for cleaner cable management and an enhanced thermal solution, to maintain stability under heavy workloads.

  • SPECIFICATIONS
    General
  • Chipset: Intel B760
  • CPU Support: Intel® Core™ 14th/13th/12th Gen, Intel Pentium® Gold, Celeron® (LGA1700)
  • Form Factor: Micro‑ATX (243.84 × 243.84 mm)
  • Memory
  • 4 × DDR5 UDIMM Slots
  • Maximum Memory: 256 GB
  • Supported Speeds: DDR5‑4800 to 7800+ MHz (OC)
  • Dual‑Channel Memory Architecture
  • Expansion & Storage
  • PCIe 5.0 x16 Slot (From CPU)
  • PCIe 4.0 x16 (x4 Mode) and PCIe 3.0 x1 Slots
  • M.2 Slots: 2 × (PCIe 4.0 x4 / SATA compatible)
  • SATA III Ports: 4 ×
  • RAID Support: 0, 1, 5, 10 (SATA)
  • Networking
  • LAN: Realtek® 2.5Gbps Ethernet
  • Wireless: Intel® Wi‑Fi 6E (802.11ax) with MU‑MIMO
  • Bluetooth: Bluetooth® 5.3
  • USB / I/O
  • Rear USB: 1 × USB 20Gbps Type‑C, 3 × USB 10Gbps Type‑A, 4 × USB 2.0
  • Front USB: 1 × USB 10Gbps Type‑C, 2 × USB 5Gbps Type‑A, 4 × USB 2.0 (via headers)
  • Display Outputs
  • HDMI™ 2.1 (4K @ 60 Hz)
  • DisplayPort 1.4 (4K @ 60 Hz)
  • Audio
  • Realtek® ALC897 7.1‑Channel High‑Definition Audio with S/PDIF Out
SKU: MSI‑B760M‑PROJECTZERO Category: Brand:
