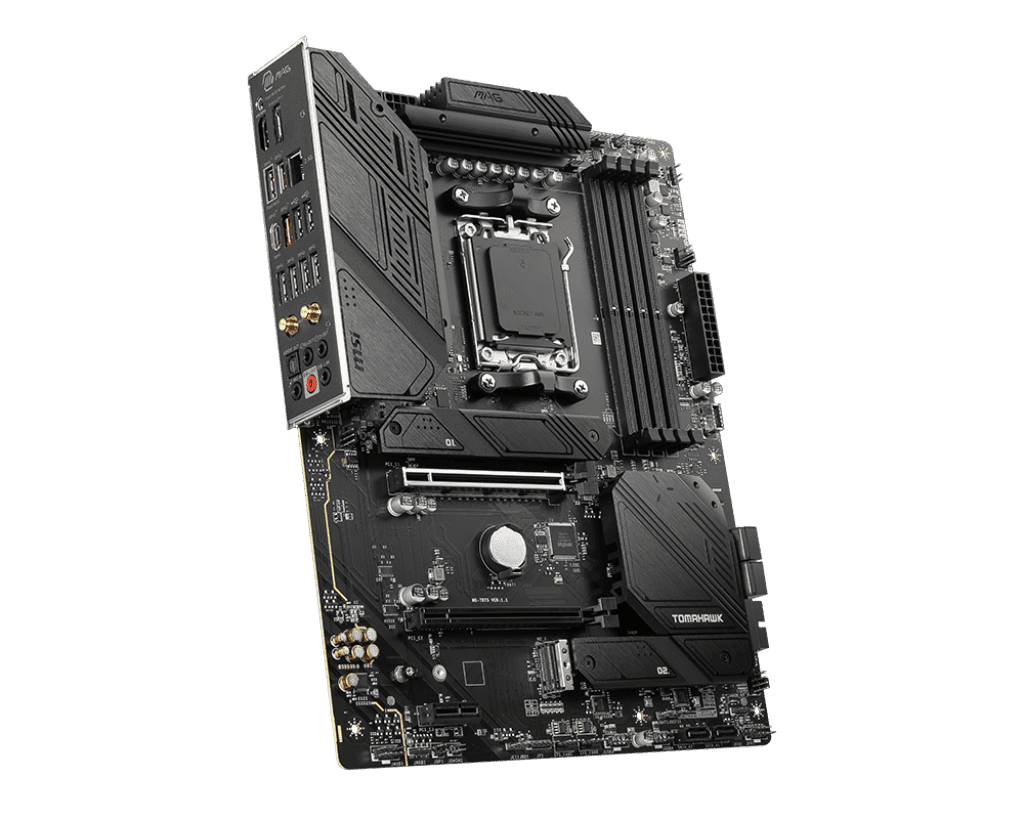

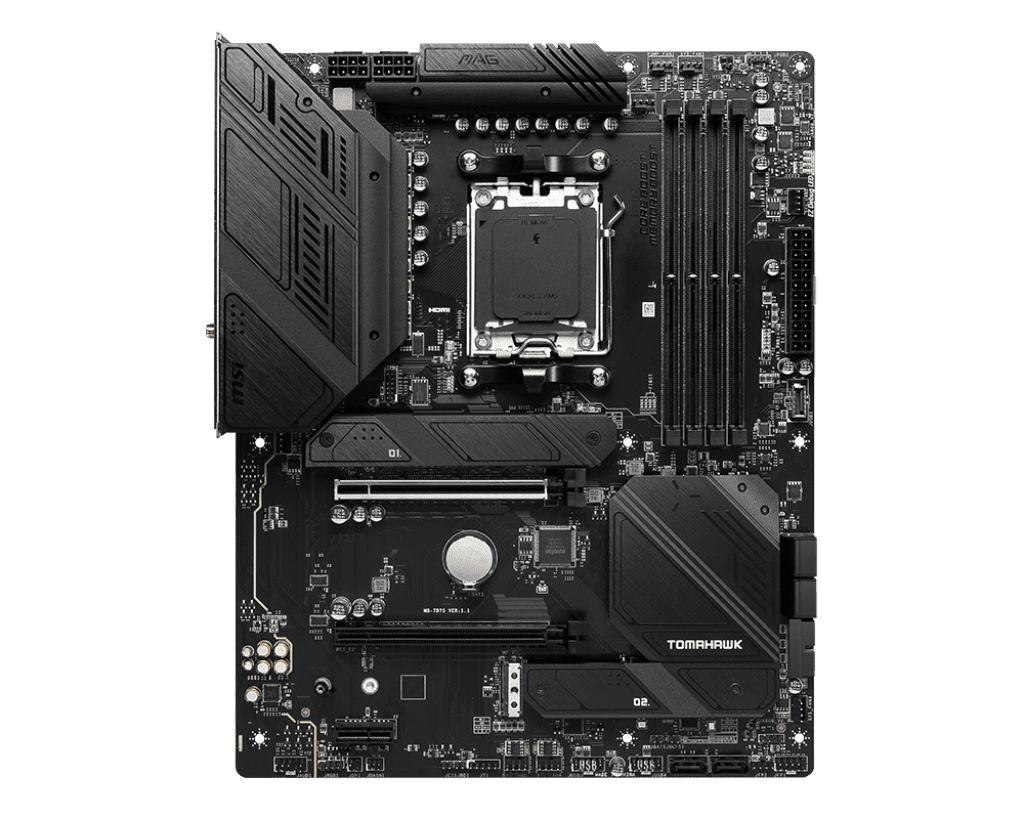

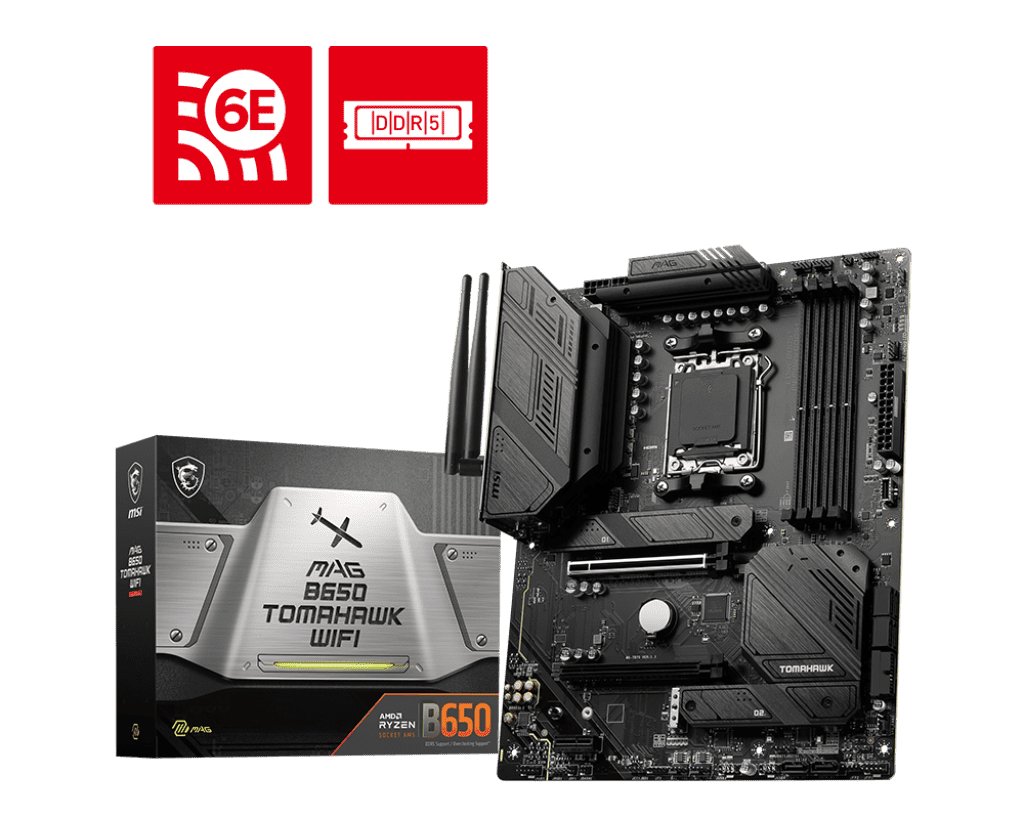

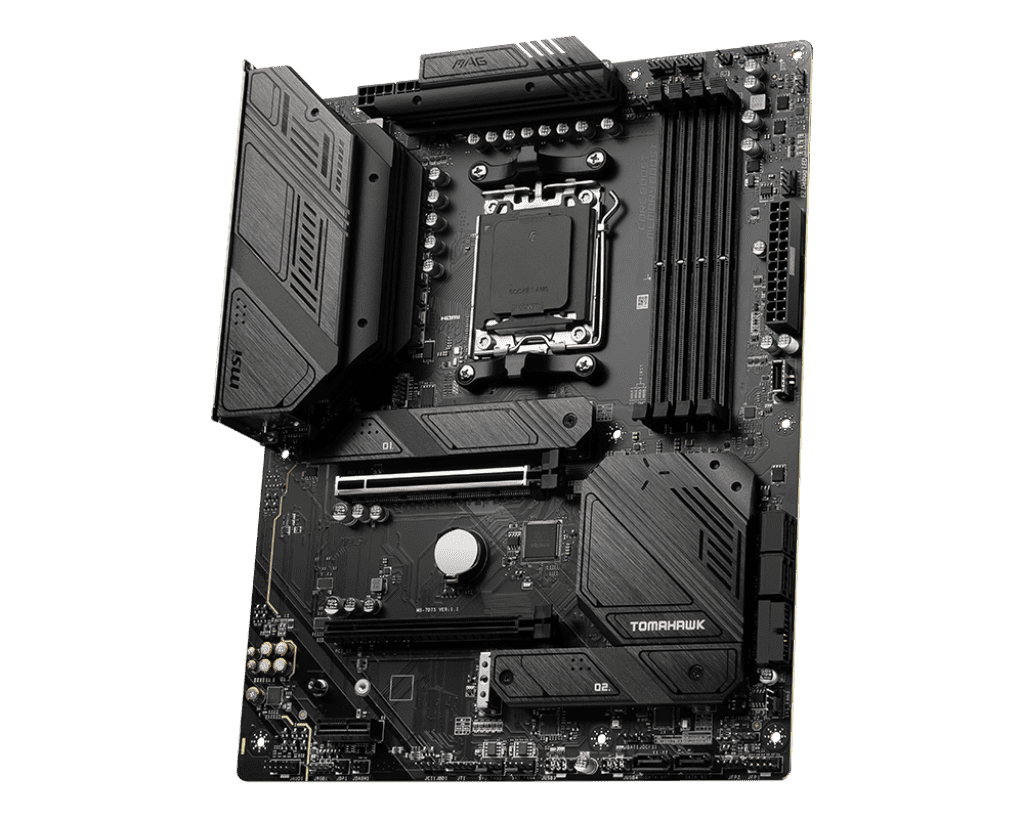

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Gaming Motherboard – DDR5 Performance

The MSI MAG B650 TOMAHAWK WIFI motherboard delivers powerful AM5 platform performance with advanced features for gaming and content creation. With the focus keyphrase at its core, this board supports AMD Ryzen 7000, 8000, and 9000 Series desktop processors on the AM5 socket and leverages high‑speed DDR5 memory support for responsive system performance.

Engineered for High‑Speed DDR5 Memory

This AM5 motherboard supports DDR5 memory overclocking up to 7600+ MHz (OC), enabling fast bandwidth for multitasking and productivity workflows. Dual‑channel memory architecture and multiple DIMM slots give builders the flexibility to configure up to 256 GB of RAM, which helps in gaming, streaming, and professional workloads.

Expandability and Connectivity for Modern Builds

The MSI MAG B650 TOMAHAWK WIFI features multiple PCIe 4.0 slots to support discrete graphics cards and additional expansion cards. Integrated Wi‑Fi 6E and Bluetooth 5.2 provide fast wireless connectivity, while 2.5Gb Ethernet ensures stable wired networking. Three M.2 PCIe 4.0 x4 slots plus SATA storage options allow extensive storage configurations.

Premium Features for Gaming and Productivity

Premium thermal solutions including extended heatsinks and M.2 Shield Frozr help maintain performance under heavy loads. Additional enhancements such as USB 3.2 Gen2x2 (20 Gbps) ports and high‑quality audio codecs improve both gaming sound and data transfer speeds. This motherboard is ideal for gamers and creators who demand versatile features with reliable performance.

• SPECIFICATIONS
  Model: MSI MAG B650 TOMAHAWK WIFI
  Form Factor: ATX
  Chipset: AMD B650
  CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series Desktop Processors, Socket AM5
• Memory:
• 4× DDR5 DIMM Slots
• Dual Channel
• DDR5 4800 – 7600+ MHz (OC) support
• Maximum Capacity: up to 256 GB
• Graphics Outputs:
• 1× HDMI™ 2.1 (4K @ 60Hz)
• 1× DisplayPort 1.4 (8K @ 60Hz)* (*Supported only with compatible CPUs)
• Expansion Slots:
• 2× PCIe 4.0 x16 (supports x16/x4 modes)
• 1× PCIe 3.0 x1
• Storage:
• 3× M.2 PCIe 4.0 x4 slots (with Shield Frozr)
• 6× SATA 6Gb/s ports
• Networking:
• Wi‑Fi 6E (802.11ax)
• Bluetooth 5.2
• 2.5Gb Ethernet LAN

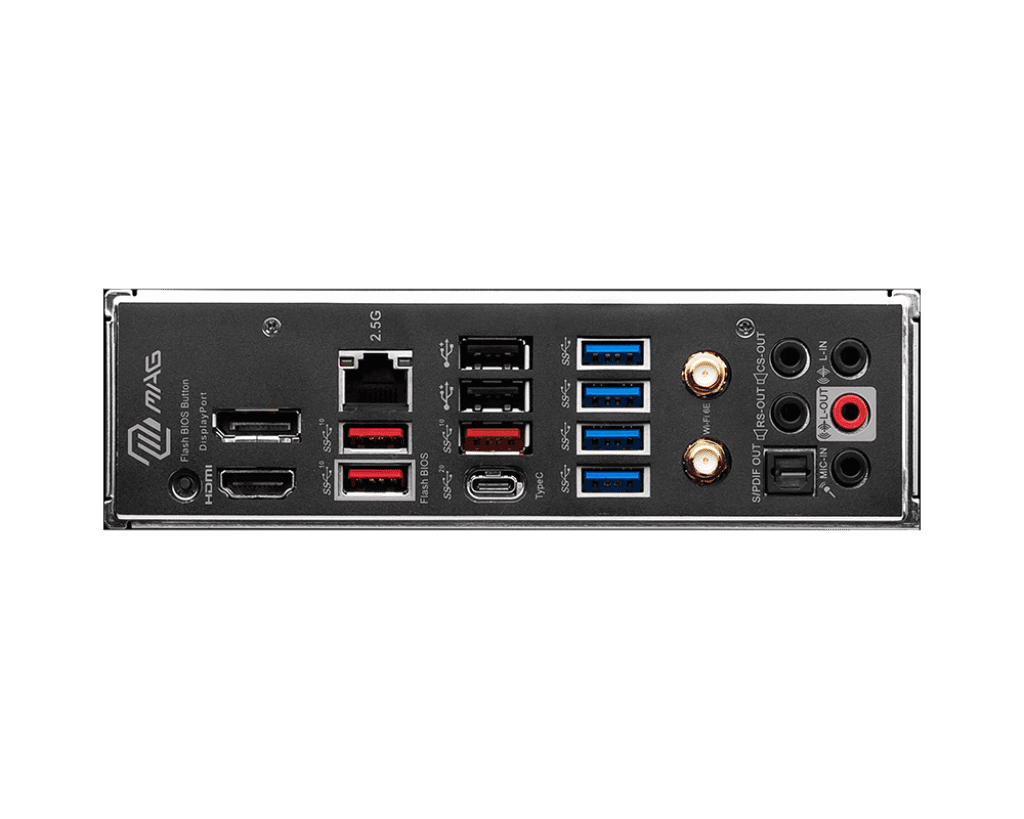

• USB & I/O:
• 1× USB 3.2 Gen2x2 Type‑C (20 Gbps)
• Multiple USB 3.2 Gen2 and Gen1 ports
• USB 2.0 ports
• Audio:
• Realtek ALC4080 High‑Definition Audio Codec
• Audio Boost 5 support
• Thermal & Power:
• Extended heatsink design with premium cooling components
• M.2 Shield Frozr thermal protection
• 14‑Phase power design with Core Boost technology
• Additional Features:
• Integrated I/O shield
• BIOS Flashback & Clear CMOS buttons
• Lightning USB 20G support
• MSI Memory Boost and EXPO support
