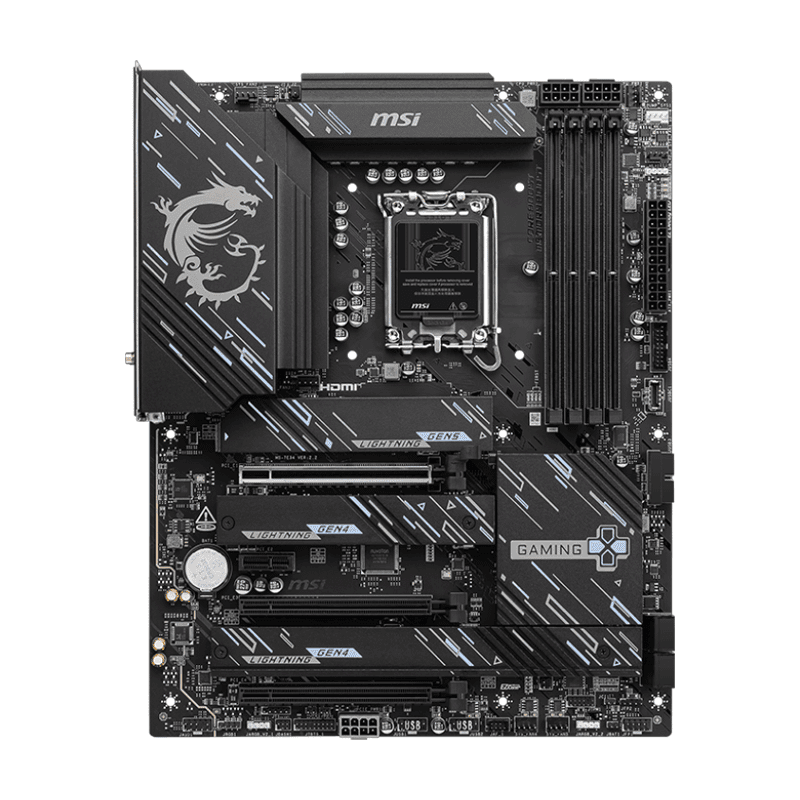

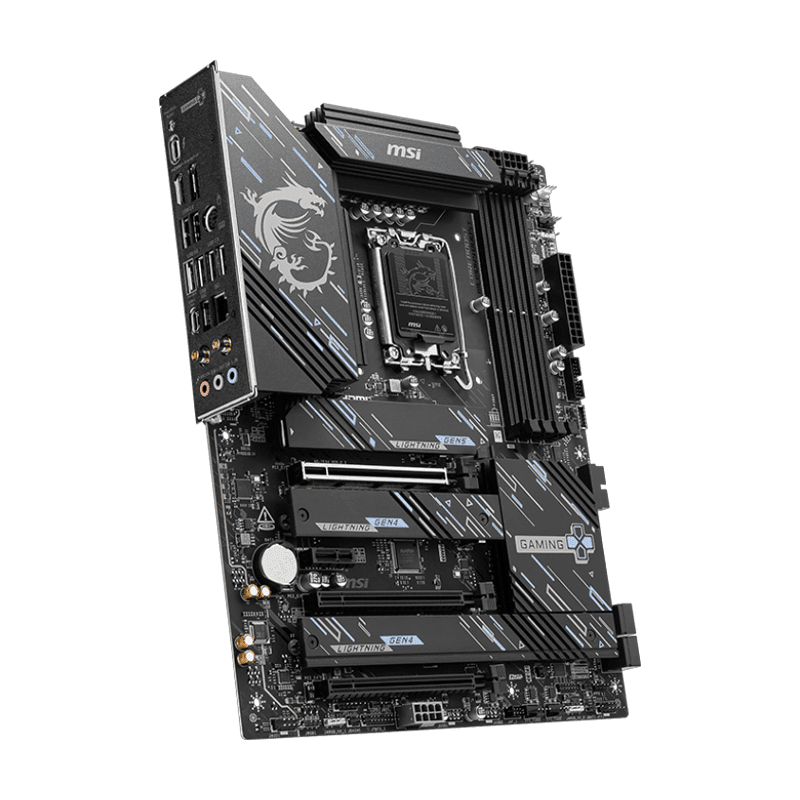

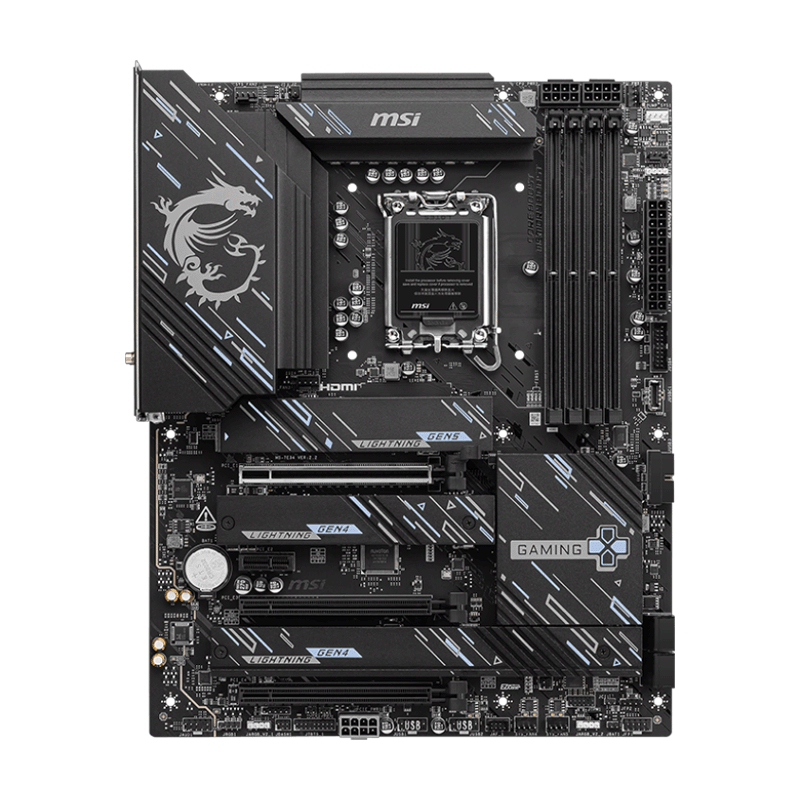

MSI MAG Z890 GAMING PLUS WIFI Intel Z890 ATX Motherboard

The MSI MAG Z890 GAMING PLUS WIFI motherboard delivers a robust foundation for high‑end gaming and productivity builds. Built on the Intel Z890 chipset with support for Intel® Core™ Ultra Series processors, this ATX board offers strong performance and future‑ready features.

Advanced Networking and Connectivity

This motherboard includes built‑in Intel Killer™ Wi‑Fi 7 and a 5Gbps LAN controller to provide fast, stable network performance for online gaming, streaming, and collaboration. Thunderbolt 4 and multiple high‑speed USB options ensure fast data transfer and excellent peripheral support.

Memory and Expansion for Gaming

With support for DDR5 memory at OC speeds up to 9200+ MT/s and a PCIe 5.0 x16 slot, the MSI MAG Z890 GAMING PLUS WIFI enables responsive gameplay, fast loading times, and seamless multitasking. Multiple M.2 slots and SATA ports provide flexible storage options for gamers and creators.

Whether building a competitive gaming rig or a workstation for creative workflows, this board balances performance and features to deliver dependable results.

• SPECIFICATIONS
  General
• Chipset: Intel Z890
• CPU Support: Intel® Core™ Ultra Series Processors (LGA 1851)
• Form Factor: ATX
• Memory
• 4 × DDR5 UDIMM Slots
• Maximum Memory: 256 GB
• Supported Speeds: Up to DDR5‑9200+ MT/s (OC)
• Expansion & Storage
• PCIe 5.0 x16 Slot
• Additional PCIe Slots: PCIe 4.0 x4 and PCIe 4.0 x1
• M.2 Slots: 4 × (PCIe 5.0/4.0 support)
• SATA III Ports: 4
• RAID Support: RAID 0, 1, 5, 10
• Networking
• LAN: Intel® Killer™ E5000 5Gbps
• Wireless: Intel® Killer™ BE1750x Wi‑Fi 7 (M.2 Key‑E)
• Bluetooth: Bluetooth® 5.4
• Rear I/O
• Thunderbolt 4 Port(s)
• USB 20Gbps & USB 10Gbps Ports
• HDMI™ 2.1 & DisplayPort 1.4
• USB 5Gbps and USB 2.0 Ports
• LAN (RJ‑45)
• Audio: 7.1‑Channel High Definition Audio with Realtek
