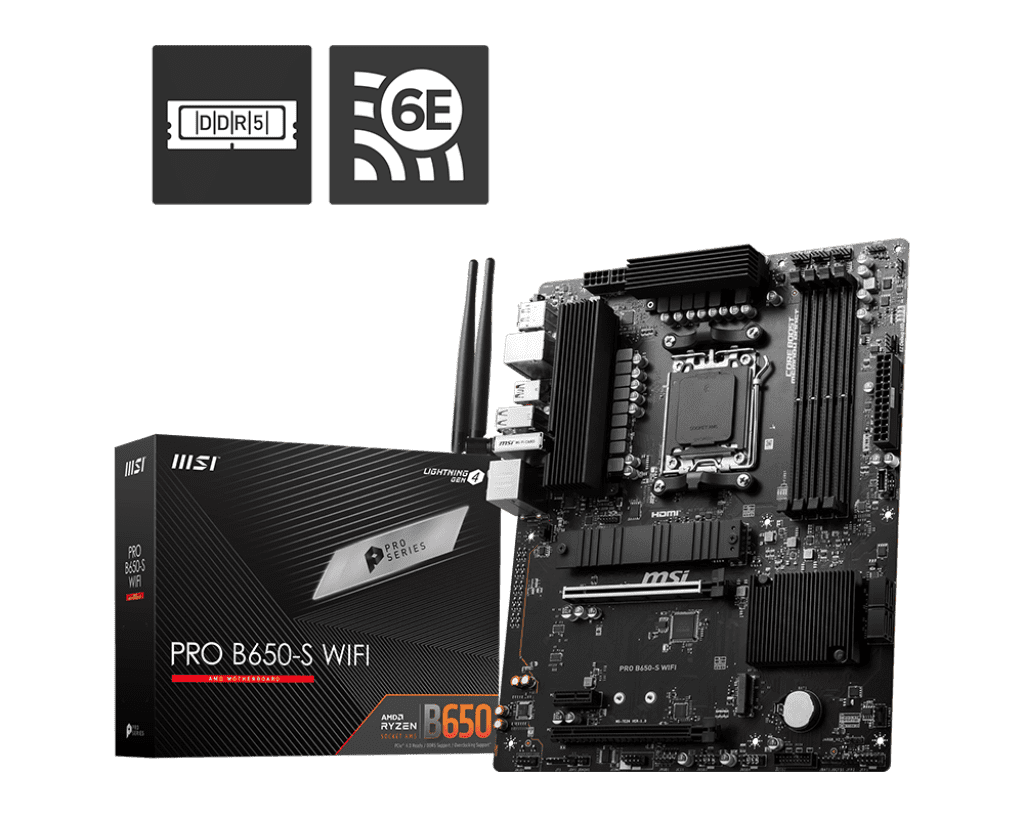

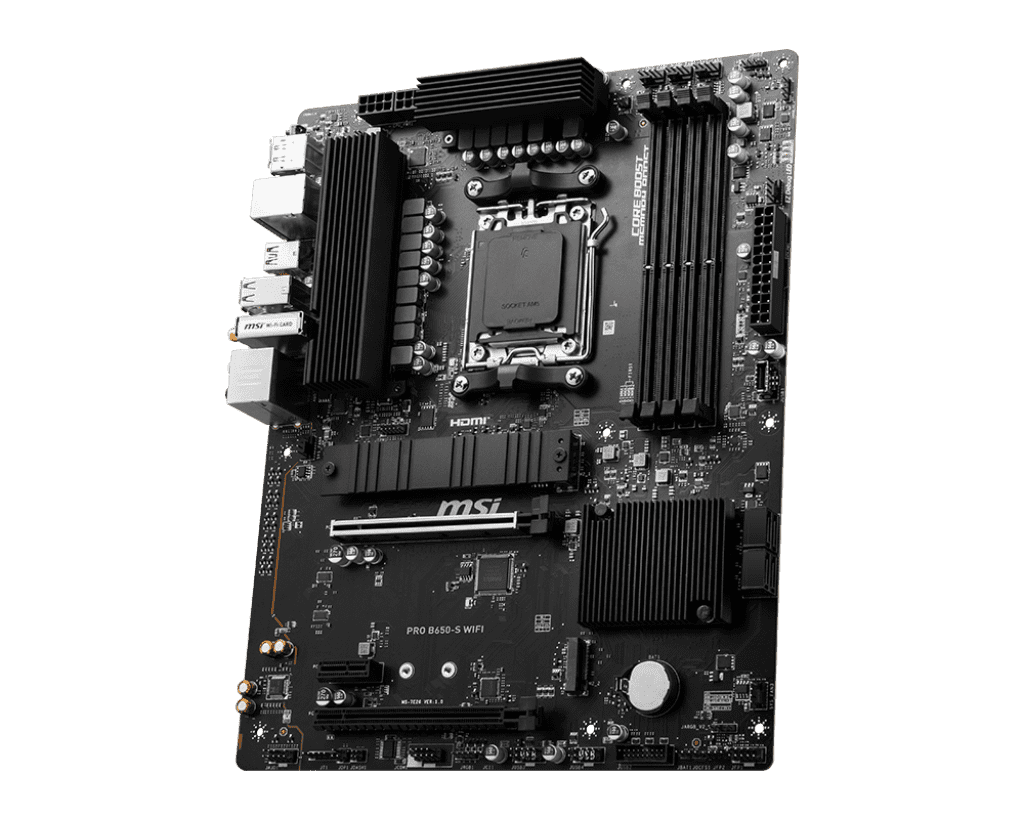

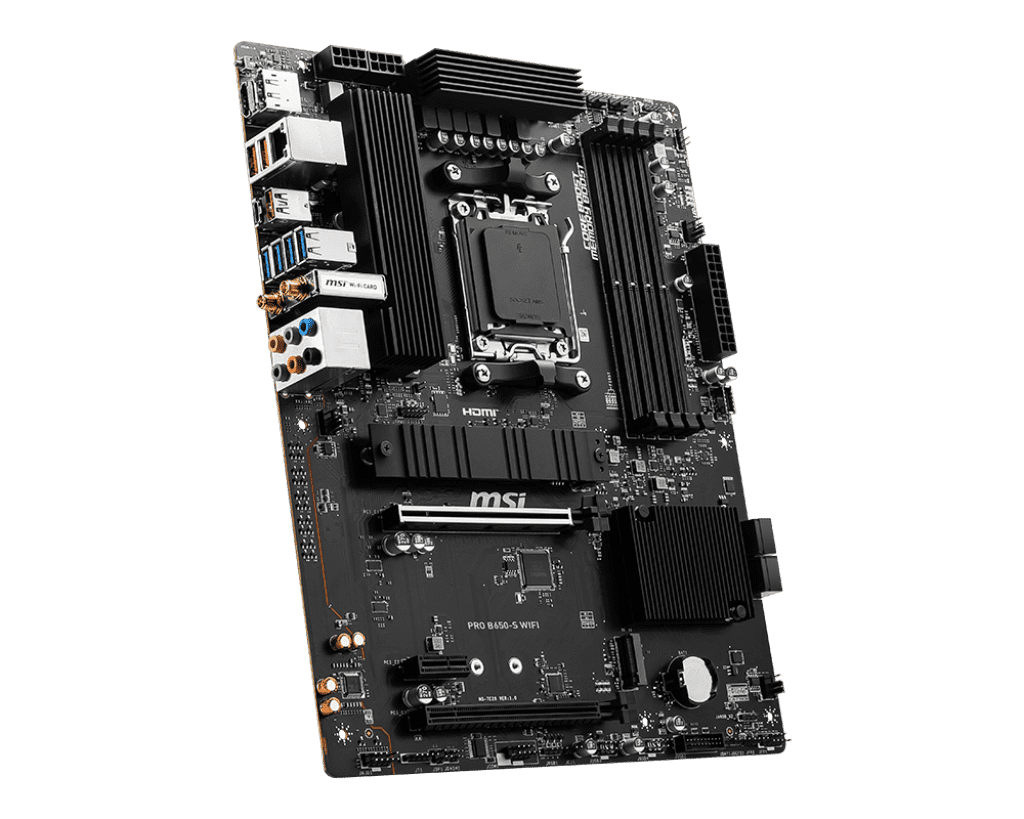

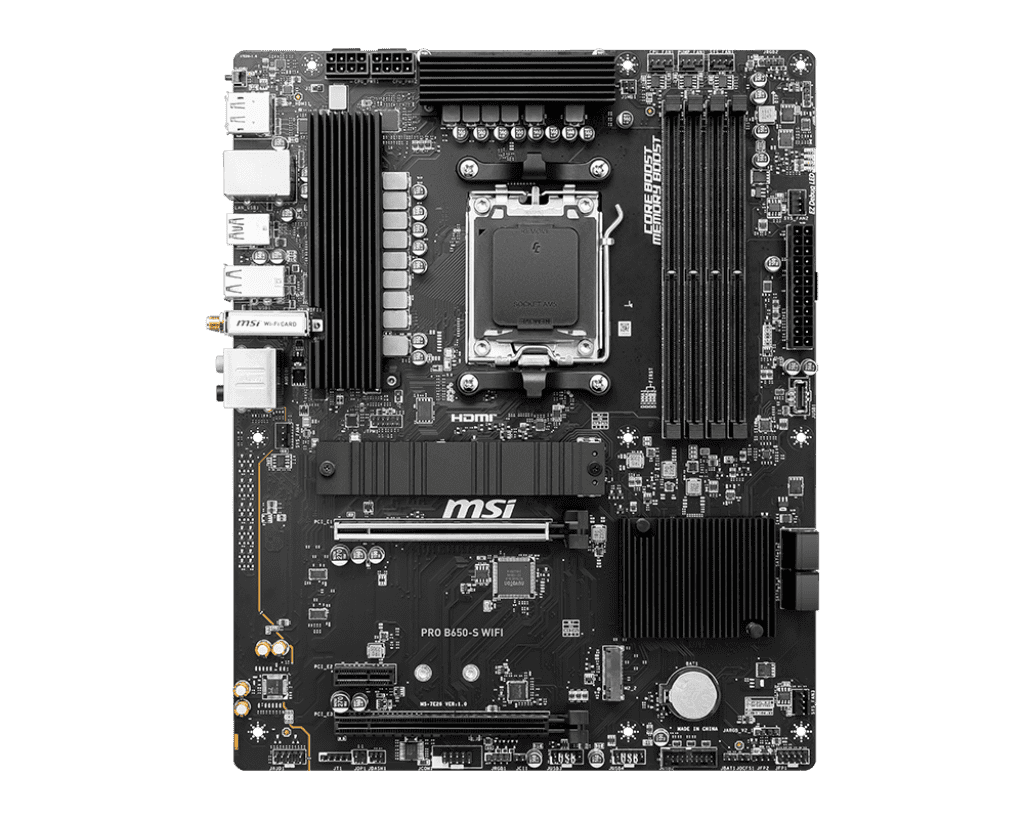

MSI PRO Series B650‑S Wi‑Fi AMD AM5 DDR5 Motherboard – Wi‑Fi 6E Performance

The MSI PRO B650‑S Wi‑Fi DDR5 motherboard delivers efficient and powerful performance for modern AMD desktop builds using the AM5 platform. Designed with the focus keyphrase at its core, this ATX motherboard supports AMD Ryzen™ 7000, 8000, and 9000 Series desktop processors and offers advanced DDR5 memory support for responsive gaming and professional workloads. Its robust feature set addresses connectivity, storage, and system upgrade flexibility for a wide range of use cases.

Reliable DDR5 Performance and Memory Support

Equipped with four DDR5 DIMM slots, the MSI PRO B650‑S Wi‑Fi DDR5 supports up to 7200+ MHz (OC) memory speeds and a total of up to 256 GB capacity, enabling responsive performance for multitasking and compute‑intensive applications. Dual‑channel architecture and AMD EXPO support make memory tuning straightforward for both gamers and creators.

Advanced Connectivity With Wi‑Fi 6E and Networking

Built for modern connectivity, this motherboard includes integrated Wi‑Fi 6E and Bluetooth 5.3 for high‑speed wireless networking and low latency. A 2.5Gb Ethernet port provides fast and stable wired LAN performance for gaming and streaming. Multiple USB 10Gbps and 20Gbps Type‑C ports extend connectivity to external storage and devices with rapid data transfer capabilities.

Expandability and Storage Flexibility

The MSI PRO B650‑S Wi‑Fi DDR5 includes multiple PCIe slots for GPU and expansion cards, as well as dual PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports for flexible storage configurations. Premium thermal solutions, including heatsinks and M.2 Shield Frozr, help maintain consistent performance during extended sessions.

SPECIFICATIONS

• Model: MSI PRO Series B650‑S Wi‑Fi DDR5
  Form Factor: ATX (243.84 × 304.8 mm)
  Chipset: AMD B650
  CPU Support: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors, Socket AM5
• Memory:
• 4× DDR5 DIMM slots (Dual Channel)
• Supports DDR5 4800–7200+ MHz (OC)
• Maximum Memory Capacity: up to 256 GB
• AMD EXPO support
• Graphics Outputs:
• 1× HDMI™ 2.1 (4K @ 60Hz)
• 1× DisplayPort 1.4 (4K @ 60Hz)* (*Requires CPU with integrated graphics)
• Expansion Slots:
• 2× PCIe 4.0 x16
• 1× PCIe 3.0 x1
• Storage:
• 2× M.2 PCIe 4.0 x4 slots (with M.2 Shield Frozr)
• 4× SATA 6Gb/s ports
• Networking:
• Wi‑Fi 6E (802.11ax)
• Bluetooth® 5.3
• Realtek® 8125BG 2.5G LAN

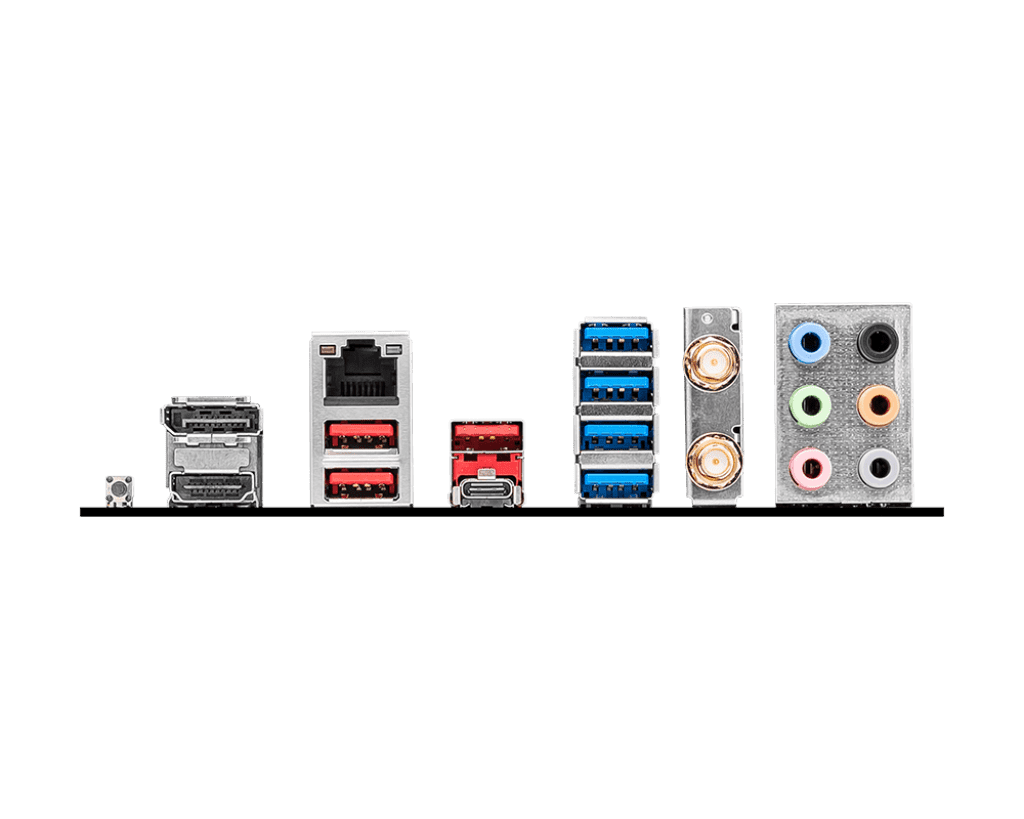

• USB & I/O:
• USB 3.2 Gen2×2 20Gbps Type‑C
• USB 3.2 Gen2 10Gbps Type‑A
• USB 3.2 Gen1 5Gbps
• USB 2.0 Ports
• Audio:
• Realtek® ALC897 7.1‑Channel High Definition Audio
• Thermal & Power:
• Enhanced thermal design with heatsinks and MOSFET pads
• 12+2 Duet Rail Power System with Core Boost & Memory Boost
• Additional Features:
• EZ Debug LED
• Flash BIOS Button
