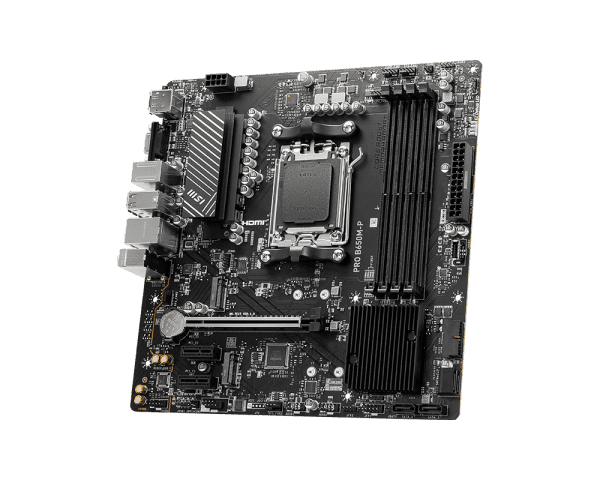

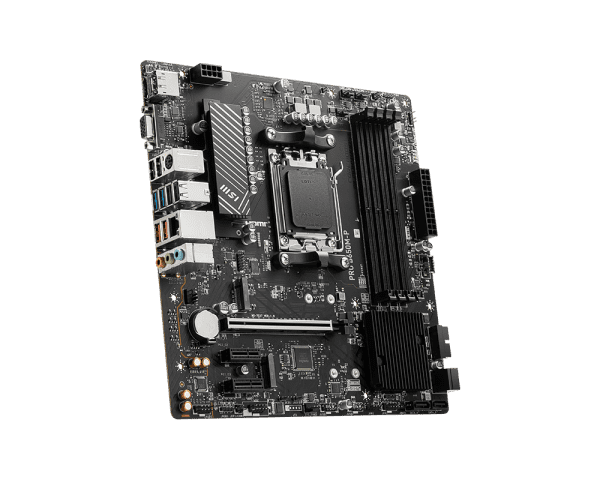

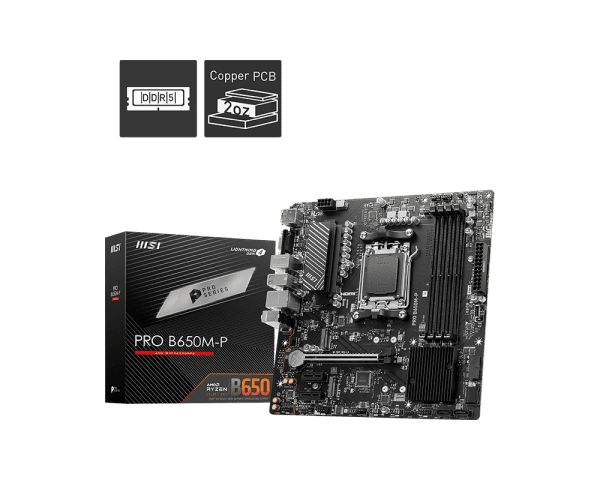

MSI PRO B650M‑P AM5 Micro‑ATX Motherboard – DDR5, PCIe 4.0, 2.5G LAN

The MSI PRO B650M‑P AM5 Micro‑ATX Motherboard delivers a balanced blend of performance, modern connectivity, and efficiency for compact gaming, home, and productivity PC builds. Designed around the powerful AMD B650 chipset, the MSI PRO B650M‑P AM5 Micro‑ATX Motherboard supports the latest AMD Ryzen™ 7000, 8000, and 9000 Series desktop processors for reliable computing and gaming performance.

Compact Performance for Modern Builds

With support for next‑gen DDR5 memory up to 7200+ MHz (OC) and dual‑channel architecture, you get responsive multitasking and smooth performance during gaming or creative tasks. Four memory slots allow up to 256 GB of system memory for future‑proof configurations.

Reliable Connectivity and Expansion

The MSI PRO B650M‑P includes dual M.2 PCIe 4.0 x4 slots for ultrafast NVMe SSDs, four SATA 6 Gb/s ports, and a PCIe 4.0 x16 slot for modern graphics cards. Wired networking is handled by Realtek 8125BG 2.5G LAN for low‑latency online gaming and fast data transfers.

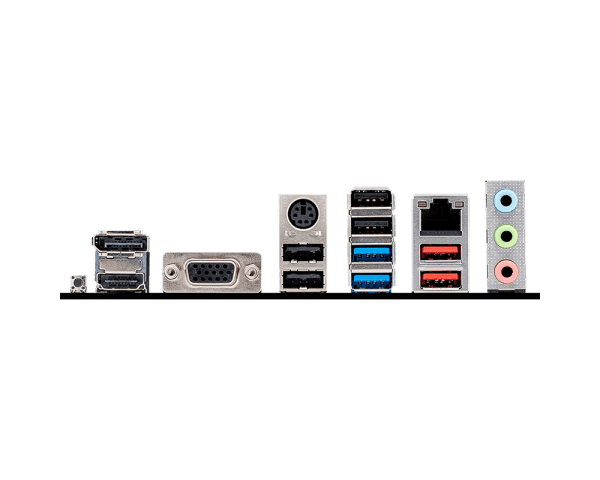

Flexible Display & I/O Support

When paired with AMD CPUs featuring integrated graphics, this board supports HDMI 2.1 and DisplayPort 1.4 outputs for 4K display connectivity. Additional legacy VGA output increases compatibility with older displays. A variety of rear USB ports ensures robust peripheral connectivity without compromising system performance.

Built for Versatility and Reliability

Although compact, the MSI PRO B650M‑P AM5 Motherboard delivers advanced features like EZ Debug LEDs and TPM support for secure system operation. The micro‑ATX form factor enables flexible builds that fit smaller chassis while retaining essential features for gaming, content creation, and everyday computing.

SPECIFICATIONS

• Brand: MSI
• Model: PRO B650M‑P
• Chipset: AMD B650
• Form Factor: Micro‑ATX (243.8 × 243.8 mm)
• CPU Socket: AM5 (Supports Ryzen™ 7000/8000/9000 Series)
• Memory:
• Slots: 4 × DDR5 DIMM
• Capacity: Up to 256 GB
• Speed: DDR5 4800 – 7200+ MHz (OC)
• PCIe Expansion:
• 1 × PCIe 4.0 x16 slot
• 2 × PCIe 3.0 x1 slots
• Storage:
• 2 × M.2 PCIe 4.0 x4 slots
• 4 × SATA 6 Gb/s ports
• Networking: Realtek® 8125BG 2.5G LAN
• Video Outputs:
• 1 × HDMI 2.1
• 1 × DisplayPort 1.4
• 1 × VGA (requires APU with iGPU)
• USB Connectivity:
• Multiple USB 3.2 Gen2 & Gen1 and USB 2.0 ports rear and headers
• Audio: Realtek ALC897 7.1‑Channel HD Audio
• Internal Headers: USB, fan headers, RGB headers, Clear CMOS
• BIOS Features: EZ Debug LEDs, TPM support
• Color: Black
