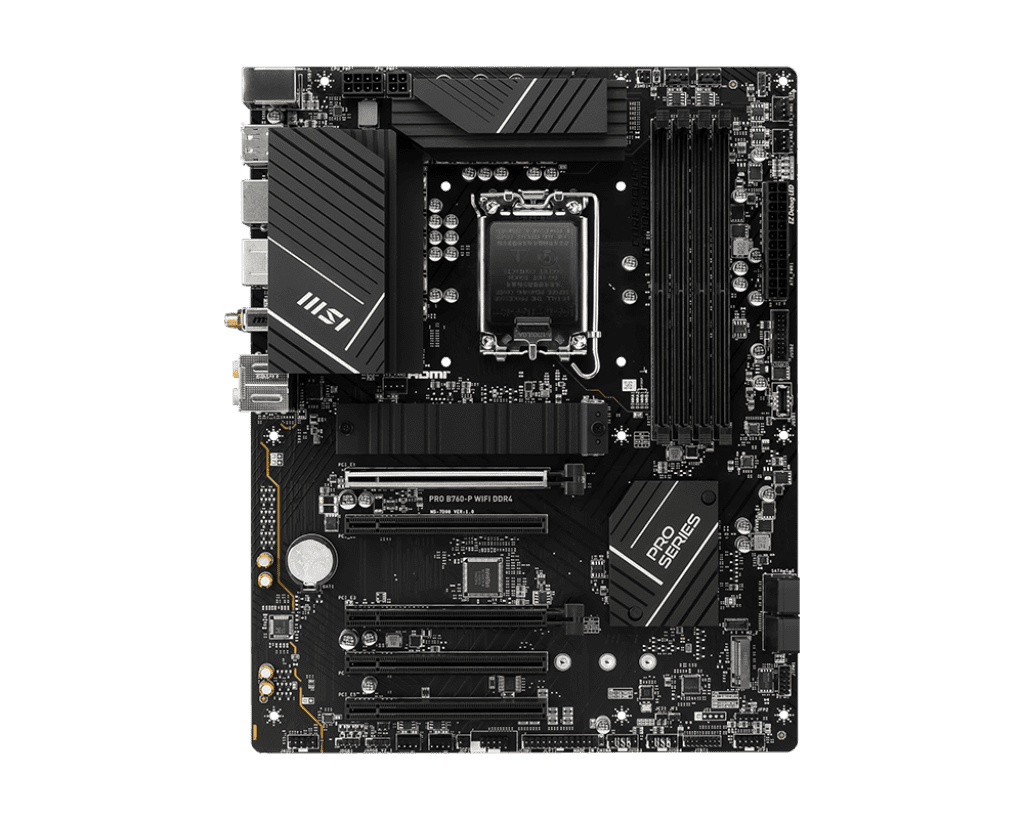

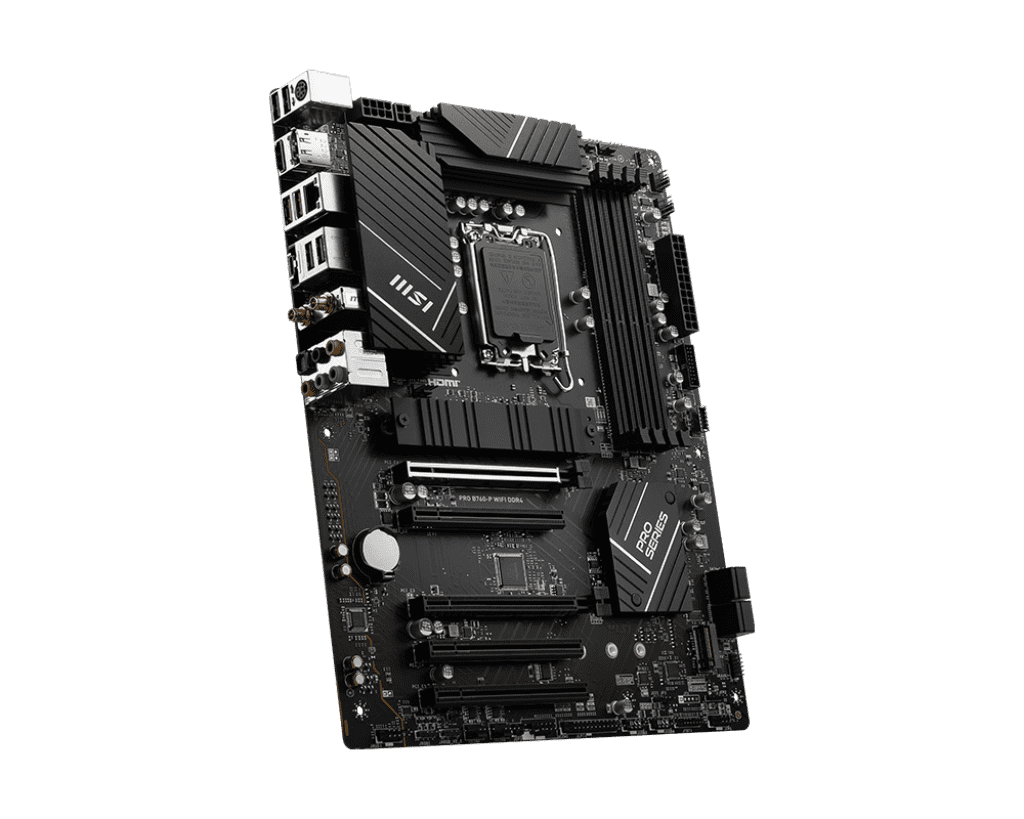

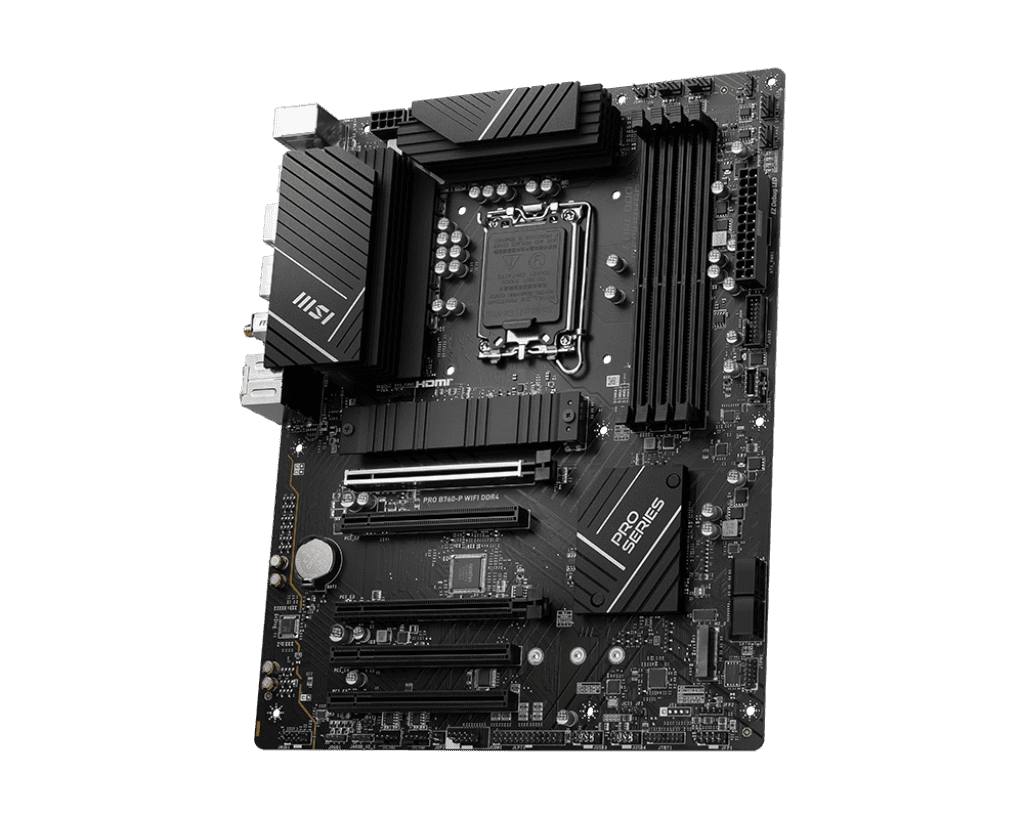

MSI Pro B760‑P WIFI DDR4 LGA1700 Motherboard – ATX Intel B760 Board

Stable Performance with the MSI Pro B760‑P WIFI DDR4 Motherboard

The MSI Pro B760‑P WIFI DDR4 motherboard provides a robust foundation for workstations and gaming PCs using Intel’s latest processors. The MSI Pro B760‑P WIFI DDR4 motherboard supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA1700 socket. Its ATX form factor delivers ample expansion and connectivity options to support versatile builds.

Memory and Storage Flexibility for Modern Systems

This motherboard supports up to 128 GB of dual‑channel DDR4 memory with speeds up to DDR4‑5333 OC, enabling responsive performance in demanding multitasking and gaming scenarios. Onboard storage options include two ultra‑fast M.2 slots, one PCIe 4.0 x4 (CPU) and one PCIe 4.0 x4/SATA (chipset), alongside four SATA 6 Gb/s ports for additional drives.

Connectivity with Wi‑Fi 6E and High‑Speed LAN

The MSI Pro B760‑P WIFI DDR4 motherboard enhances network performance through integrated Intel Wi‑Fi 6E and Bluetooth 5.3, delivering high‑speed wireless connectivity alongside a Realtek RTL8125BG 2.5 Gb Ethernet port for wired networking. Multiple high‑speed USB ports, HDMI 2.1, and DisplayPort 1.4 outputs provide flexible peripheral and display compatibility.

Enhanced Power and Build Quality

Built with a 12+1 power design and Core Boost technology, this board sustains heavy workloads with stable power delivery. Additional features like M.2 Shield Frozr thermal protection and audio boost enhance reliability and immersive performance.

SPECIFICATIONS

• Chipset: Intel B760 Express Chipset
• CPU Socket: Intel LGA1700; supports 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron
• Form Factor: ATX (243.84 mm × 304.8 mm)
• Memory: 4× DDR4 DIMM; up to 128 GB; dual‑channel; DDR4‑5333(OC)/5200(OC)/5000(OC)/4800/…/2133 MHz; Intel XMP support
• PCIe Slots: 1× PCIe 4.0 x16 (CPU); 1× PCIe 4.0 x4 (Chipset); 3× PCIe 3.0 x1
• Storage: 1× M.2 PCIe 4.0 x4 (22110/2280/2260/2242); 1× M.2 PCIe 4.0 x4/SATA (2280/2260/2242); 4× SATA 6 Gb/s
• LAN: Realtek RTL8125BG 2.5 Gb Ethernet
• Wireless: Intel Wi‑Fi 6E + Bluetooth 5.3 (module pre‑installed)

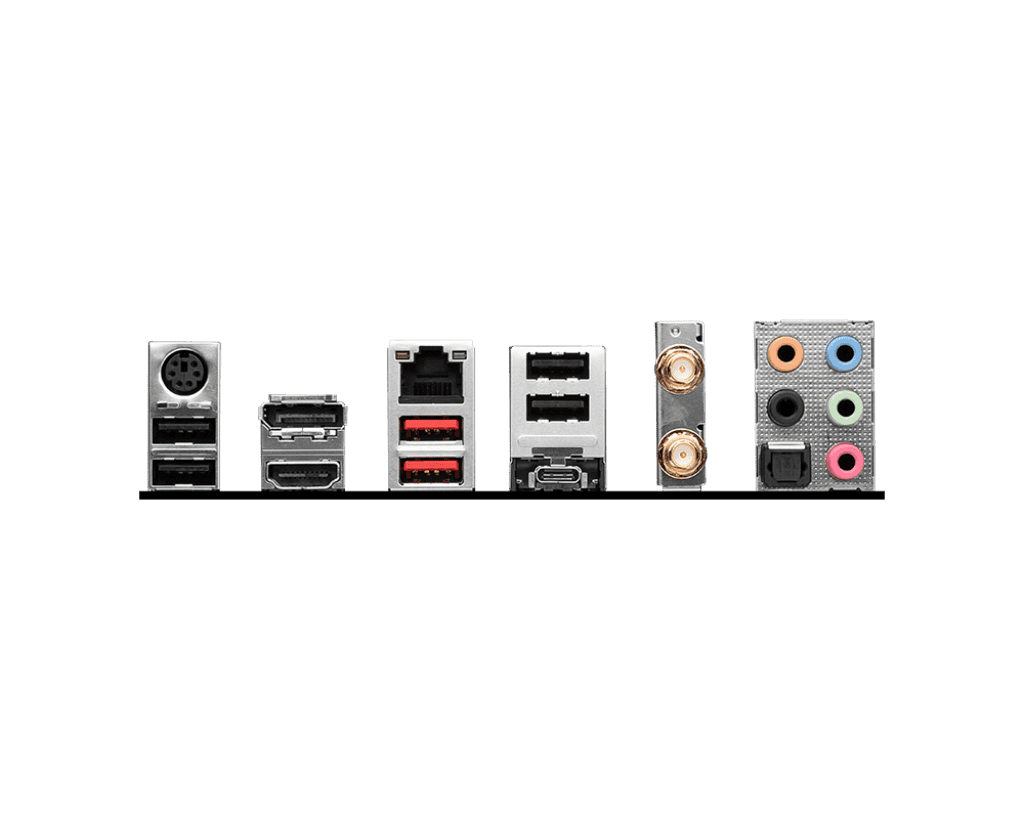

• USB (Rear): 2× USB 3.2 Gen2 Type‑A; 1× USB 3.2 Gen2 Type‑C; 4× USB 2.0
• Video Outputs: HDMI 2.1 (4K 60 Hz); DisplayPort 1.4 (4K 60 Hz)
• Audio: Realtek ALC897 Codec; 7.1‑Channel HD Audio; S/PDIF‑OUT
• LAN Antenna: Dual Wi‑Fi antenna included
• Internal Headers: CPU Fan, Pump Fan, System Fans, RGB/ARGB, TPM 2.0 header, USB headers
• Power Connectors: 24‑pin ATX; 8‑pin + 4‑pin CPU power
• Operating System: Windows 10/11 64‑bit Support
