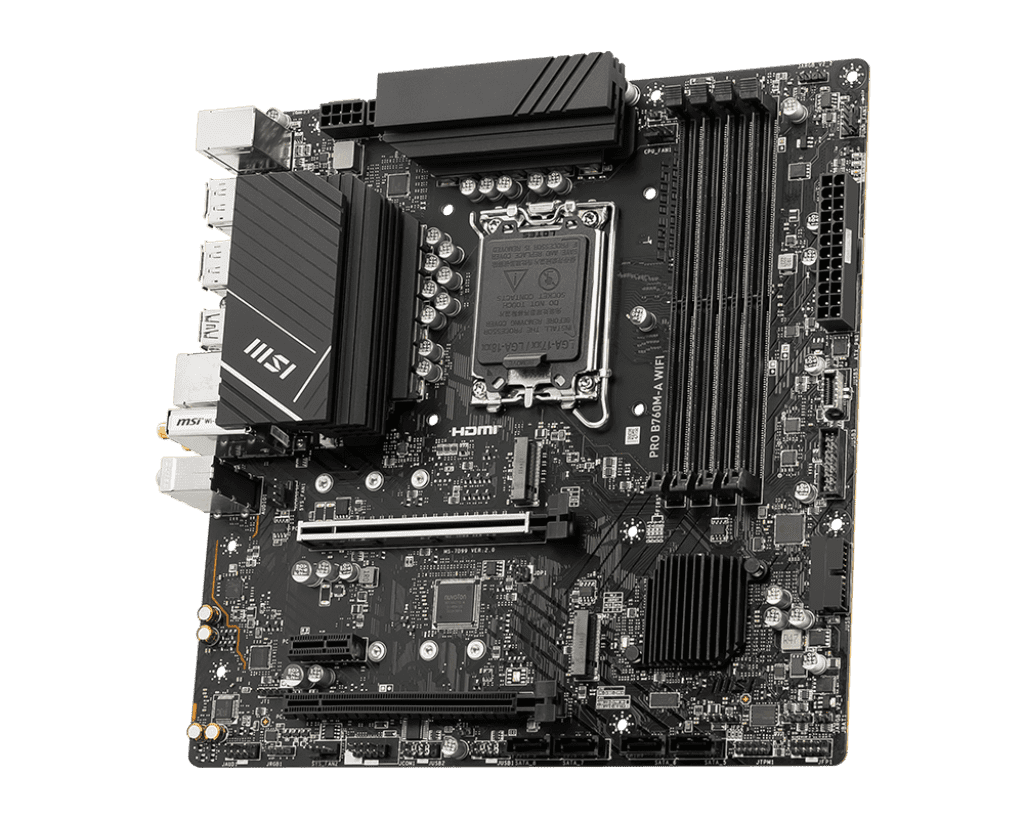

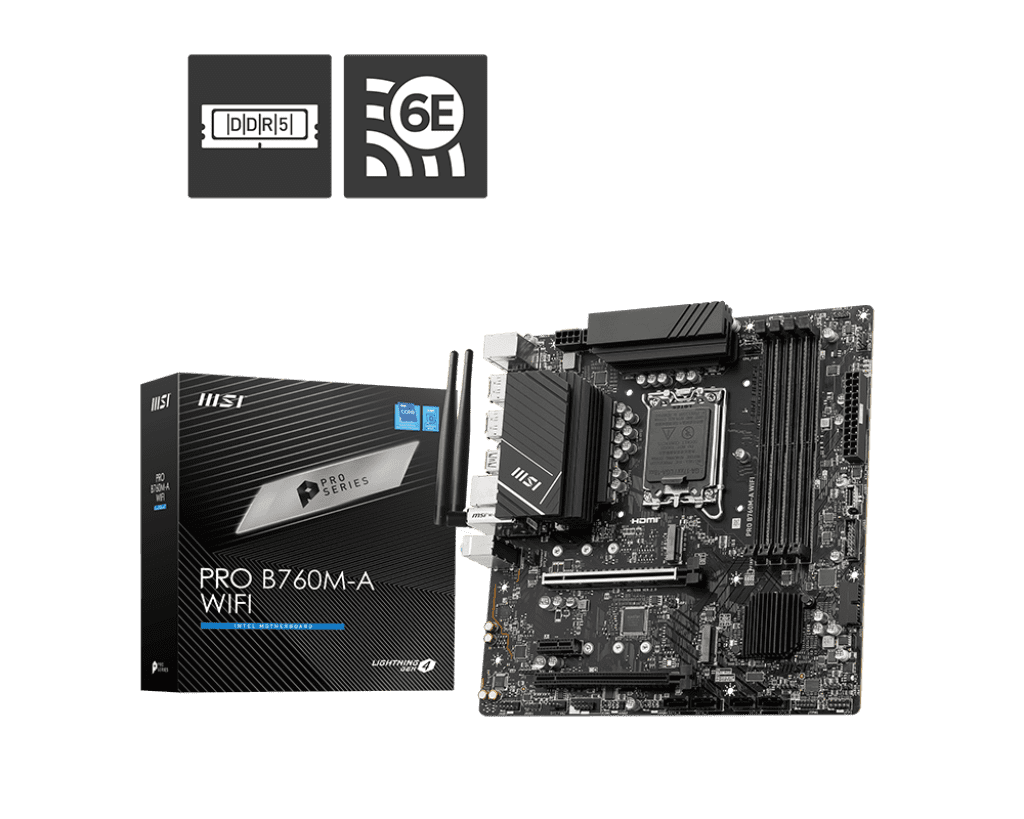

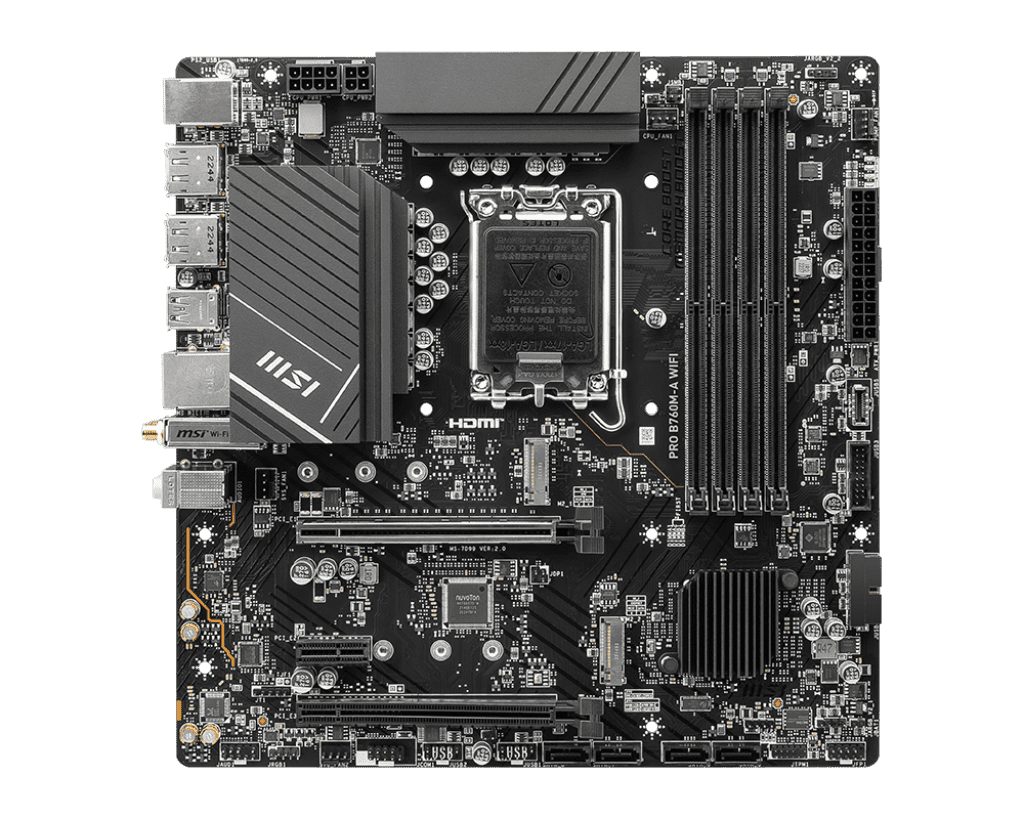

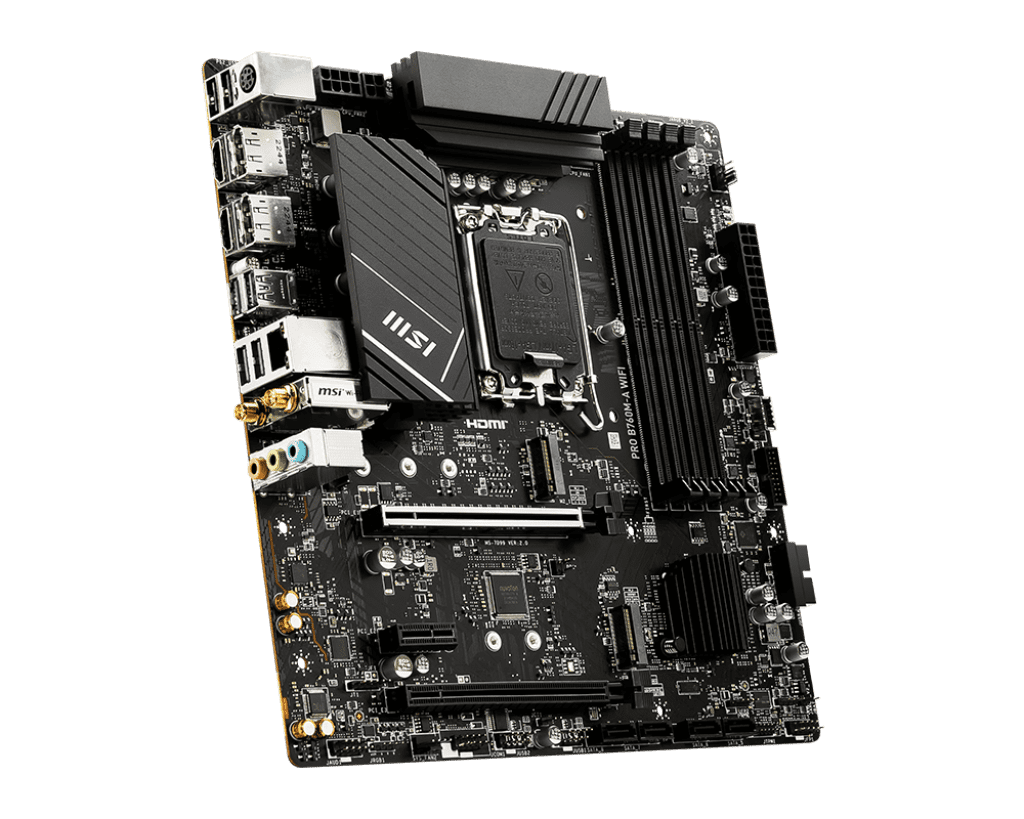

MSI Pro B760M‑A WIFI DDR5 Motherboard – Intel B760 Micro‑ATX Performance

The MSI Pro B760M‑A WIFI DDR5 motherboard offers a compelling balance of stability, connectivity, and performance for modern Intel PC builds. With the focus keyphrase at its core, this board supports Intel’s 12th, 13th, and 14th Gen processors on the LGA1700 socket while leveraging high‑speed DDR5 memory to deliver responsive gaming and productivity performance.

Reliable DDR5 Performance and Expansion

MSI engineered the Pro B760M‑A WIFI DDR5 to maximize platform potential with support for DDR5 memory running at speeds of 6800+ MHz (OC), delivering smooth multitasking and quick application response times. Its PCIe 4.0 x16 slot provides future‑ready graphics support, and additional expansion slots offer flexibility for add‑in components.

Connectivity Designed for Productivity

Integrated Wi‑Fi 6E and Bluetooth 5.3 deliver fast wireless networking, while 2.5G LAN ensures reliable wired connectivity for gaming, streaming, and large file transfers. Dual M.2 slots with PCIe 4.0 x4 support high‑speed NVMe storage options, and multiple SATA ports allow additional storage integration. The board’s robust power design and premium thermal solution keep performance stable under load.

Built for Everyday Use and Gaming

With Audio Boost enhancements and MSI’s user‑friendly BIOS, this motherboard supports both productivity tasks and high‑quality gaming experiences. It combines essential features with professional‑grade hardware to suit mainstream builders, gamers, and creators alike.

SPECIFICATIONS

• Model: MSI Pro B760M‑A WIFI DDR5
  Form Factor: Micro‑ATX
  Chipset: Intel B760
  CPU Support: Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, Intel® Celeron® (LGA1700)
• Memory:
• 4× DDR5 DIMM slots
• Dual‑Channel architecture
• DDR5 4800–6800+ MHz (OC) support
• Maximum capacity: up to 192GB
• Graphics:
• 2× HDMI 2.1
• 2× DisplayPort 1.4 (dependent on CPU graphics support)
• Expansion Slots:
• 1× PCIe 4.0 x16
• 1× PCIe 3.0 x1
• Storage:
• 2× M.2 slots (PCIe 4.0 x4, one with SATA support)
• 4× SATA 6Gb/s ports
• Networking:
• Wi‑Fi 6E (802.11ax)
• Bluetooth 5.3
• 2.5G LAN

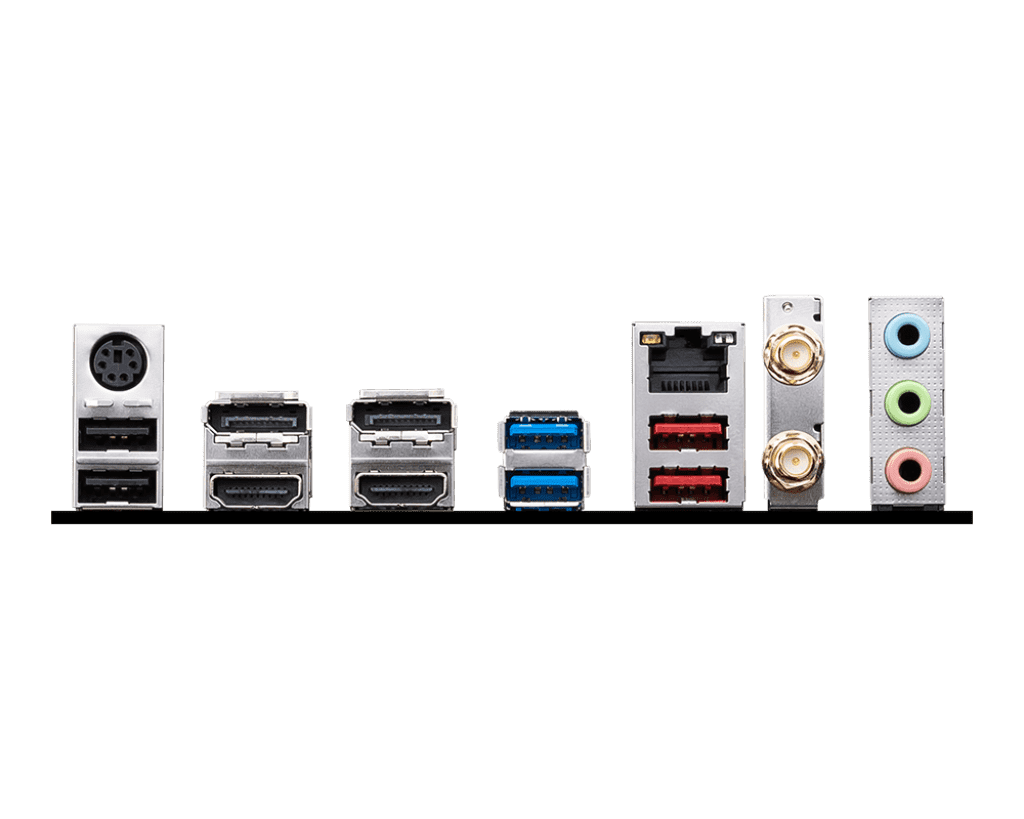

• USB & I/O:
• USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
• Multiple rear and internal headers (varies by region)
• Audio:
• Audio Boost HD Audio 8‑channel (Realtek‑based)
• Thermal & Build Features:
• Premium thermal solution with extended heatsinks
• 12+1 Duet Rail Power System with Core Boost and Memory Boost
• High‑quality PCB with 2oz thickened copper
