GIGABYTE B450M DS3H V2 AMD B450 Micro‑ATX motherboard board
GIGABYTE B450M DS3H V2 AMD B450 Micro‑ATX Motherboard – Reliable Budget AM4 Board - Image 2
GIGABYTE B450M DS3H V2 AMD B450 Micro‑ATX Motherboard – Reliable Budget AM4 Board - Image 3
GIGABYTE B450M DS3H V2 AMD B450 Micro‑ATX motherboard board

GIGABYTE B450M DS3H V2 AMD B450 Micro‑ATX Motherboard – Reliable Budget AM4 Board

  • Type: Micro‑ATX Motherboard
  • Key Spec 1: AMD B450 Chipset – AM4 Socket (Ryzen support)
  • Key Spec 2: Supports AMD Ryzen™ 1000 / 2000 / 3000 / 4000 / 5000 Series CPUs
  • Key Spec 3: DDR4 Dual‑Channel Memory, up to 128 GB
  • Compatibility / Feature: PCIe 3.0 x16, M.2 NVMe & SATA support

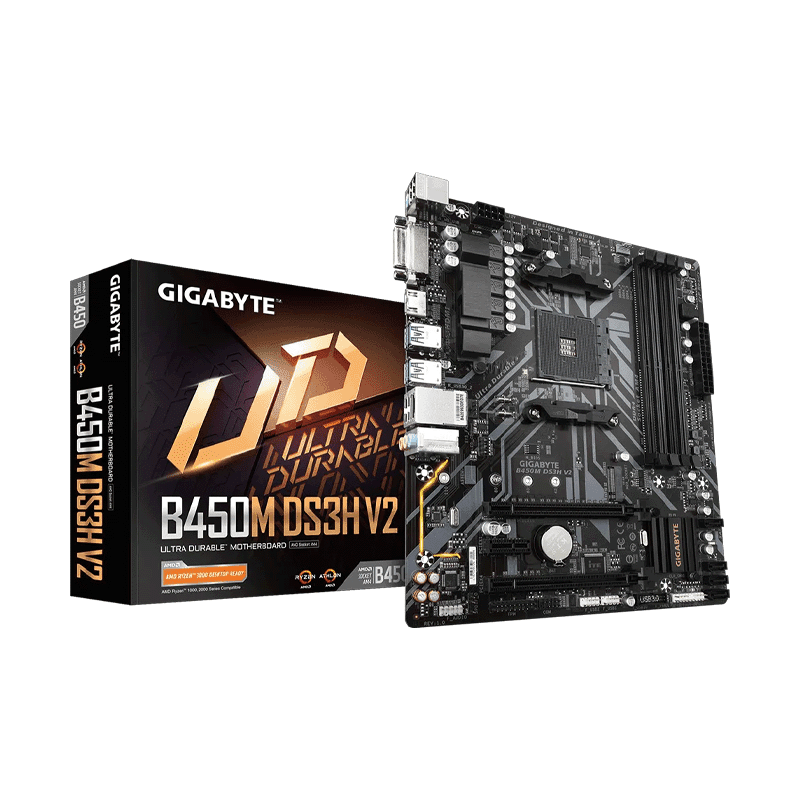

  • Packaging: Micro‑ATX motherboard box with accessories
  • Warranty: 1 Year Warranty
    Official Manufacturer Page:

    GIGABYTE B450M DS3H V2 motherboard

₨24,000.00

The GIGABYTE B450M DS3H V2 motherboard offers a strong balance of performance, connectivity, and reliability for budget‑focused AMD AM4 builds. Built around the AMD B450 chipset, this Micro‑ATX board supports a wide range of AMD Ryzen™ processors, including Ryzen™ 5000 series with a BIOS update, delivering solid performance for everyday computing, gaming, and productivity tasks.

Broad Processor Support and Memory Performance

With support for AMD Ryzen™ 1000, 2000, 3000, 4000, and 5000 series processors, the B450M DS3H V2 gives you flexibility when upgrading or building your PC. The board features four DDR4 DIMM slots with support for up to 128 GB of memory in dual‑channel mode, which helps keep multitasking and memory‑intensive applications responsive.

Essential Connectivity and Expandability

The GIGABYTE B450M DS3H V2 includes a PCIe 3.0 x16 slot for modern graphics cards and an ultra‑fast M.2 slot supporting NVMe SSDs for improved storage responsiveness. Realtek Gigabit LAN provides stable network connectivity, and multiple USB and display outputs enhance everyday usability.

This board’s durable design and essential feature set make it ideal for budget gaming builds, home offices, and general‑purpose PC systems.

  • SPECIFICATIONS
    General
  • Chipset: AMD B450
  • CPU Support: AMD Ryzen™ 5000 / 4000 / 3000 / 2000 / 1000 Series Processors (AM4)
  • Socket: AM4
  • Form Factor: Micro‑ATX (244 × 215 mm)
  • Memory
  • Memory Type: DDR4
  • DIMM Slots: 4
  • Maximum Memory: 128 GB
  • Supported Speeds: DDR4‑2133 / 2400 / 2667 / 2933 / 3200 / 3466 / 3600 (OC)
  • Dual‑Channel Architecture
  • Expansion & Storage
  • PCIe 3.0 x16 Slot (x16 mode)
  • PCIe 2.0 x16 Slot (x4 mode)
  • PCIe 2.0 x1 Slot
  • M.2 Slot: PCIe Gen3 x4 / SATA
  • SATA III Ports: 4 × 6 Gb/s
  • RAID Support (SATA): RAID 0, 1, 10
  • Networking
  • LAN: Realtek® Gigabit Ethernet

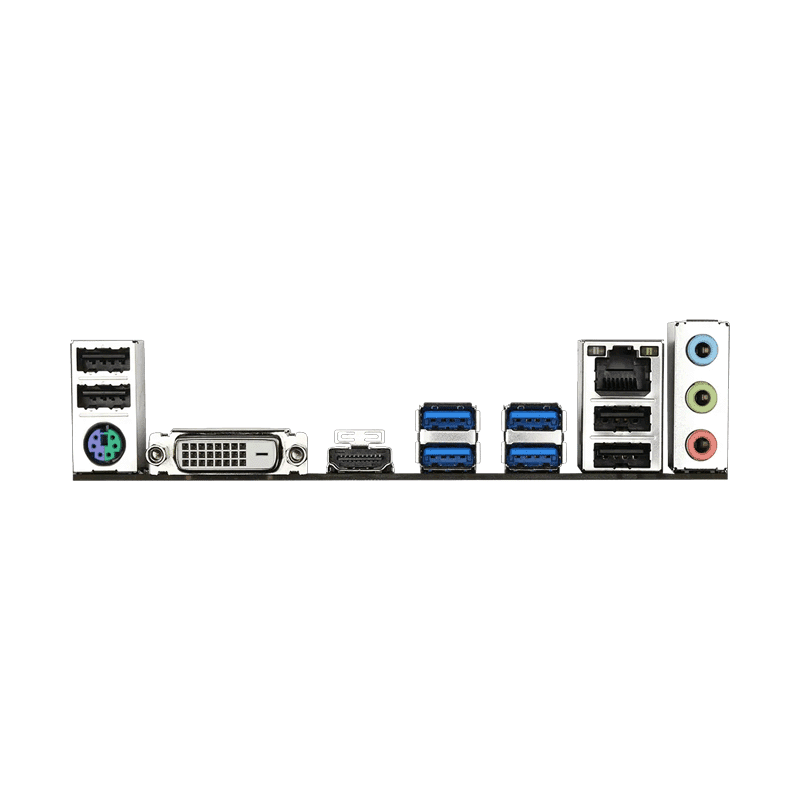

  • Rear I/O
  • HDMI™ 2.0 (up to 4K @ 60 Hz)
  • DVI‑D Port (up to 1920×1200 @ 60 Hz)
  • USB 3.0 / 3.1 Gen1 Ports
  • USB 2.0 Ports
  • PS/2 Combo Port
  • Audio Jacks (Realtek ALC887 7.1‑Channel)
SKU: GIG‑B450M‑DS3H‑V2 Category: Brand:
