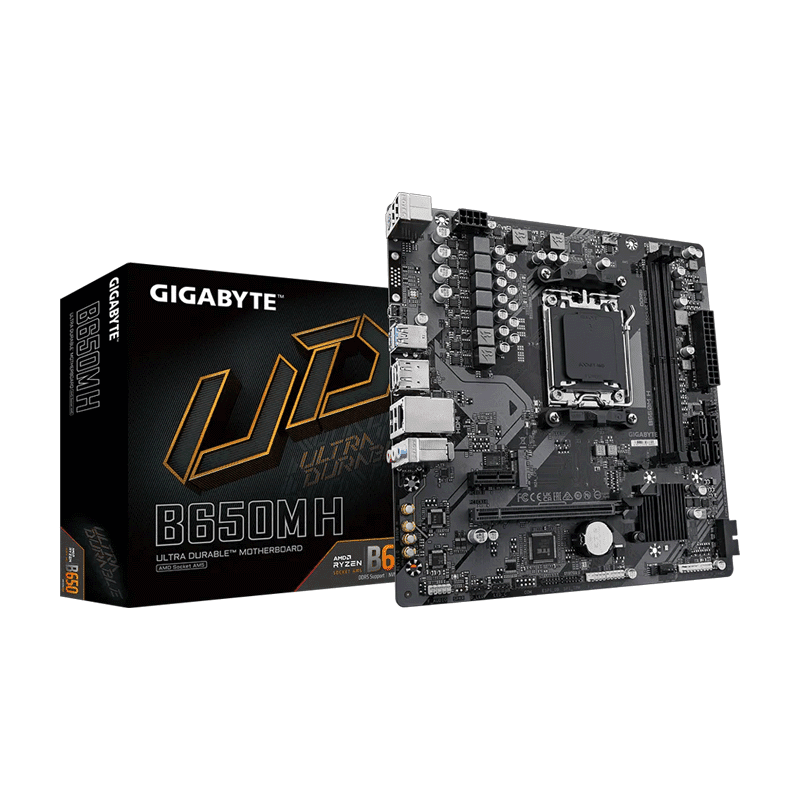

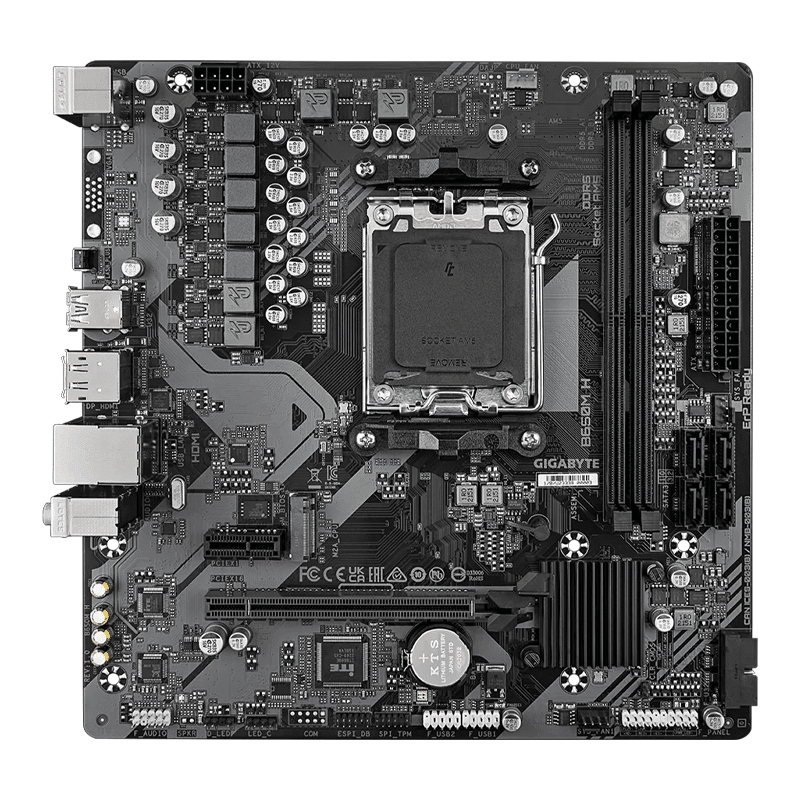

B650M H DDR5 Motherboard – Gigabyte AM5 Micro‑ATX Board

The B650M H DDR5 motherboard delivers solid performance and reliable connectivity for budget‑conscious gamers and builders. Moreover, this Gigabyte B650M H board supports AMD Ryzen™ 7000, 8000, and 9000 Series processors on the AM5 socket, which provides a strong foundation for daily computing, gaming, and content creation. Therefore, users benefit from a responsive system that handles modern tasks with ease.

Efficient DDR5 Memory and Balanced Power Delivery

First, the B650M H DDR5 motherboard supports dual‑channel DDR5 memory with speeds up to 7200 MT/s when overclocked and using AMD EXPO™ or Intel XMP profiles. In addition, its 5+2+2 phase digital VRM solution improves stability under load for smoother multitasking and gaming performance. As a result, memory‑intensive applications and background tasks stay responsive.

Storage and Graphics Expansion

In addition, this AM5 DDR5 board offers a PCIe 4.0 x16 slot for graphics card support and a PCIe 4.0 x4 M.2 slot for high‑speed SSD storage. Likewise, the presence of four SATA 6 Gb/s ports enables additional hard drive and SSD configurations. Therefore, users enjoy quick system boots and reduced load times.

Connectivity and I/O Options

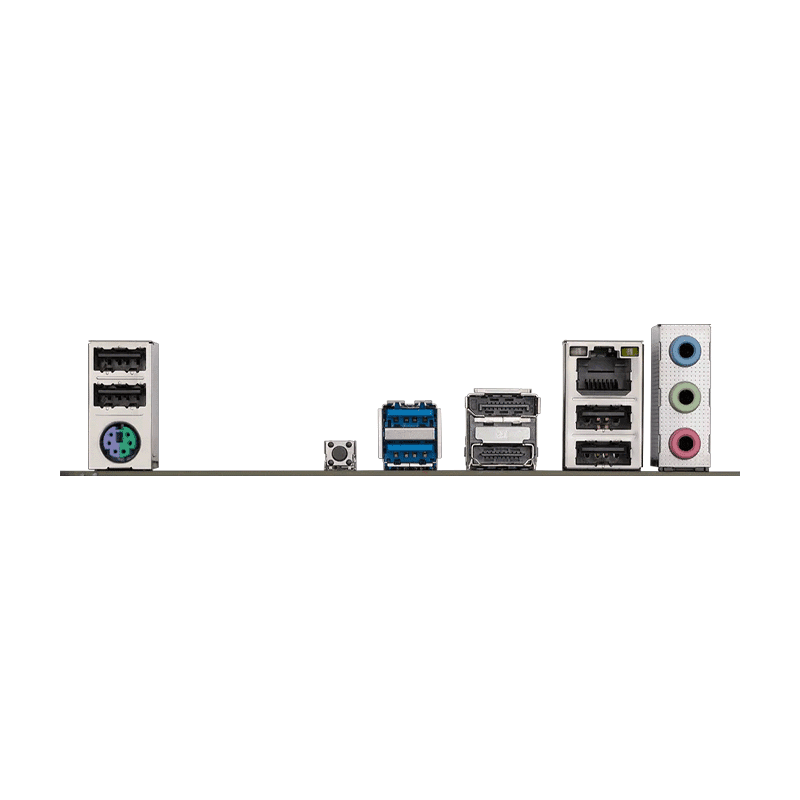

Furthermore, the Gigabyte B650M H DDR5 motherboard integrates Realtek Gigabit LAN for reliable wired networking and provides DisplayPort 1.4 and HDMI 2.1 outputs for high‑resolution displays with compatible processors. Meanwhile, multiple USB 3.2 Gen1 and USB 2.0 ports support a range of peripherals. Consequently, this board covers both gaming and productivity needs.

Build‑Ready Features

Finally, the B650M H includes Smart Fan 6 for advanced thermal control and Q‑Flash Plus for BIOS updates without installing the CPU. Therefore, both beginners and experienced builders find this board easy to set up and maintain.

• SPECIFICATIONS
  Manufacturer: Gigabyte
  Model: B650M H DDR5
  Form Factor: Micro‑ATX (23.0 × 22.5 cm)
  CPU Socket: AMD AM5
  Supported CPUs: AMD Ryzen™ 7000 / 8000 / 9000 Series
  Chipset: AMD B650
  Memory: 2 × DDR5 DIMM slots, Dual Channel, up to 128 GB, up to 7200 MT/s (OC)
  Memory Features: AMD EXPO™ & Intel XMP support
  Expansion Slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
  Storage: 1 × M.2 PCIe 4.0 x4 slot, 4 × SATA 6 Gb/s
  Networking: Realtek Gigabit LAN
  Audio: Realtek High Definition Audio (7.1‑channel)
  Display Outputs: 1 × HDMI 2.1, 1 × DisplayPort 1.4
  USB Ports: USB 3.2 Gen1 & USB 2.0 (rear/internal)
  Cooling: Smart Fan 6 with hybrid fan headers
  BIOS: UEFI with Q‑Flash Plus support
  Special Features: EZ‑Latch PCIe design
