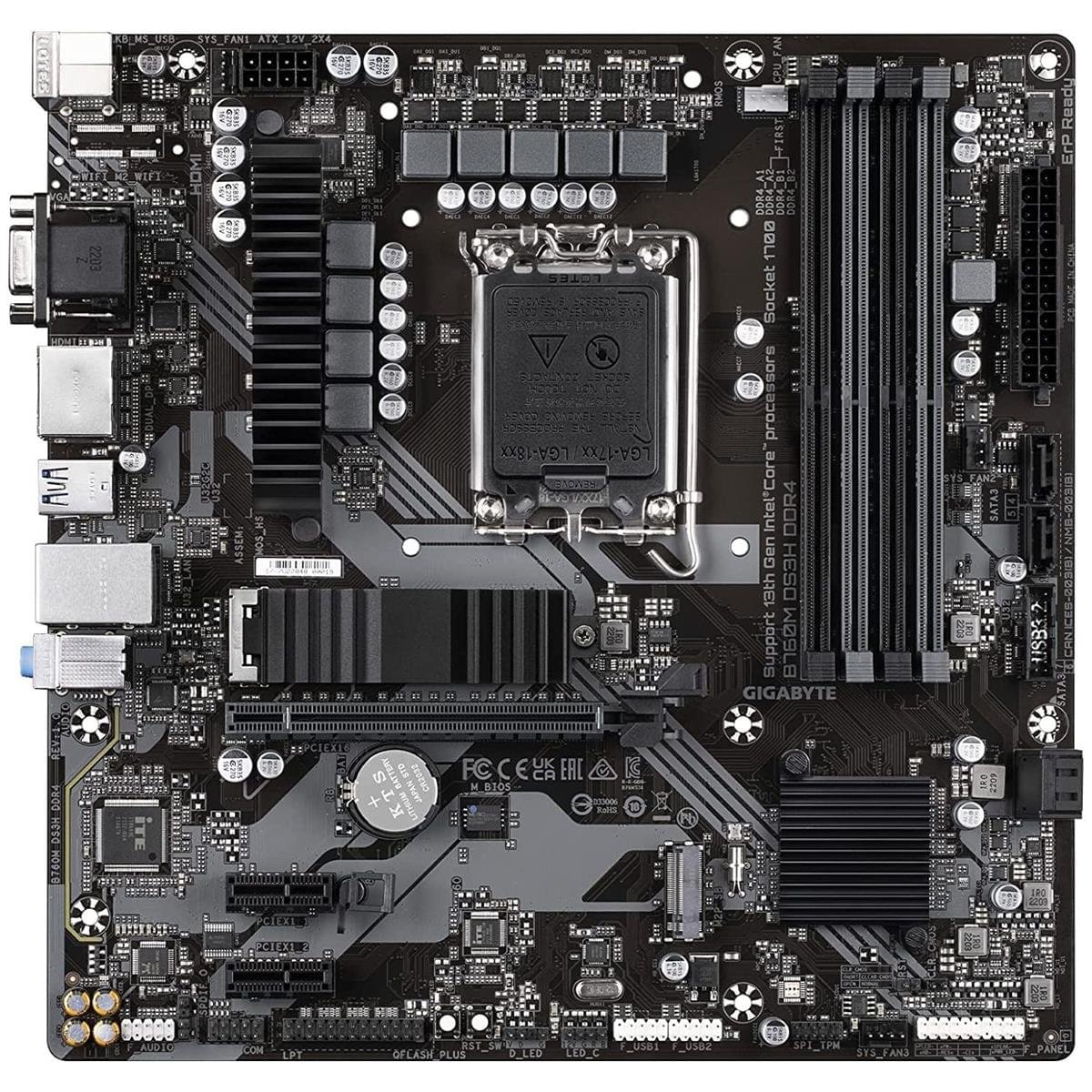

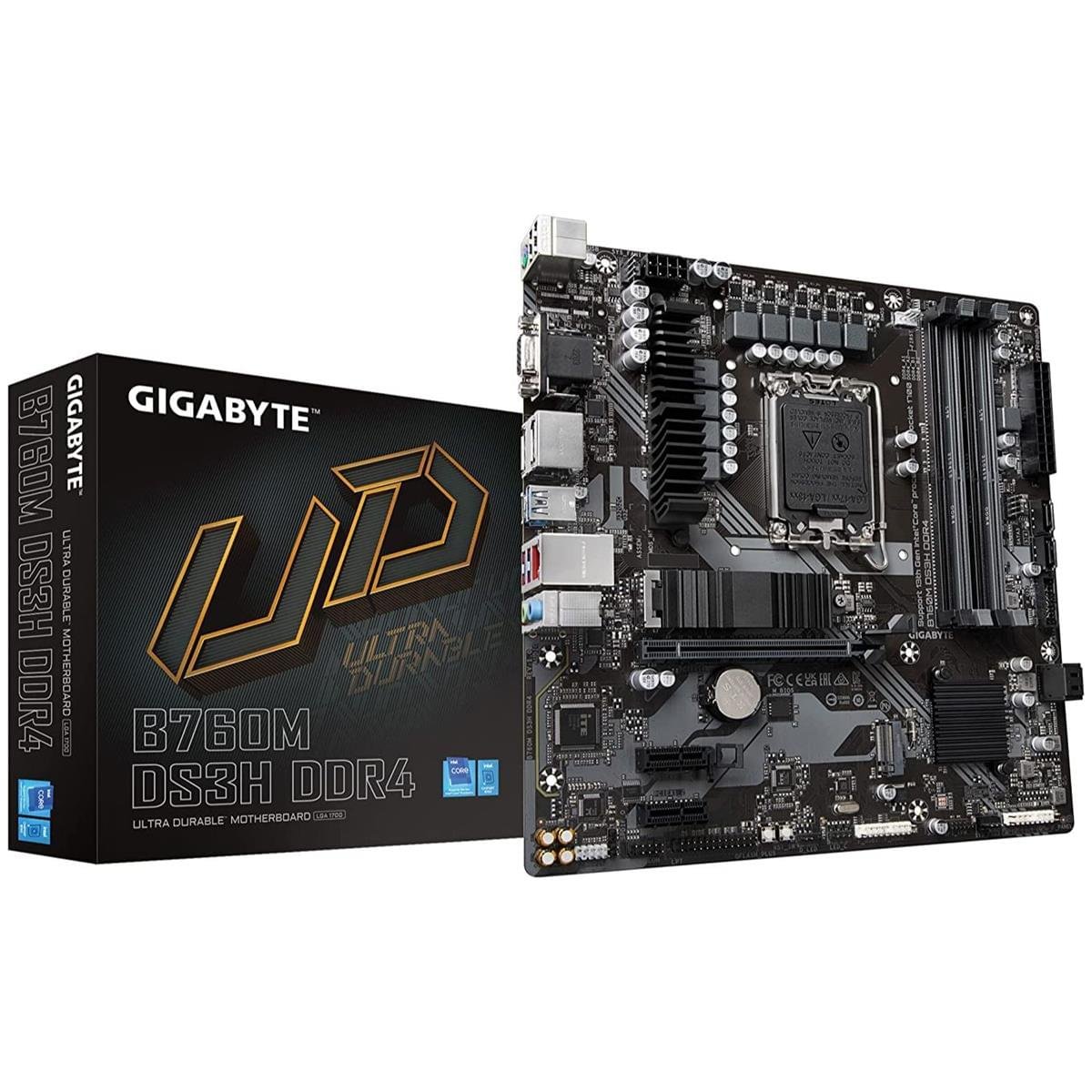

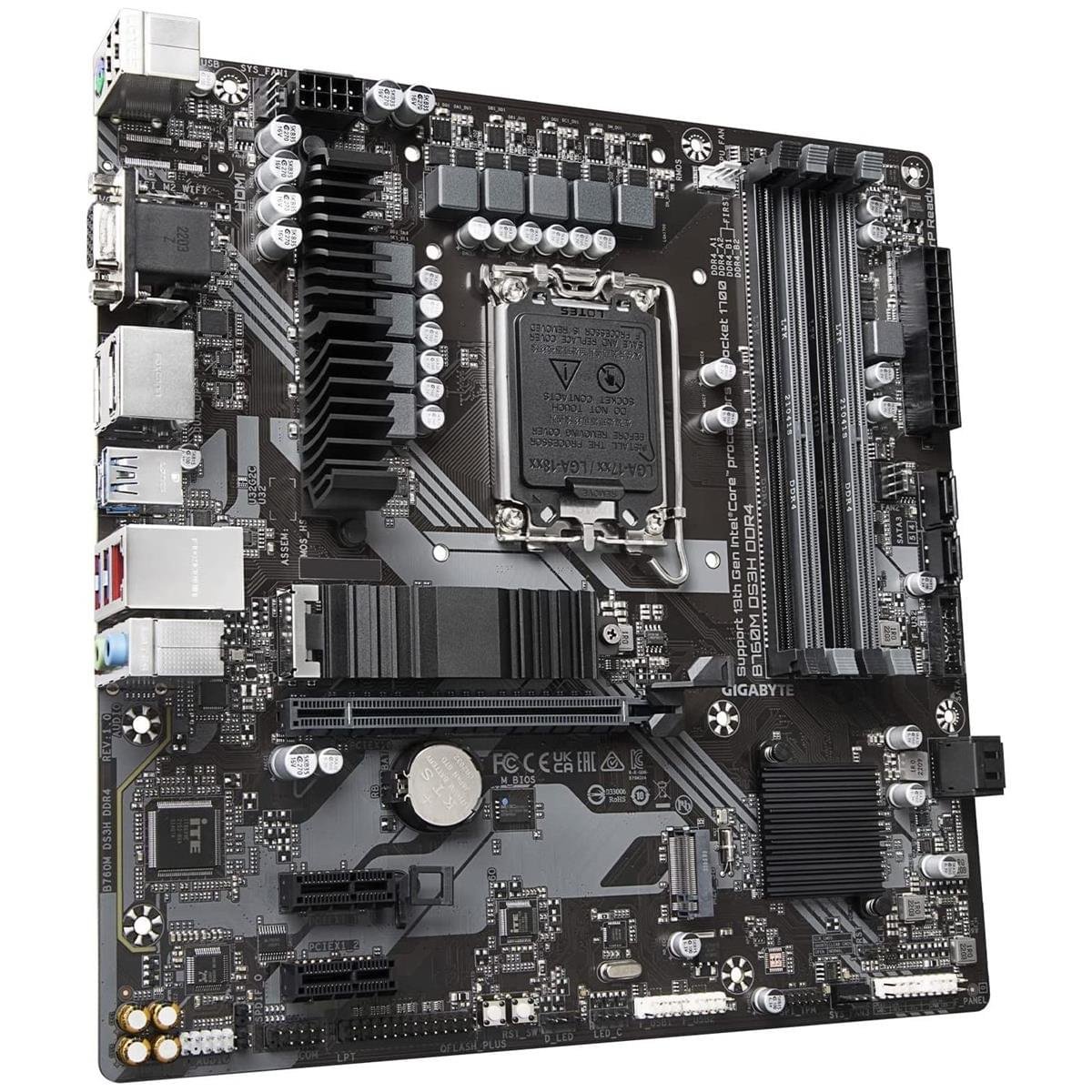

B760M DS3H DDR4 Motherboard – Gigabyte Intel LGA1700 Board

The B760M DS3H DDR4 motherboard delivers reliable performance and modern connectivity for Intel LGA1700 desktop builds. It supports Intel® 12th, 13th, and 14th Gen Core™, Pentium® Gold, and Celeron® processors. Therefore, it is well‑suited for mainstream gaming, productivity, and everyday computing systems.

High‑Speed DDR4 Memory Support

This Gigabyte B760M DS3H DDR4 board has four DDR4 DIMM slots with dual‑channel architecture and support for high memory speeds up to 5333 MT/s when overclocked. Moreover, XMP profiles allow easy memory tuning for improved responsiveness in multitasking and gaming.

Expansion and Storage Options

Furthermore, the motherboard includes a PCIe 4.0 x16 slot for modern graphics cards and two additional PCIe 3.0 x1 slots for expansion cards. It also has two PCIe 4.0 x4 M.2 connectors and four SATA 6 Gb/s ports for fast SSD and HDD storage. As a result, system boot times and data transfers are significantly faster.

Connectivity and Multimedia

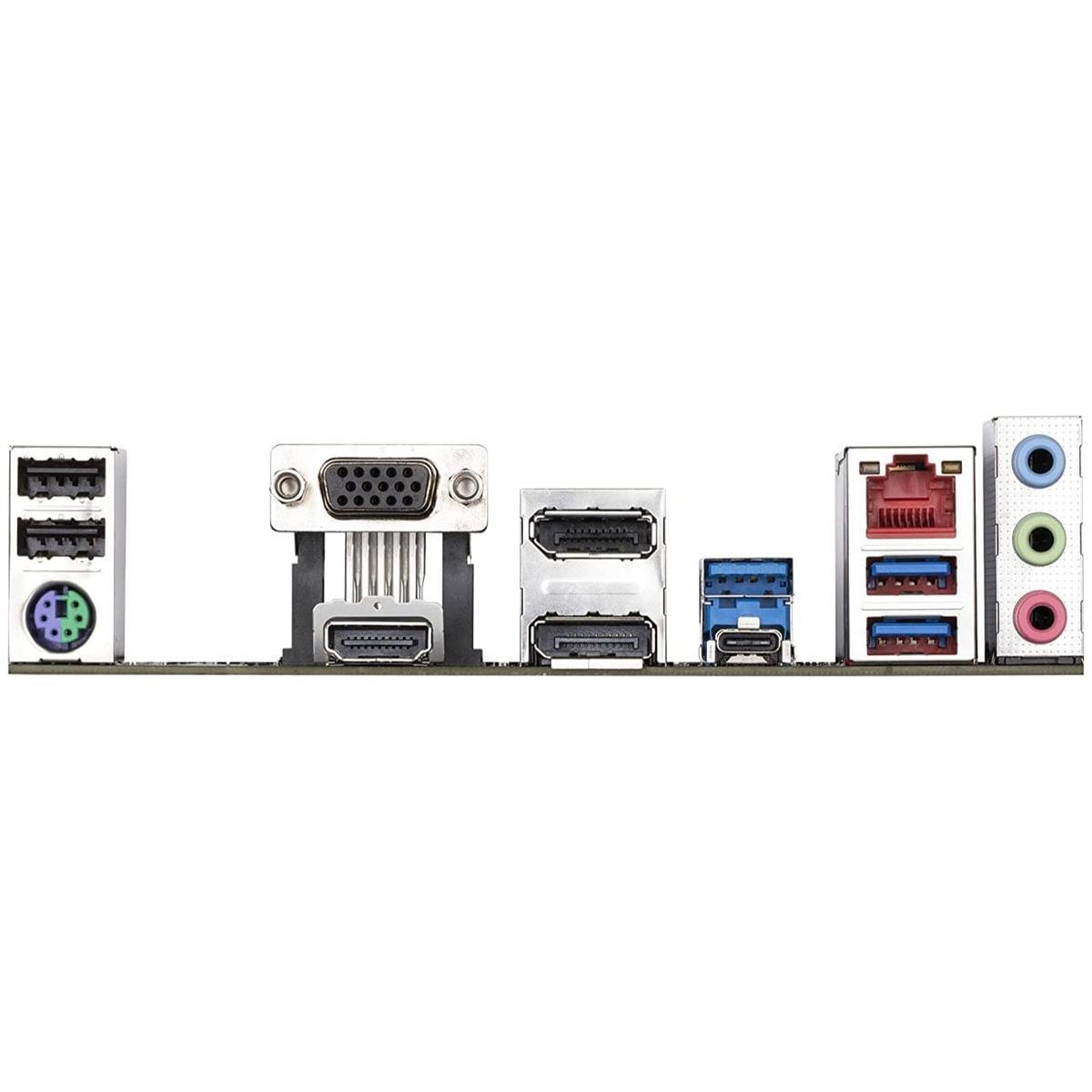

The B760M DS3H DDR4 motherboard integrates Realtek 2.5GbE LAN for fast wired networking and multiple display outputs — HDMI 2.0, D‑Sub, and DisplayPort 1.2 — when paired with a compatible Intel CPU. Likewise, multiple USB 3.2 Gen1 and USB 2.0 ports offer flexible connectivity for peripherals and external drives.

Smart Features for Builders

Gigabyte includes features such as Smart Fan 6 with hybrid fan headers, Q‑Flash Plus for BIOS updates without a CPU installed, and EZ‑Latch for easier PCIe installation. Therefore, this board is suitable for both first‑time builders and experienced PC builders.

• SPECIFICATIONS
  Manufacturer: Gigabyte
  Model: B760M DS3H DDR4 (Rev. 1.0)
  Form Factor: microATX (24.4 × 24.4 cm)
  CPU Socket: Intel LGA1700; supports 12th, 13th, and 14th Gen Intel Core™, Pentium® Gold, and Celeron® CPUs
  Chipset: Intel B760 Express Chipset
  Memory: 4 × DDR4 DIMM, Dual‑Channel; up to 128 GB; DDR4 up to 5333 MT/s (OC)
  Memory Features: XMP support
  Expansion Slots: 1 × PCIe 4.0 x16; 2 × PCIe 3.0 x1
  Storage: 2 × M.2 PCIe 4.0 x4; 4 × SATA 6 Gb/s
  Networking: Realtek 2.5GbE LAN
  Audio: Realtek High Definition Audio Codec, 2/4/5.1/7.1 channel support
  Display Outputs: HDMI 2.0, D‑Sub, DisplayPort 1.2
  USB Ports: USB 3.2 Gen1, USB Type‑C, USB 2.0/1.1
  BIOS: AMI UEFI BIOS, Q‑Flash Plus
  Cooling: Smart Fan 6 with hybrid fan headers
  Features: EZ‑Latch PCIe quick release, Ultra Durable components
