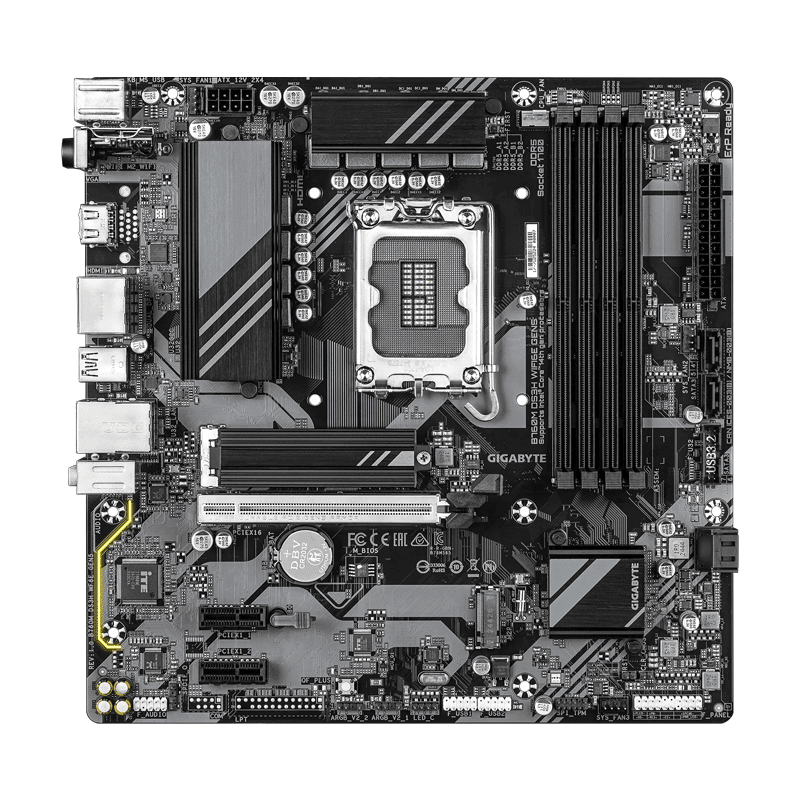

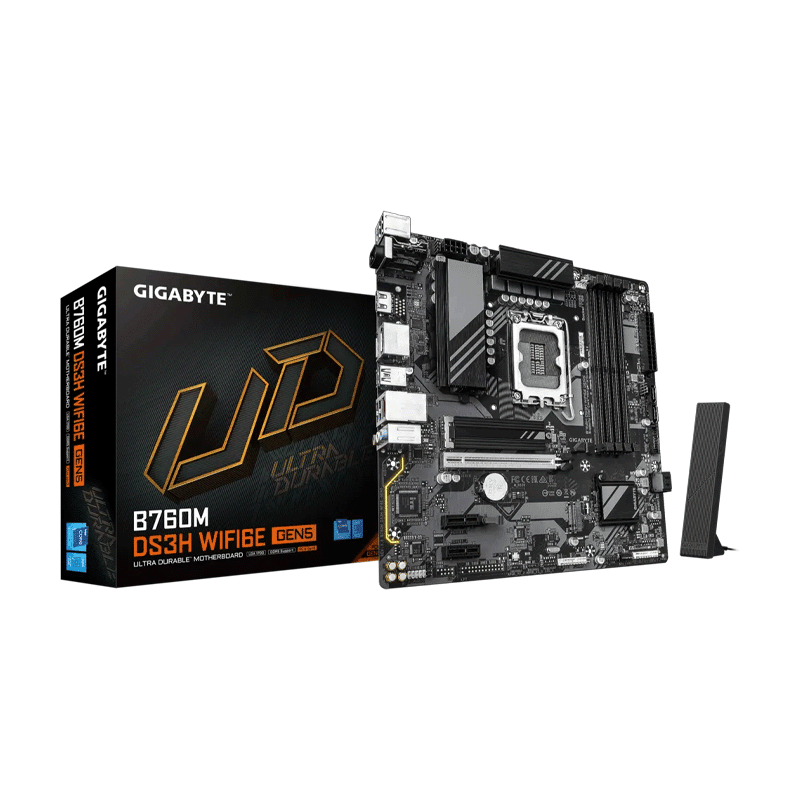

B760M DS3H WiFi6E Gen5 Motherboard – Gigabyte Intel DDR5 Board

The B760M DS3H WiFi6E motherboard brings modern performance and connectivity to Intel LGA1700 systems. It supports Intel® 12th, 13th, and 14th Gen processors, which makes it suitable for gaming, productivity, and everyday computing. Therefore, this Gigabyte board is an excellent choice for mainstream users seeking balanced performance.

High‑Speed DDR5 Memory and Expansion

This motherboard supports four DDR5 DIMM slots with dual‑channel architecture and memory speeds up to 7600 MT/s (OC). It also features a PCIe 5.0 x16 slot for the latest graphics cards. In addition, two PCIe 4.0 M.2 slots enable ultra‑fast storage performance. Consequently, system responsiveness and load times improve for both gaming and applications.

Networking and Display Features

The B760M DS3H WiFi6E motherboard integrates Wi‑Fi 6E (802.11ax) and Bluetooth 5.3 for high‑speed wireless connectivity. Realtek 2.5 GbE LAN offers reliable wired networking when needed. Meanwhile, HDMI 2.1 and DisplayPort 1.2 outputs support high‑resolution displays when paired with a compatible CPU.

Stable Power and Cooling

Gigabyte equips this board with a 6+2+1 phase hybrid VRM design and M.2 Thermal Guard for better heat management under load. Furthermore, Smart Fan 6 helps maintain optimal system temperatures quietly.

• SPECIFICATIONS
  Manufacturer: Gigabyte
  Model: B760M DS3H WiFi6E Gen5
  Form Factor: micro‑ATX
  CPU Socket: Intel LGA1700
  Supported CPUs: Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron®
  Chipset: Intel® B760 Express Chipset
  Memory: 4 × DDR5 DIMM, Dual‑Channel, up to 256 GB; up to 7600 MT/s (OC)
  Expansion Slots: 1 × PCIe 5.0 x16, PCIe 3.0 x1 slots
  Storage: 2 × M.2 PCIe 4.0 x4, 4 × SATA 6 Gb/s
  Networking: Wi‑Fi 6E (802.11ax), Bluetooth 5.3, Realtek 2.5GbE LAN
  Audio: Realtek HD Audio, 7.1‑channel

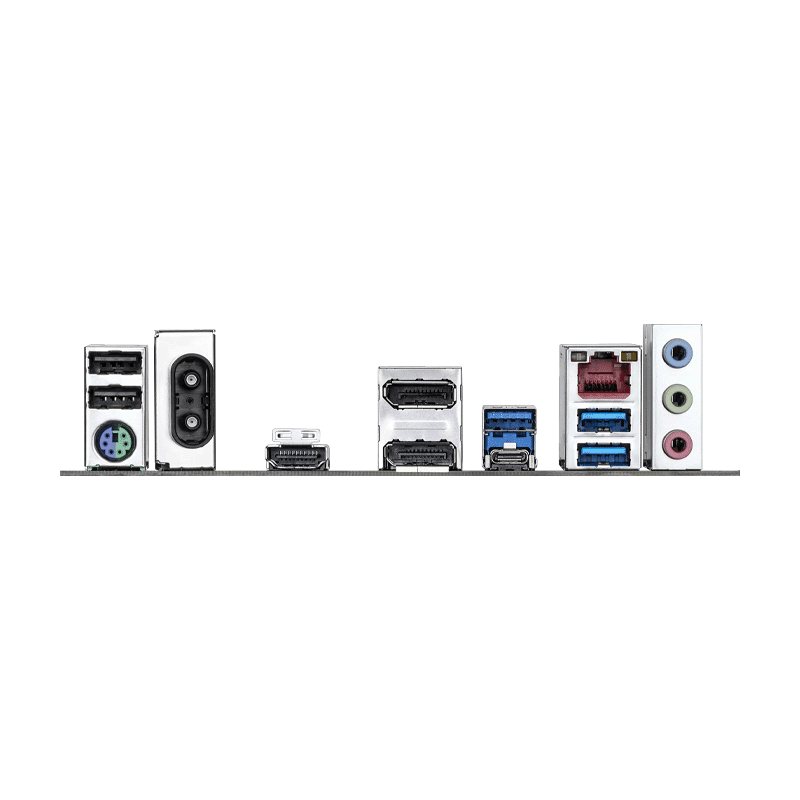

  Display Outputs: 1 × HDMI 2.1, 2 × DisplayPort 1.2
  USB Ports: USB 3.2 Gen2 Type‑C, USB 3.2 Gen1, USB 2.0
  Cooling: VRM Thermal Armor Advanced, M.2 Thermal Guard
  BIOS: UEFI with Q‑Flash Plus
  Features: Smart Fan 6, PCIe EZ‑Latch, WIFI EZ‑Plug
