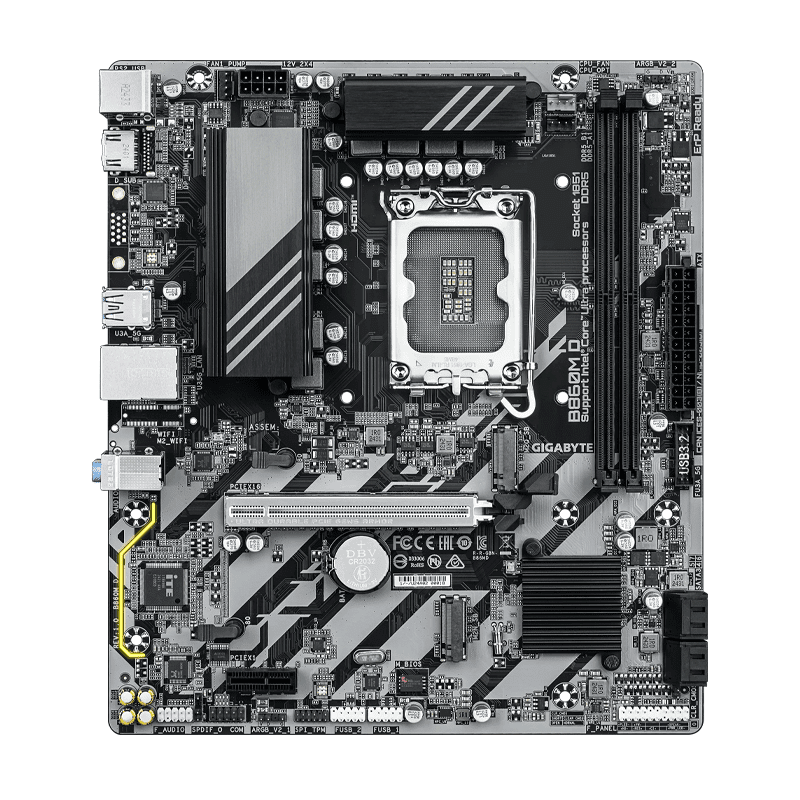

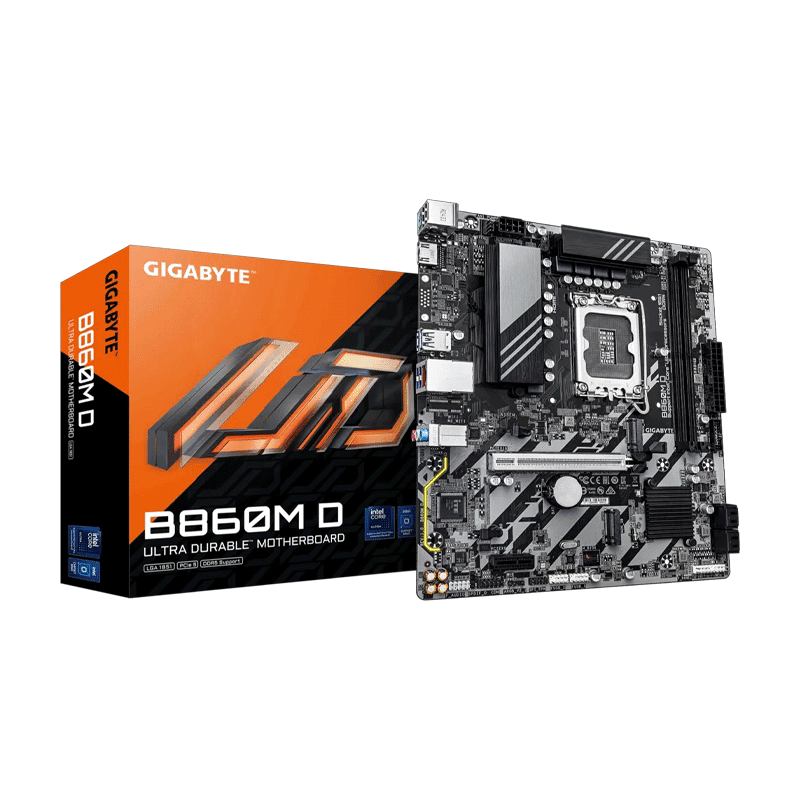

Gigabyte B860M D Micro-ATX Motherboard – LGA1851 DDR5 PCIe 5.0

Gigabyte B860M D Motherboard – Powerful Foundation for Modern PCs

The Gigabyte B860M D Motherboard is a high-performance Micro-ATX board tailored for gaming, productivity, and content creation. Built around the Intel® B860 Express Chipset and supporting the Intel LGA1851 socket for Intel® Core™ Ultra processors, this board provides a balanced mix of power and efficiency for next-gen builds.

Fast DDR5 Memory and Intelligent Expansion

This motherboard supports DDR5 memory up to 128 GB through two DIMM slots with XMP memory profile support, enabling quick data access and smooth multitasking. The PCIe 5.0 x16 slot offers future-ready bandwidth for the latest graphics cards or ultra-fast storage solutions.

Storage and Connectivity Features

For storage, the Gigabyte B860M D includes two M.2 PCIe 4.0 slots and four SATA 6 Gb/s ports, delivering high-speed NVMe SSD placement and legacy drive support. The board also integrates Realtek 2.5GbE LAN for quick wired networking and robust connectivity for streaming and online gaming.

Onboard Graphics and Audio Support

With compatible Intel CPUs that include integrated graphics, the board offers HDMI output capable of 4K resolution at 60 Hz. A built-in Realtek high-definition audio codec delivers immersive 7.1-channel sound, making it suitable for both multimedia and gaming setups.

Compact Form Factor for Flexibility

The Micro-ATX form factor makes the Gigabyte B860M D ideal for compact and mid-range PC builds, fitting easily into smaller cases while maintaining versatile expansion options.

Reliable Performance and BIOS Features

Gigabyte’s UEFI BIOS offers intuitive system tuning and stability controls. Features like Q-Flash and smart fan controls simplify performance tweaks and thermal management so you can optimize your system confidently.

SPECIFICATIONS

• Brand: Gigabyte
  Model: B860M D Motherboard
• General:
• Form Factor: Micro-ATX (24.4 × 21.5 cm)
• CPU Socket: Intel LGA1851, supports Intel® Core™ Ultra processors (refer to Gigabyte CPU support list)
• Chipset: Intel® B860 Express Chipset
• Memory:
• Slots: 2x DDR5 DIMM sockets
• Max Capacity: Up to 128 GB
• Memory Types: DDR5 up to 8800(O.C) / 5600 MT/s (varies by CPU)
• Dual-Channel: Supported
• XMP: Supported
• Graphics:
• Integrated Graphics: Via supported Intel CPU
• Video Output: 1x HDMI (up to 4096×2160@60 Hz, HDMI 2.1)
