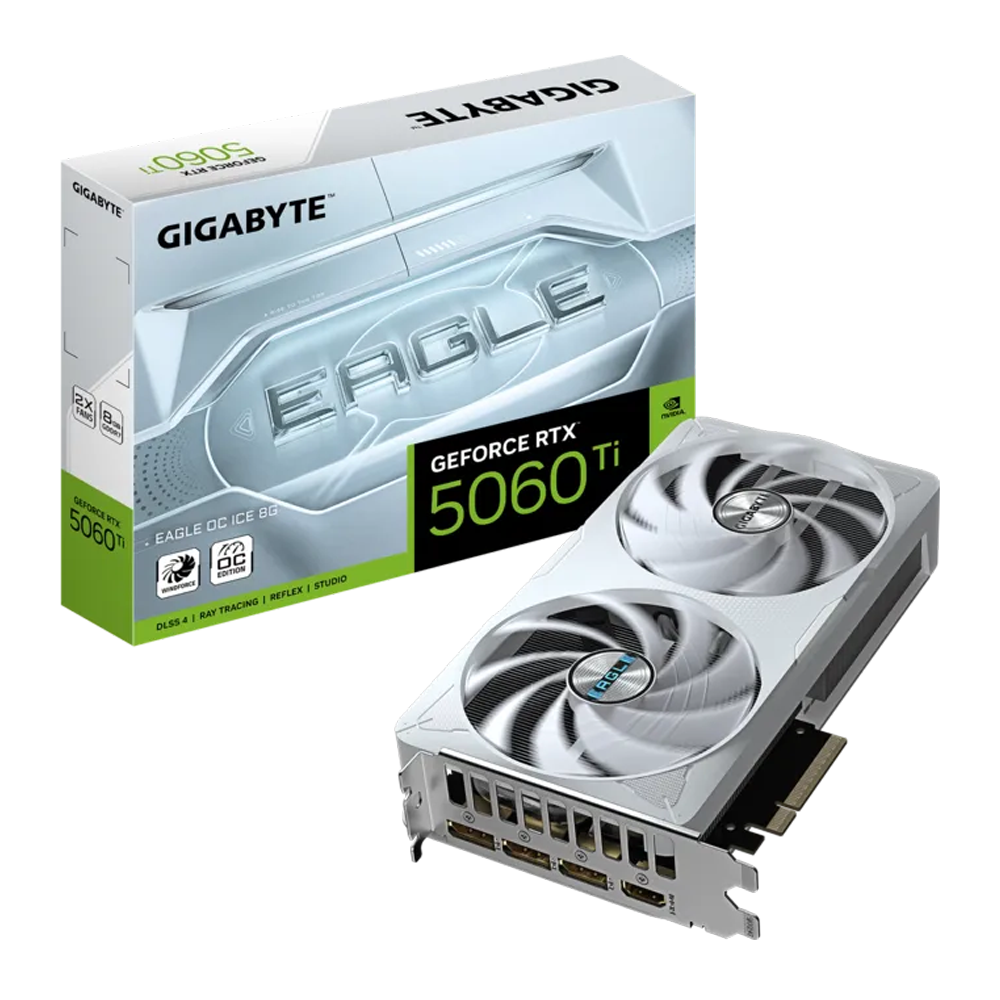

GeForce RTX™ 5060 Ti EAGLE OC ICE 8G Graphics Card

The GIGABYTE GeForce RTX 5060 Ti EAGLE OC ICE 8G is a graphics card based on NVIDIA’s GeForce RTX 5060 Ti GPU and Blackwell architecture. It combines 8GB of GDDR7 memory with a 128-bit memory interface and a factory-boosted core clock of 2617MHz, compared with the 2572MHz reference clock. The card uses PCI Express 5.0 and supports a maximum digital resolution of 7680 × 4320.

The card is designed for gaming and creative workloads and supports NVIDIA technologies including DLSS 4, fifth-generation Tensor Cores, fourth-generation Ray Tracing Cores, NVIDIA Reflex 2, NVIDIA Studio and the ninth-generation NVIDIA Encoder. These technologies provide hardware and software features for AI-enhanced rendering, ray tracing, latency reduction, content creation and video encoding.

Cooling is handled by GIGABYTE’s WINDFORCE system, incorporating Hawk fans with alternate spinning, 3D Active Fan technology, composite copper heat pipes, a copper plate, server-grade thermal conductive gel and an extended heatsink design. The 3D Active Fan system allows the fans to stop under low-load or low-power conditions.

Display connectivity consists of three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to four displays. The card measures 215 × 122 × 40mm and uses one 8-pin power connector. GIGABYTE specifies a 650W recommended power supply.
