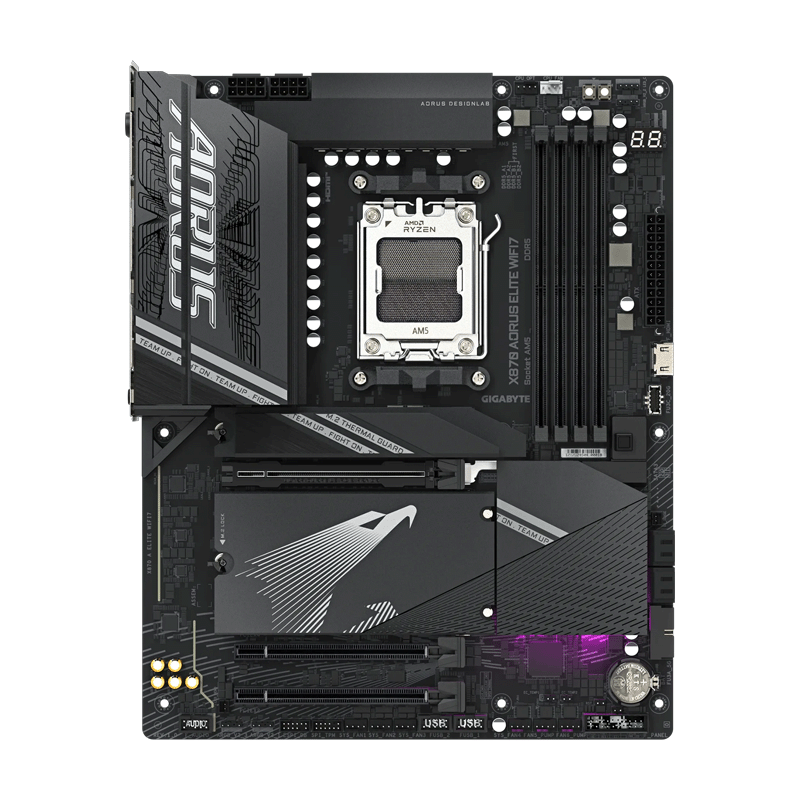

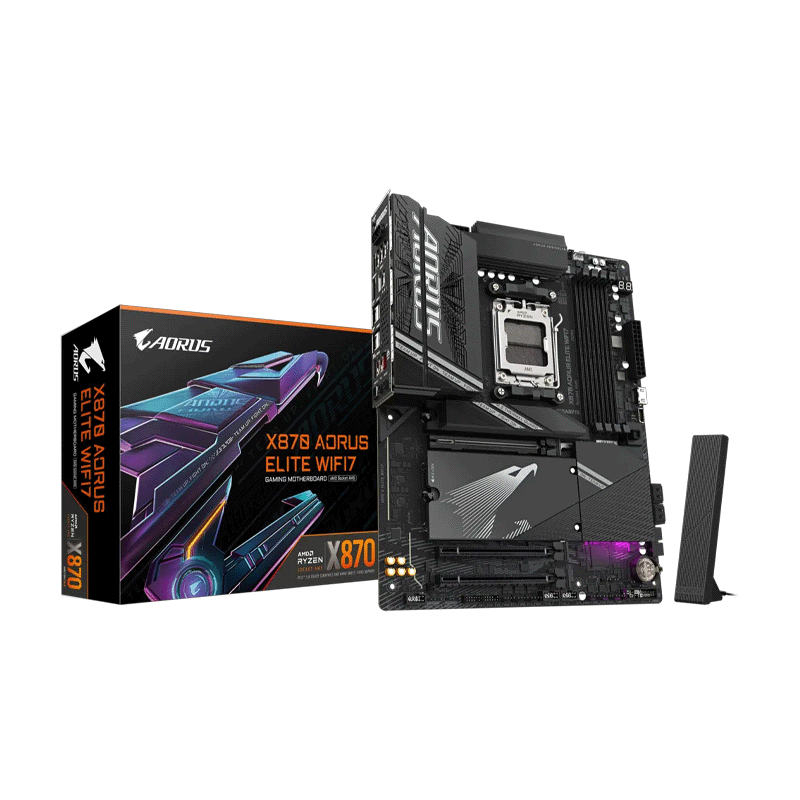

Gigabyte X870 AORUS Elite WiFi7 DDR5 Motherboard – AM5 Gaming & Performance

Gigabyte X870 AORUS Elite WiFi7 delivers unparalleled performance and connectivity for high-end gaming and productivity. This Gigabyte X870 AORUS Elite WiFi7 motherboard supports the latest AMD Ryzen™ 7000, 8000, and 9000 Series processors on the AM5 socket and unlocks advanced performance from DDR5 memory. Its optimized power design and PCIe 5.0 support ensure faster data transfer and peak system responsiveness for gaming, content creation, and multitasking.

Advanced DDR5 Memory & Power Design

The focus keyphrase, Gigabyte X870 AORUS Elite WiFi7, comes alive with its high-speed DDR5 support. With four DIMM slots and memory overclocking up to 8200 MHz (OC), this board maximizes bandwidth for demanding applications and games. AMD EXPO™ and XMP profile support makes tuning memory simple and efficient, improving performance and stability. Dual 8-pin EPS plus a robust 16+2+2 phase VRM supply consistent power during heavy loads.

Next-Gen Connectivity for Competitive Gaming

This motherboard includes Wi-Fi 7 and Bluetooth 5.4 for lightning-fast wireless networking, alongside 2.5GbE LAN for stable wired connections. Dual USB4® Type-C ports with DP-Alt support high-resolution displays and ultra-fast data transfers, ideal for creators and professionals. M.2 slots with PCIe 5.0 support future-ready SSDs that accelerate game loads and workflows.

Build & BIOS Features for Every User

The board features EZ-Latch Plus and EZ-Latch Click tool-free designs for quick installation of M.2 and PCIe devices. Q-Flash Plus enables BIOS updates without a CPU installed, making first-time builds easier. Internal thermal solutions and extended heatsinks help maintain optimal temperatures under load.

• SPECIFICATIONS
  Motherboard Type: ATX (305 x 244 mm)
  CPU Socket: AMD AM5, supports Ryzen™ 7000 / 8000 / 9000 Series
  Chipset: AMD X870
  Memory: 4 x DDR5 DIMM Slots, up to 256GB, 4400–8200 MHz (OC)
  Storage: 4 x M.2 Slots (3x PCIe 5.0, 1x PCIe 4.0), 4 x SATA III
  Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
  Networking: Wi-Fi 7 (MediaTek), Bluetooth 5.4, Realtek 2.5GbE LAN
  Audio: Realtek ALC1220, 7.1-Channel HD Audio

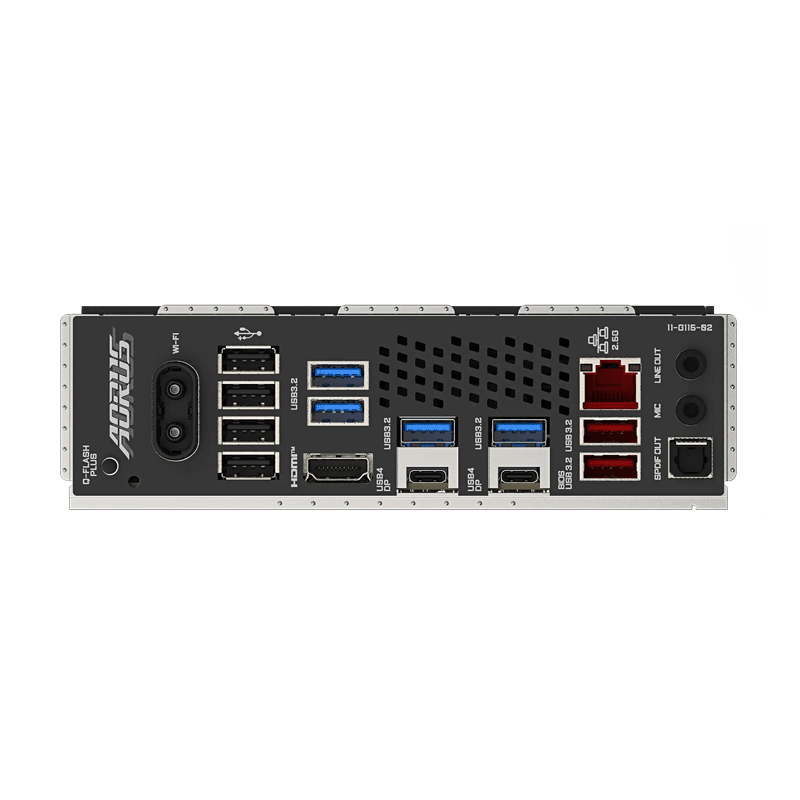

  Rear I/O: Dual USB4® Type-C (40 Gbps), USB 3.2 Gen2, Gen1, USB 2.0, HDMI 2.1
  Internal I/O: Fan headers, pump headers, RGB headers
  BIOS Features: Q-Flash Plus, EZ Debug Zone
