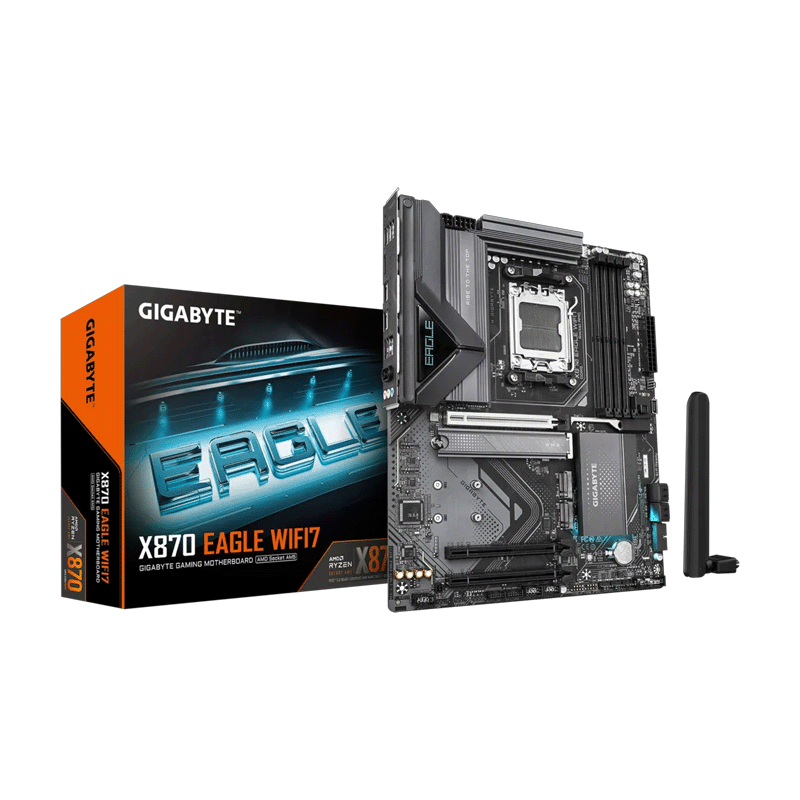

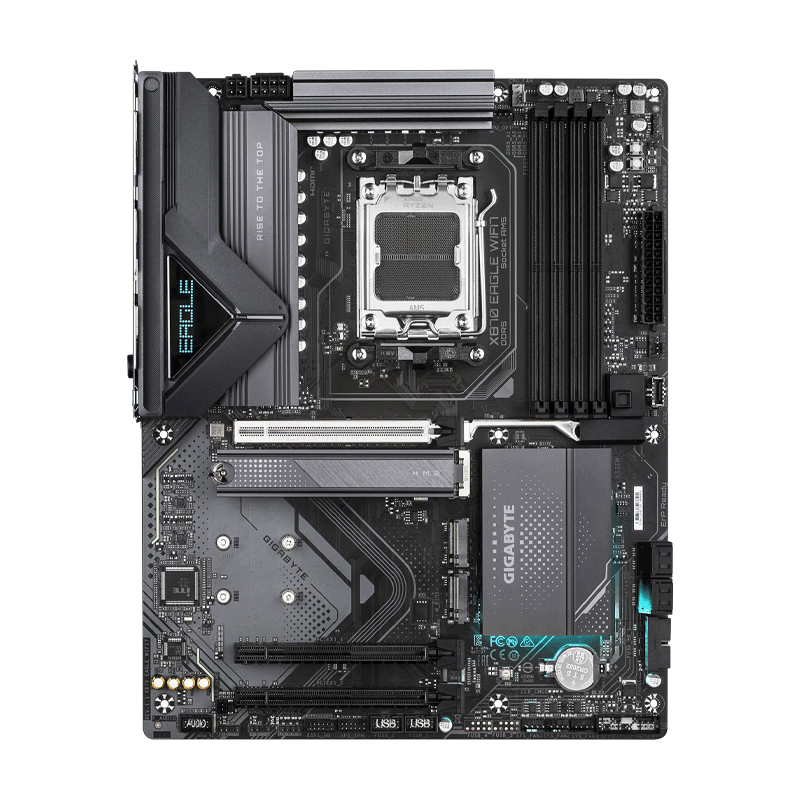

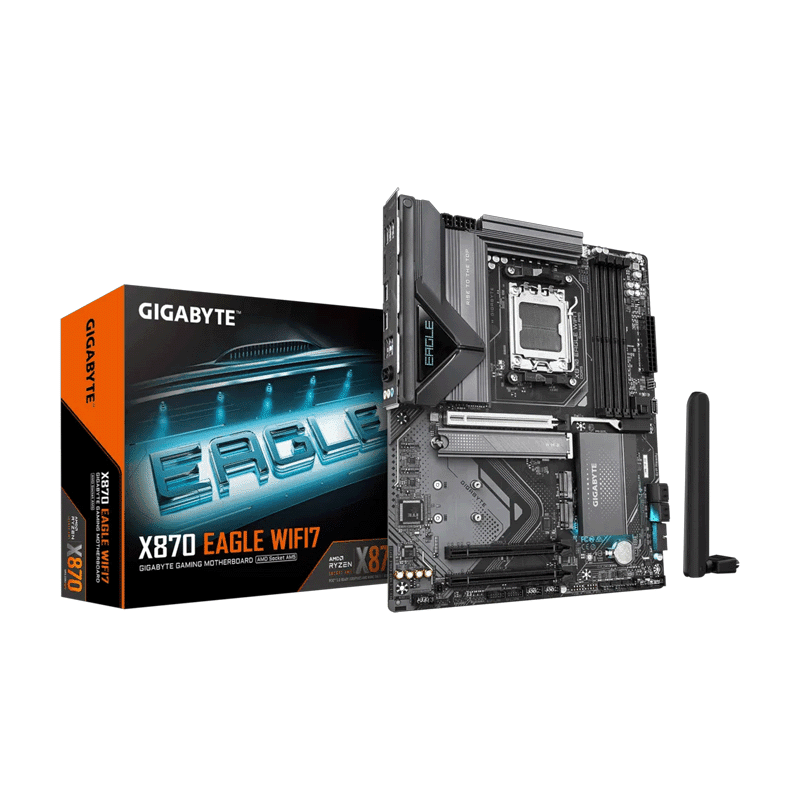

Gigabyte X870 Eagle WiFi7 DDR5 Motherboard

The Gigabyte X870 Eagle WiFi7 motherboard delivers advanced performance and connectivity for gaming, creative work, and productivity systems. Built on the AMD X870 chipset, this AM5 board supports AMD Ryzen™ 9000, 8000, and 7000 Series processors to provide responsive performance in demanding tasks and multitasking environments.

High‑Speed Memory and Expansion

This motherboard supports DDR5 memory up to 8200 MHz (OC) with four DIMM slots and a maximum capacity of 256 GB, allowing you to configure high‑bandwidth systems for gaming, long‑form content creation, and professional workflows.

Next‑Generation Storage and Networking

Equipped with multiple M.2 slots, including one with PCIe 5.0 x4, the X870 Eagle WiFi7 delivers ultra‑fast storage options for NVMe SSDs, while Wi‑Fi 7 and 2.5GbE LAN provide low‑latency, high‑throughput connectivity for online gaming and large file transfers. The board also features USB4 and modern display connectivity for versatile peripheral support.

Whether you are building a cutting‑edge gaming rig or a productivity‑focused workstation, this motherboard combines robust expansion, modern features, and reliable performance.

• SPECIFICATIONS
  General
• Chipset: AMD X870
• CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series (AM5)
• Form Factor: ATX
• Memory
• Memory Type: DDR5 UDIMM
• DIMM Slots: 4
• Maximum Memory: 256 GB
• Supported Speeds: DDR5 up to 8200 MHz (OC); standard DDR5 speeds from 4400 MHz up
• Dual‑Channel Architecture, AMD EXPO™ & XMP support
• Expansion & Storage
• PCIe 5.0 x16 Slot (Primary)
• Additional Slots: 2 × PCIe 3.0 x1
• M.2 Slots: 1 × PCIe 5.0 x4, 2 × PCIe 4.0 (various sizes)
• SATA III Ports: 4 × 6 Gb/s (typical)
• RAID Support: RAID 0, 1, 10 (SATA)
• Networking
• LAN: Realtek® 2.5GbE
• Wireless: Wi‑Fi 7 (802.11be) with Bluetooth 5.4

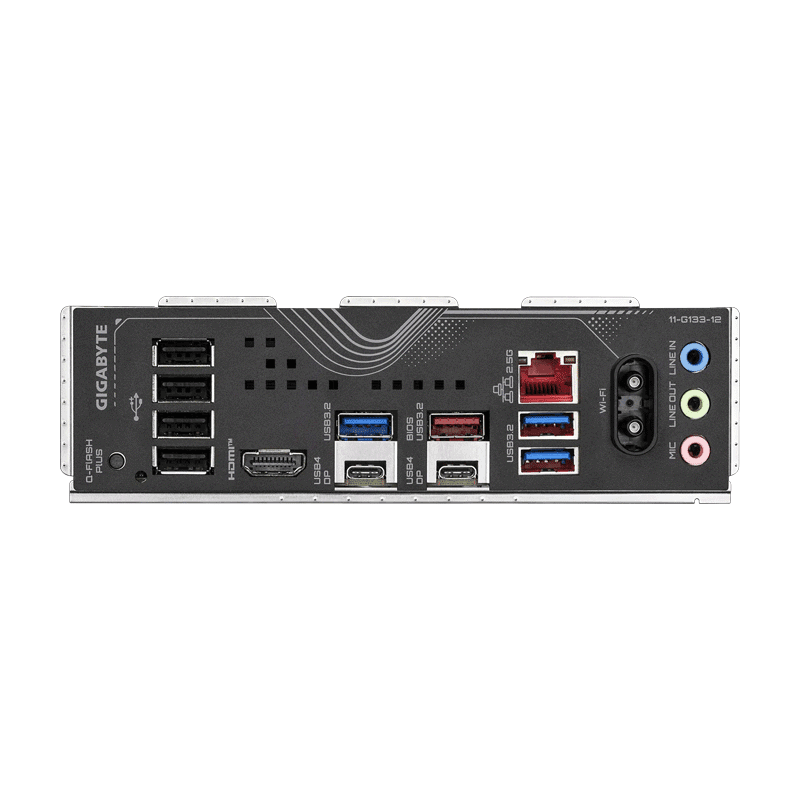

• Rear I/O
• USB4 Type‑C Ports (2 rear)
• USB 3.2 Gen2 Type‑A & USB 3.2 Gen1 Ports
• USB 2.0 Ports
• HDMI (single, up to 4K 60 Hz when supported by CPU iGPU)
• Audio Jacks: Realtek® High Definition audio
