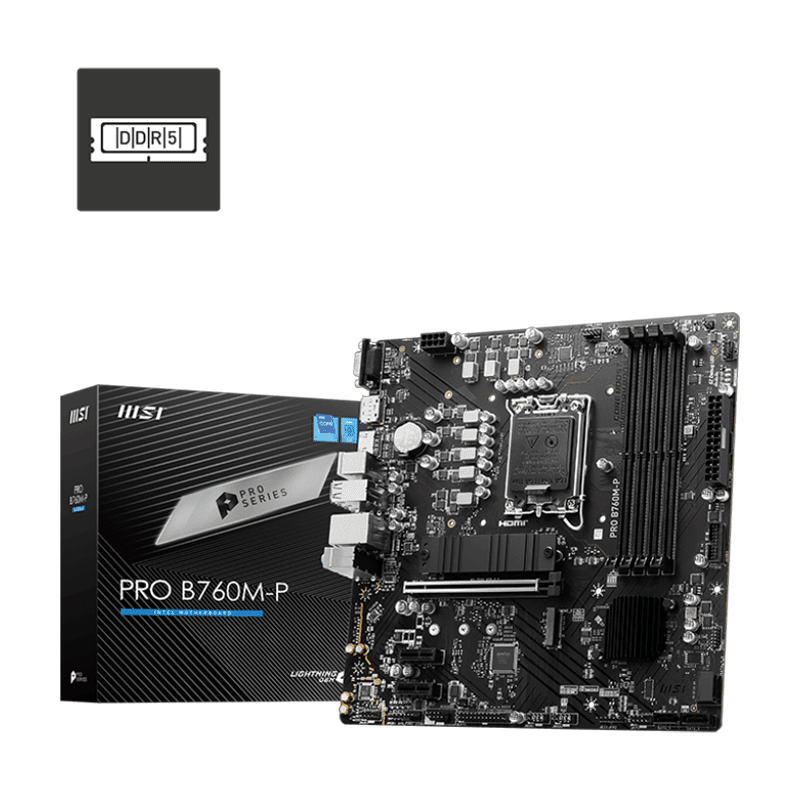

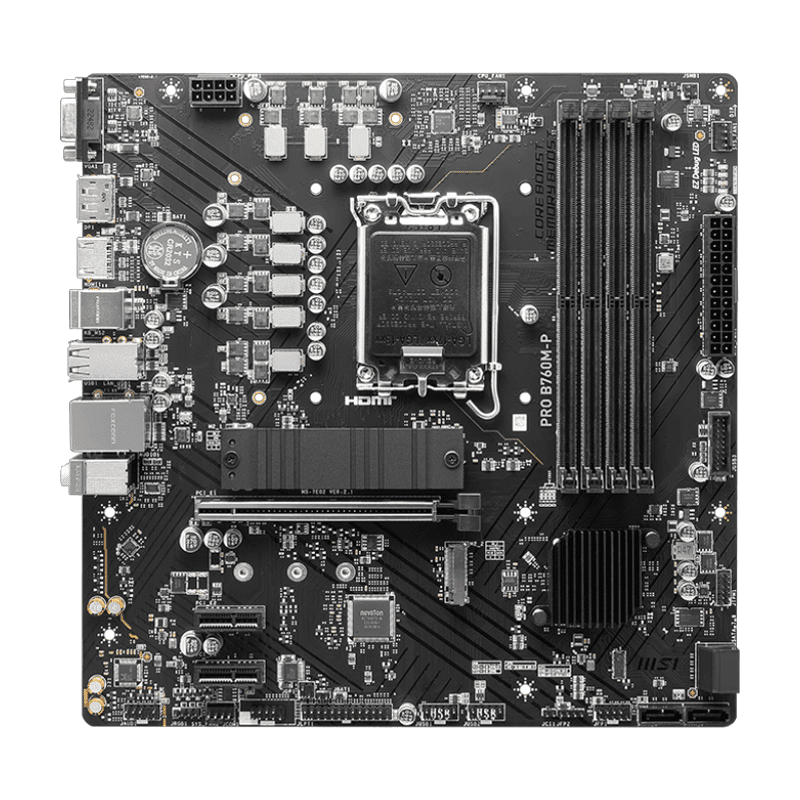

PRO B760M‑P DDR5 Motherboard – MSI Intel LGA1700 Board

The PRO B760M‑P DDR5 motherboard offers reliable performance and essential connectivity for Intel LGA1700 systems. It supports 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. Therefore, it is suitable for productivity, office builds, and everyday computing.

Efficient DDR5 Memory and Basic Boost

This MSI B760M‑P board supports up to four DDR5 DIMM slots with speeds up to 6800+ MHz (OC). It also supports Intel® XMP 3.0 for easy memory tuning. Moreover, dual‑channel architecture improves multitasking performance, making the board responsive in many workloads.

Connectivity and Expansion Options

The PRO B760M‑P DDR5 motherboard includes a PCIe 4.0 x16 slot for graphics cards and two PCIe 4.0 x1 slots for add‑in cards. Additionally, two M.2 slots support PCIe 4.0 SSDs for fast storage performance. As a result, the system boots quickly and handles heavier workloads more smoothly.

Display and Networking Features

For displays, it offers HDMI™ and DisplayPort outputs that support up to 4K resolution. Meanwhile, integrated Realtek Gigabit LAN delivers stable wired networking. Furthermore, onboard Realtek ALC897 audio provides immersive 7.1‑channel sound for media and basic gaming.

Essential MSI Board Enhancements

Moreover, MSI includes features such as Audio Boost for enhanced sound clarity and M.2 Shield Frozr for sustained SSD performance. EZ Debug LEDs help identify boot issues easily.

•  SPECIFICATIONS
  Manufacturer: MSI
  Model: PRO B760M‑P DDR5
  Form Factor: micro‑ATX
  CPU Socket: LGA1700
  Supported CPUs: Intel® Core™ 12th / 13th / 14th Gen, Pentium® Gold, Celeron®
  Chipset: Intel® B760
  Memory: 4 × DDR5 DIMM, Dual‑Channel, up to 256 GB; up to 6800+ MHz (OC)
  Memory Features: Intel® XMP 3.0 support
  Expansion Slots: 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1
  Storage: 2 × M.2 slots (PCIe 4.0 x4 & PCIe 4.0 x4 / SATA mode), 4 × SATA 6 Gb/s

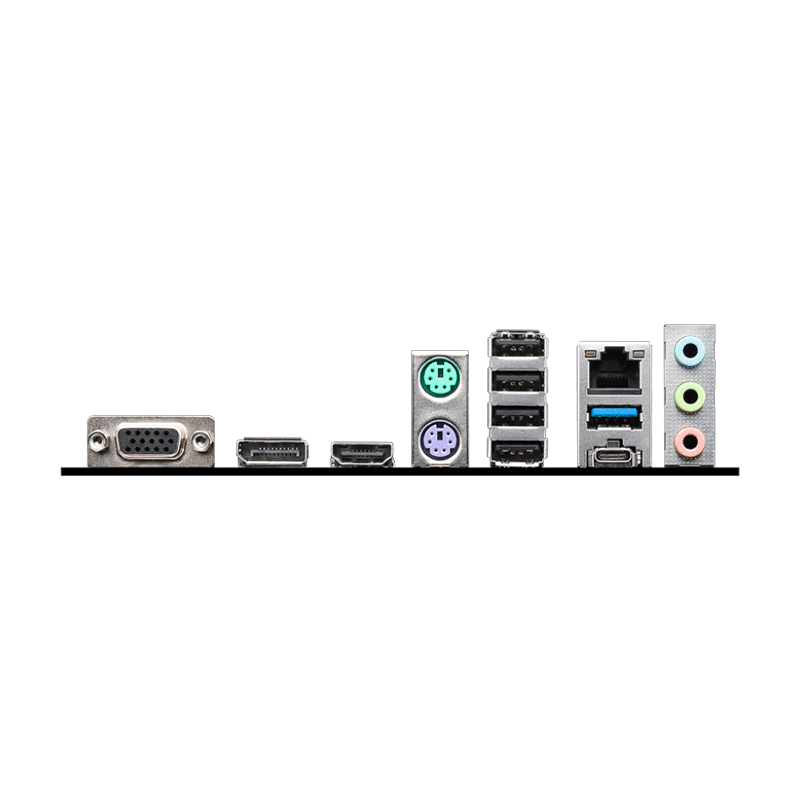

  Rear I/O: 1 × USB‑C 10 Gbps, 1 × USB‑A 5 Gbps, 4 × USB‑A 2.0
  Display Outputs: HDMI™ 1.4 (4K @ 30 Hz), DisplayPort 1.4 (4K @ 60 Hz), VGA
  Networking: Realtek® RTL8111H Gigabit LAN
  Audio: Realtek® ALC897 Codec, 7.1‑Channel HD Audio
  Internal I/O: CPU fan, system fan headers, front panel USB headers
  BIOS: UEFI with EZ Debug LED
  Features: M.2 Shield Frozr, Audio Boost, Core Boost
