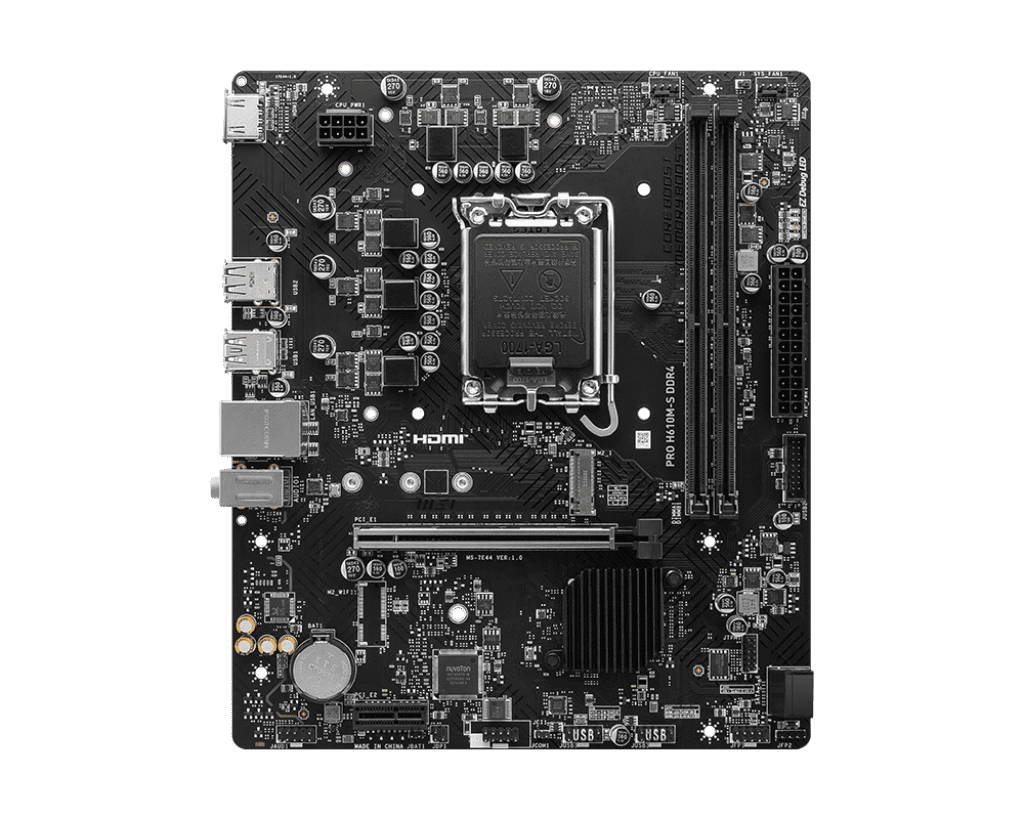

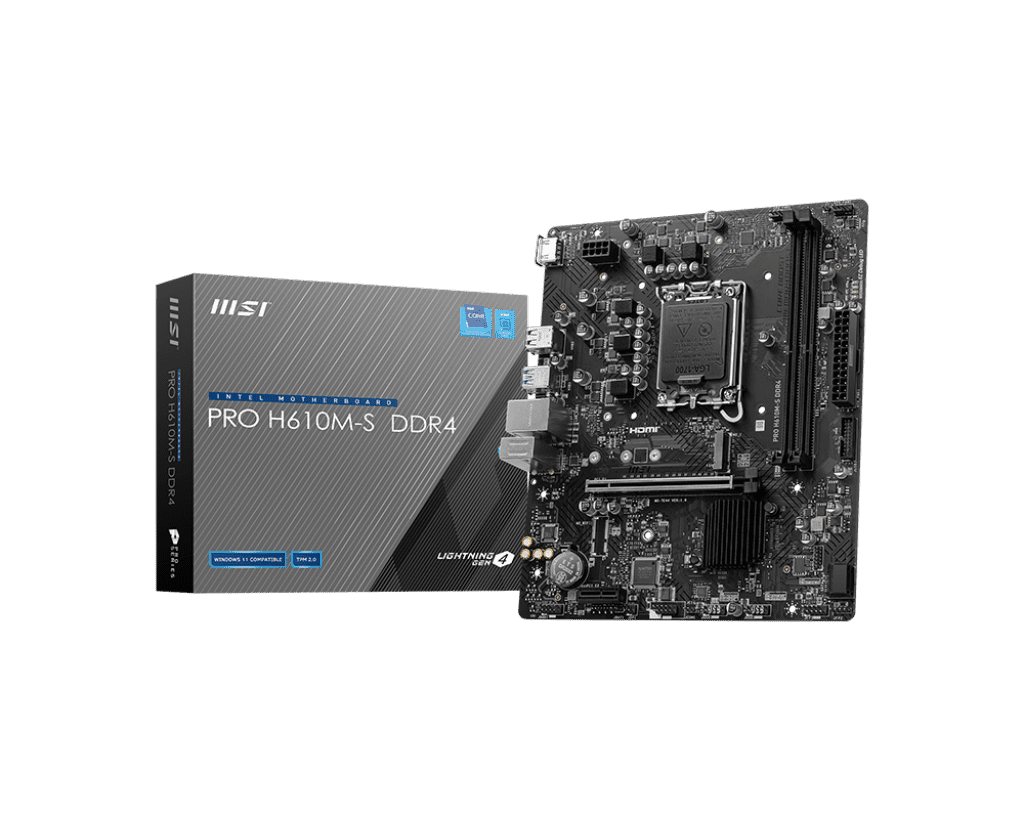

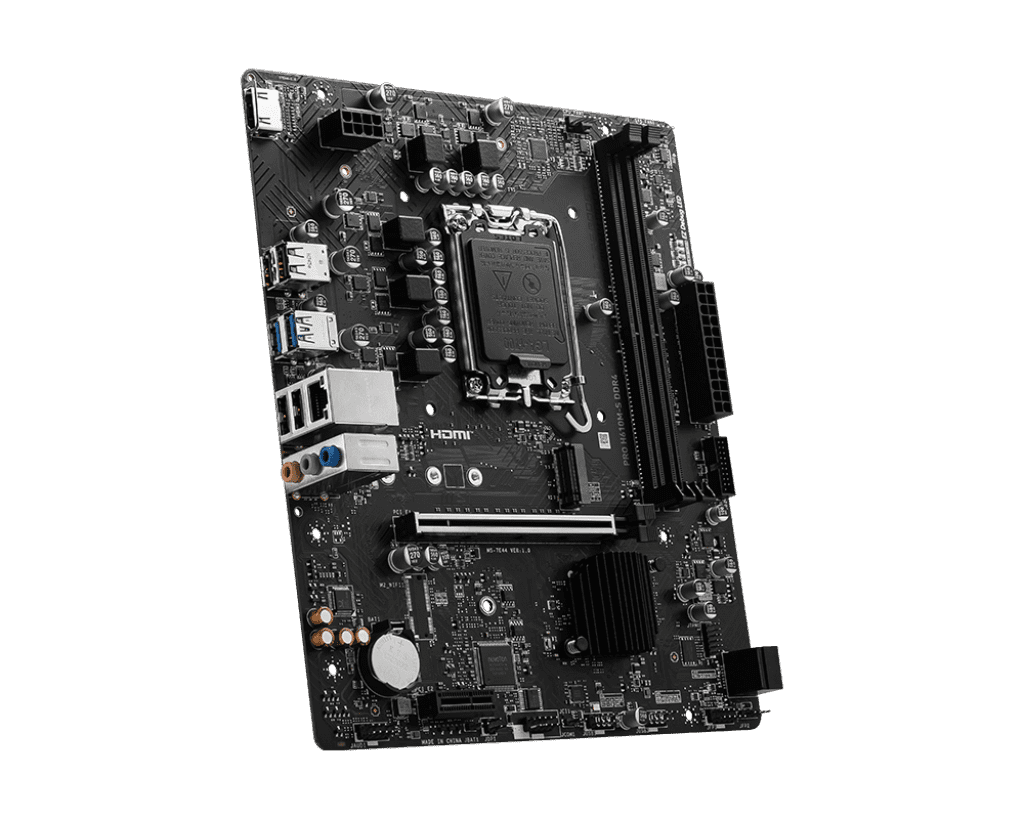

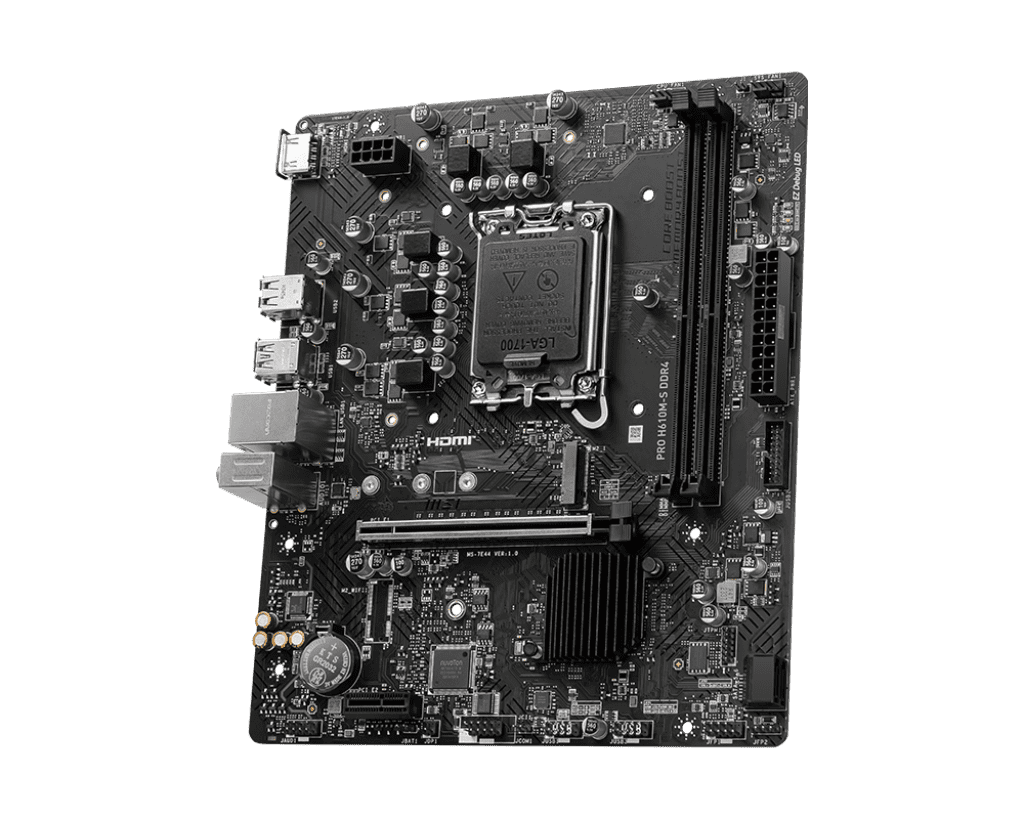

MSI Pro H610M‑S DDR4 Intel Motherboard – LGA1700 mATX

Dependable Build with the MSI Pro H610M‑S DDR4 Motherboard

The MSI Pro H610M‑S DDR4 motherboard delivers essential performance for everyday computing, casual gaming, and professional use. Built on the Intel H610 chipset, the MSI Pro H610M‑S DDR4 motherboard supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors with the LGA1700 socket, giving you compatibility for modern Intel builds. With dual‑channel DDR4 memory support up to 64 GB, this board balances speed and efficiency for multitasking and responsiveness.

Memory and Storage Flexibility

Equipped with two DDR4 DIMM slots, the MSI Pro H610M‑S DDR4 motherboard supports a wide range of memory speeds up to 3200 MHz (JEDEC) to help optimize system performance. The board also includes a PCIe 3.0 x4 M.2 slot for NVMe SSDs and two SATA 6 Gb/s ports for additional storage options.

Connectivity and Expansion Options

This motherboard features a PCIe 4.0 x16 slot for discrete graphics cards and a PCIe 3.0 x1 slot for expansion cards. Integrated HDMI 1.4 with HDR support gives display output when paired with a compatible processor with integrated graphics. Realtek Gigabit LAN ensures stable wired networking for downloads, streaming, and online productivity.

Practical Design and Compatibility

With onboard debug LEDs and core power design enhancements, the MSI Pro H610M‑S DDR4 motherboard simplifies installation and troubleshooting. Its compact micro‑ATX form factor fits a variety of PC cases, making it suitable for budget builds, home office systems, and entry‑level gaming rigs.

SPECIFICATIONS

• Chipset: Intel H610 Express Chipset
• CPU Socket: Intel LGA1700; supports 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron processors
• Form Factor: Micro‑ATX (~200 mm × 236.16 mm)
• Memory: 2× DDR4 DIMM slots; up to 64 GB; DDR4 1866–3200 MHz (JEDEC); dual‑channel
• PCIe Slots: 1× PCIe 4.0 x16; 1× PCIe 3.0 x1
• Storage: 1× M.2 PCIe 3.0 x4 (2280/2260/2242); 2× SATA 6 Gb/s
• Onboard Graphics: HDMI 1.4 with HDR (max 4K @30 Hz, with supported CPU)
• Audio: Realtek® ALC897 Codec; 7.1‑Channel High Definition Audio
• LAN: Realtek® RTL8111H Gigabit LAN

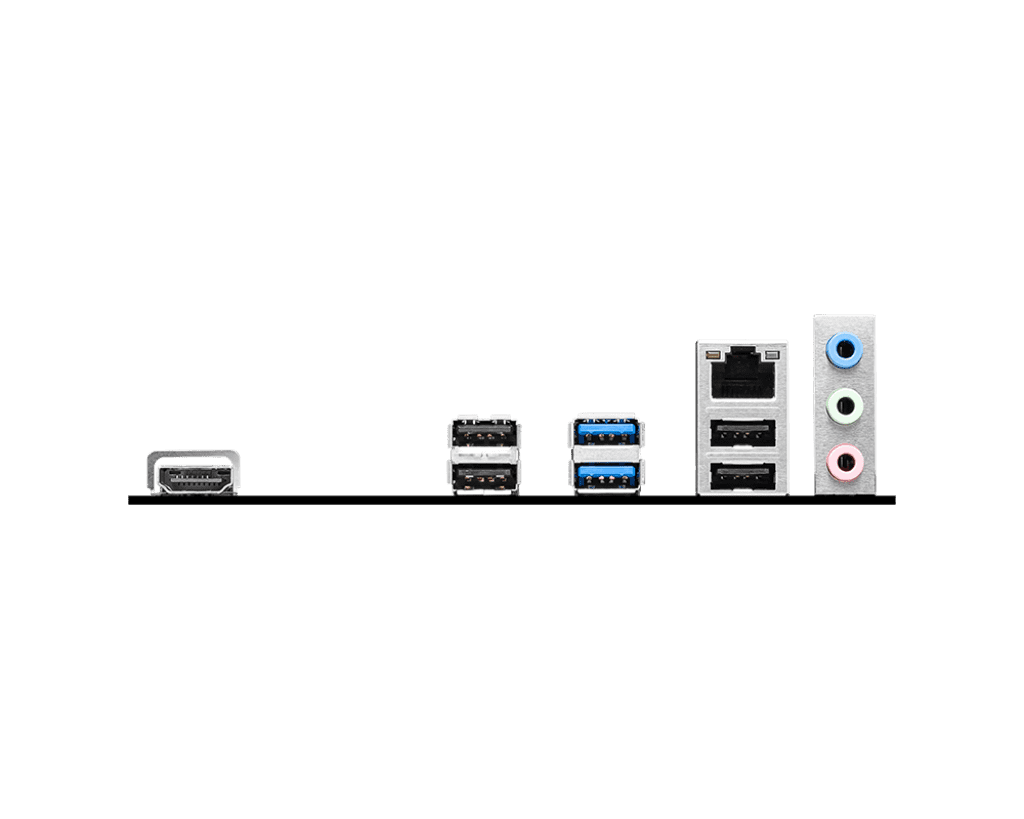

• USB: Rear: USB 2.0 & USB 5 Gbps Type‑A; Front: USB 2.0 & USB 5 Gbps Type‑A headers
• Internal Headers: Power (ATX_PWR, CPU_PWR), CPU/System Fan, Front Panel, Front Audio, COM, TPM 2.0 header
• Debug: 4× EZ Debug LEDs
• Operating System: Windows 10/11 64‑bit support
