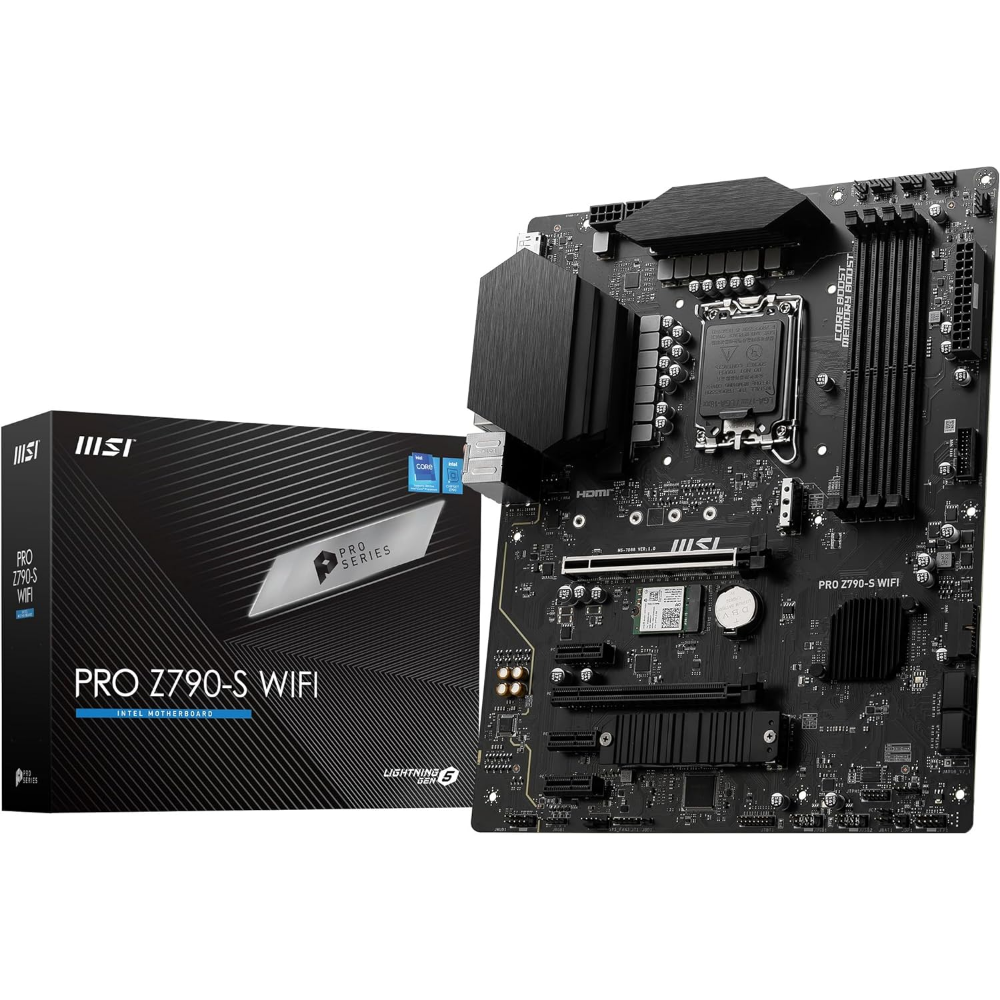

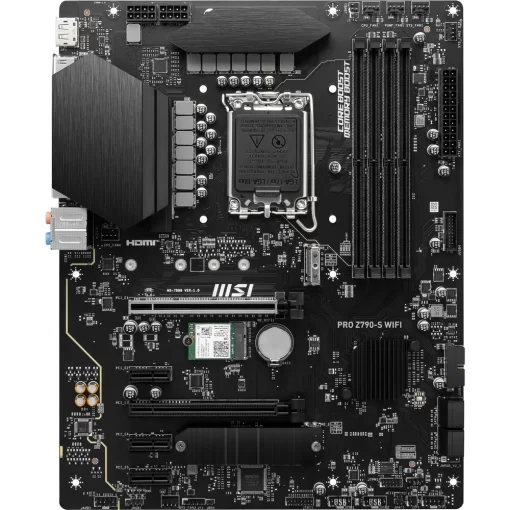

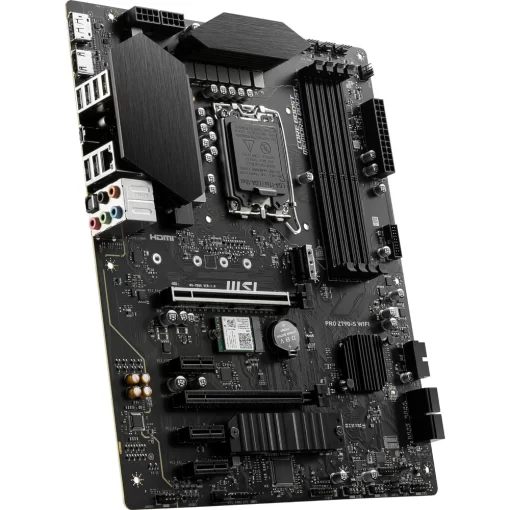

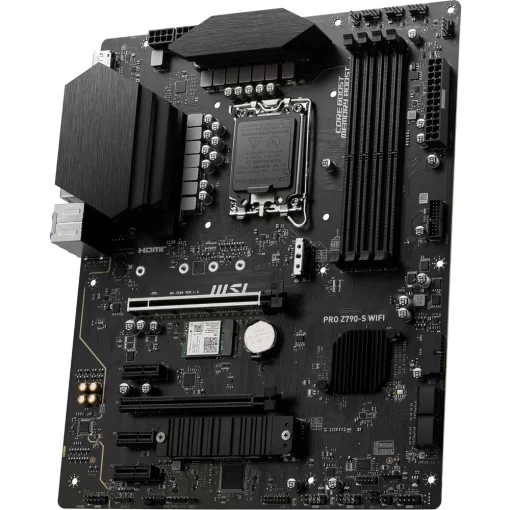

PRO Z790‑S WiFi DDR5 Motherboard – MSI Intel LGA1700 Board

The PRO Z790‑S WiFi motherboard provides strong performance and modern networking support for Intel® LGA1700 desktops. This MSI board supports 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. Therefore, it is well‑suited for productivity, multimedia, and casual gaming setups.

Fast DDR5 Memory and System Expansion

This MSI PRO Z790‑S board supports four DDR5 DIMM slots with dual‑channel memory up to 6600+ MHz (OC), improving responsiveness and multitasking. Moreover, PCIe 5.0 x16 expands future‑proof graphics support. In addition, two M.2 Gen4 x4 slots enable ultra‑fast SSD storage for quick system boots and application loads.

Networking and Connectivity Features

This board integrates Intel® Wi‑Fi 6E and Bluetooth 5.3 for fast wireless connections. Furthermore, Realtek® RTL8125BG 2.5 Gbps LAN delivers reliable wired networking for streaming and large file transfers. Meanwhile, USB 3.2 Gen2x2 Type‑C and multiple USB‑A ports support high‑speed peripherals and external storage.

Professional‑Class Build and Cooling

MSI equips this board with a 12+1+1 Duet Rail Power System and dual 8‑pin CPU connectors for stable power delivery. Plus, extended heatsinks and M.2 Shield Frozr help maintain optimal temperatures under continuous workloads. Therefore, system stability improves even under sustained use.

• SPECIFICATIONS
  Manufacturer: MSI
  Model: PRO Z790‑S WiFi DDR5
  Form Factor: ATX (243.84 × 304.8 mm)
  CPU Socket: Intel® LGA1700 (12th/13th/14th Gen support)
  Chipset: Intel® Z790 Express
  Memory: 4 × DDR5 DIMM, Dual‑Channel, up to 6600+ MHz (OC), 256 GB max
  Memory Features: Intel XMP 3.0 support, non‑ECC unbuffered
  Expansion Slots: 1 × PCIe 5.0 x16, 1 × PCIe 3.0 x16 (x4 mode), 3 × PCIe 3.0 x1
  Storage: 2 × M.2 PCIe 4.0 x4, 4 × SATA 6 Gb/s, RAID 0/1/5/10
  Networking: Intel® Wi‑Fi 6E, Bluetooth 5.3, Realtek® RTL8125BG 2.5 Gb LAN
  Audio: Realtek® ALC897 Codec, 7.1‑Channel High‑Definition Audio with S/PDIF
  Rear I/O: DisplayPort 1.4, HDMI™ 1.4 (4K output with iGPU), USB 3.2 Gen2x2 Type‑C, USB 3.2 Gen1, USB 2.0, LAN, audio jacks
  BIOS: UEFI with Click BIOS 5, EZ Debug LED
  Cooling: Extended heatsinks, M.2 Shield Frozr, multiple fan headers
  Special Features: Duet Rail Power System, Core Boost, Memory Boost, PCIe Steel Armor
