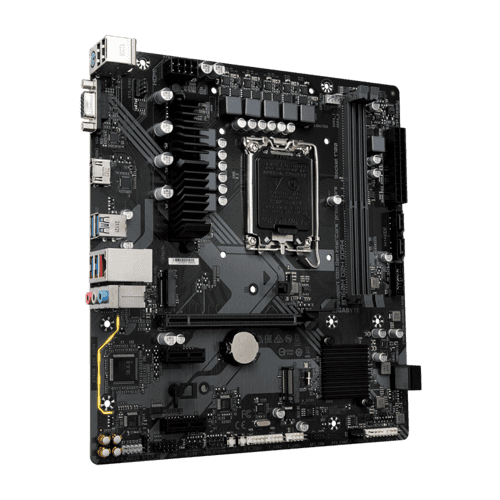

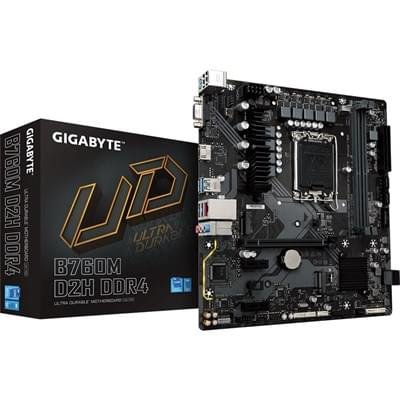

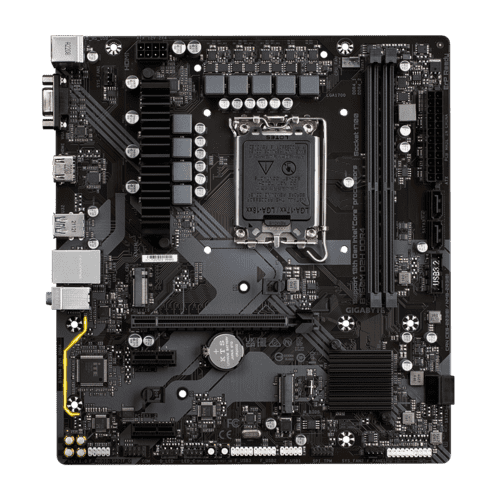

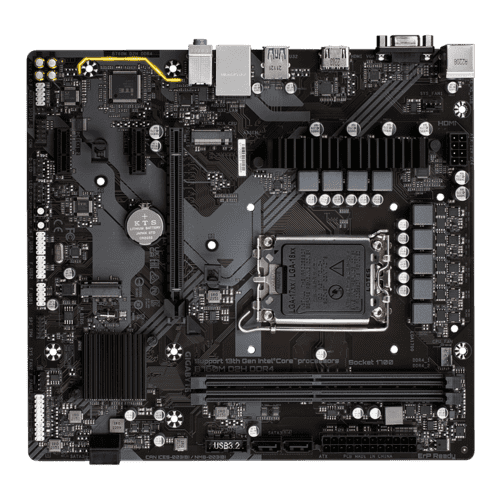

B760M D2H DDR4 Motherboard – Gigabyte Intel LGA1700 Board

he B760M D2H DDR4 motherboard delivers dependable performance and modern connectivity for Intel LGA1700 desktop builds. It supports Intel® 12th, 13th, and 14th Gen Core™, Pentium® Gold, and Celeron® processors. Therefore, it is suitable for mainstream desktops, small gaming rigs, and productivity systems.

Stable DDR4 Memory and Dual‑Channel Support

This board supports up to two DDR4 DIMM slots with speeds up to 5333 MT/s (OC) using Extreme Memory Profile (XMP). Moreover, dual‑channel memory architecture improves system responsiveness for both everyday computing and heavier workloads.

PCIe 4.0 Expansion and Ultra‑Fast Storage

The Gigabyte B760M D2H DDR4 motherboard features a PCIe 4.0 x16 slot for discrete graphics or PCIe storage, plus two PCIe 3.0 x1 slots for add‑in cards. Additionally, dual M.2 PCIe 4.0 x4 connectors and four SATA 6 Gb/s ports provide flexible high‑speed storage options. As a result, boot times and large file transfers are significantly faster.

Networking and I/O Connectivity

Integrated Realtek® 2.5GbE LAN delivers reliable wired networking with up to 2.5 Gbps transfer speeds. Meanwhile, HDMI and D‑Sub display outputs support integrated graphics when paired with a compatible Intel CPU. Likewise, multiple USB 3.2 Gen1 and USB 2.0 ports offer connectivity for peripherals.

Smart Cooling and DIY‑Friendly Features

Furthermore, Gigabyte Smart Fan 6 provides multiple temperature sensors and hybrid fan headers for precise cooling control. The onboard Q‑Flash Plus button allows BIOS updates without a CPU, memory, or graphics card installed.

• SPECIFICATIONS
  Manufacturer: Gigabyte
  Model: B760M D2H DDR4 (Rev. 1.0)
  Form Factor: microATX (244 × 225 mm)
  CPU Socket: Intel LGA1700; supports 12th/13th/14th Gen Intel Core™, Pentium® Gold, Celeron®
  Chipset: Intel® B760 Express Chipset
  Memory: 2 × DDR4 DIMM, Dual‑Channel; up to 64 GB; up to 5333 MT/s (OC); XMP support
  Expansion Slots: 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1
  Storage: 2 × M.2 PCIe 4.0 x4, 4 × SATA 6 Gb/s (RAID 0/1/5/10)
  Networking: Realtek® 2.5GbE LAN
  Audio: Realtek® High Definition Audio; 2/4/5.1/7.1‑channel with S/PDIF
  Rear I/O: PS/2 combo, HDMI, D‑Sub, 4 × USB 3.2 Gen1, 2 × USB 2.0/1.1, RJ‑45, audio jacks
  Internal I/O: 24‑pin ATX, 8‑pin CPU power, Fan headers, RGB and addressable LED headers, front panel USB headers
  BIOS: AMI UEFI with Q‑Flash Plus
  Cooling: Smart Fan 6 with multiple temperature/fan control options
  Features: EZ‑Latch PCIe quick release, GCC support, Smart Fan controls
