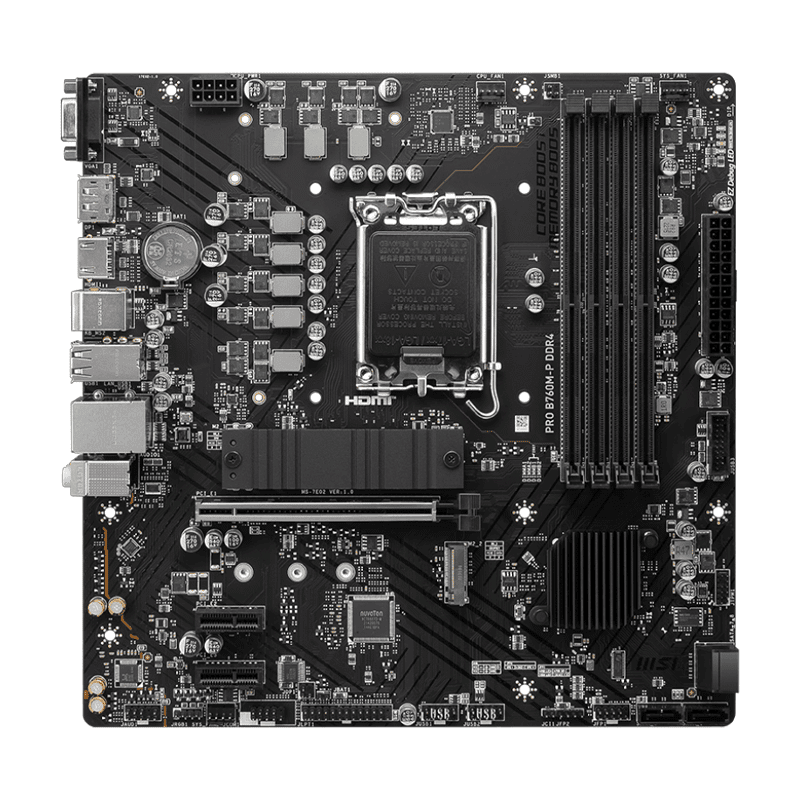

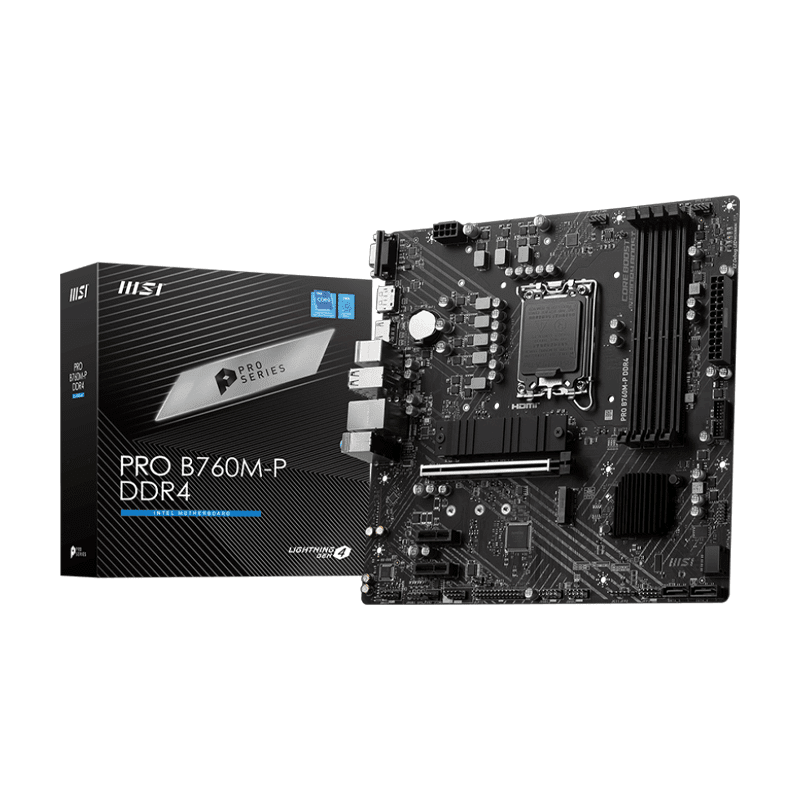

B760M‑P DDR4 Motherboard – MSI Intel LGA1700 Board

The B760M‑P DDR4 motherboard offers a stable and efficient foundation for Intel LGA1700 systems. It supports 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. Therefore, this MSI board handles daily computing, productivity, and basic creative tasks with ease.

Dual‑Channel DDR4 Memory Support

This board features four DDR4 DIMM slots supporting up to 128 GB of memory. Moreover, it achieves overclocked speeds up to 4800 MHz+ with Intel® XMP profiles. As a result, multitasking and memory‑dependent applications run smoothly.

Flexible Expansion and Storage

The MSI B760M‑P DDR4 motherboard includes one PCIe 4.0 x16 slot for graphics cards, and two PCIe 4.0 x1 slots for add‑in cards. Additionally, two M.2 slots support high‑speed PCIe 4.0 SSDs. Consequently, boot times and data transfer speeds are faster than traditional storage.

Display and Connectivity Features

For video output, the board offers HDMI™ 1.4 and DisplayPort 1.4, enabling high‑definition displays with supported CPUs. Meanwhile, Realtek® RTL8111H Gigabit LAN provides reliable wired networking. Furthermore, multiple USB ports — including USB 3.2 Gen2 Type‑C — support a range of peripherals.

Onboard Enhancements and Monitoring

In addition, MSI includes features like M.2 Shield Frozr, Audio Boost, and EZ Debug LEDs for easier setup and monitoring. Smart fan headers help maintain stable temperatures under load.

• SPECIFICATIONS
  Manufacturer: MSI
  Model: PRO B760M‑P DDR4
  Form Factor: micro‑ATX
  CPU Socket: Intel® LGA1700
  Supported CPUs: Intel® 12th / 13th / 14th Gen Core™, Pentium® Gold, Celeron®
  Chipset: Intel® B760
  Memory: 4 × DDR4 DIMM, Dual‑Channel, up to 128 GB; up to 4800 MHz+ (OC)
  Expansion Slots: 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1
  Storage: 2 × M.2 slots (PCIe 4.0 x4), 4 × SATA 6 Gb/s; RAID support
  Networking: Realtek® RTL8111H Gigabit LAN
  Audio: Realtek® ALC897 Codec, 7.1‑Channel HD Audio

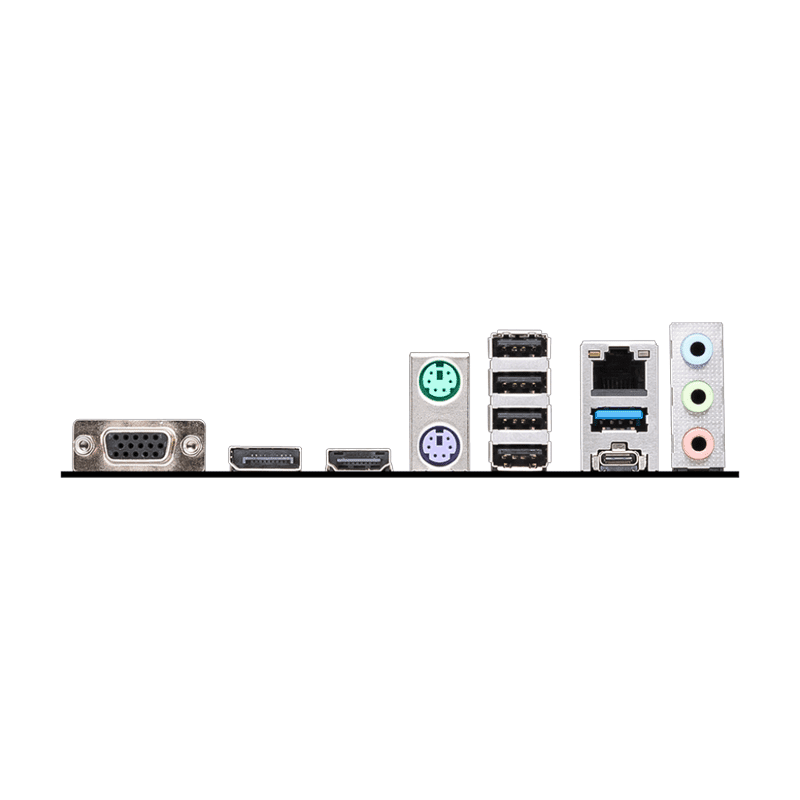

  Rear I/O: HDMI™ 1.4, DisplayPort 1.4, USB 3.2 Gen2 Type‑C, USB 3.2 Gen1, USB 2.0, LAN, audio jacks
  Internal I/O: CPU / System fan headers, USB headers, front panel connectors
  BIOS: UEFI with EZ Debug LEDs
